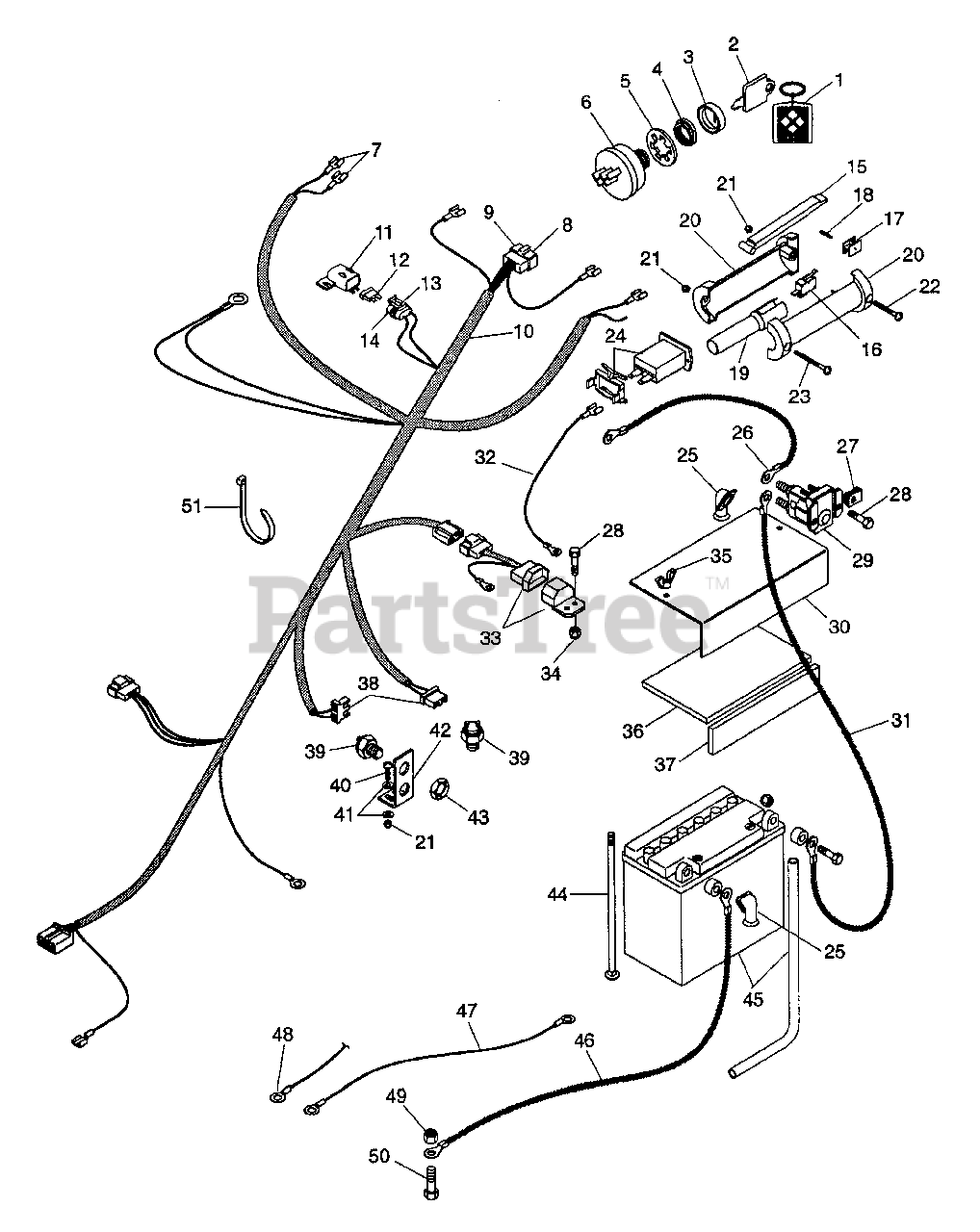

988063 - Gravely Pro 200 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton (SN: 000101 & Above) > Parts Diagrams (12) > Electrical System - 16 H.P. And 18 H.P. Units (Electric Start)

  • Title
03490000

1

Key Chain

Part# 03490000

OEM Warranty Repair Part for Gravely

Not available

03489900

2

Ignition Switch Key

Part# 03489900 (Superseded to 02460700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $7.77

07517700

3

Cap, Ignition Switch

Part# 07517700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06517300

4

Nut-Panel .625-32

Part# 06517300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

06306400

5

Washer-Lock .625

Part# 06306400 (Superseded to 06306900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

08850800

6

Switch, Ignition w/Ground

Part# 08850800 (Superseded to 52709300)

Note: (Model 007)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $67.02

08869000

6

Switch, Ignition w/Ground

Part# 08869000 (Superseded to 58801200)

Note: (Model 063)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $61.43

08828400

7

Terminal, Female

Part# 08828400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

08540000

8

Terminal

Part# 08540000 (Superseded to 08540001)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

20645100

9

Connector

Part# 20645100 (Superseded to 20645101)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

08857600

10

Harness, Wiring 18 Kohler

Part# 08857600

Note: (Model 007)

OEM Warranty Repair Part for Gravely

Not available

08875600

10

Wire Harness, Pro-200

Part# 08875600 (Superseded to 58800600)

Note: (Model 063)

OEM Warranty Repair Part for Gravely

Not available

08893700

10

Wire Harness, Pro-200

Part# 08893700 (Superseded to 08893701)

Note: (Model 072)

OEM Warranty Repair Part for Gravely

Not available

20822800

11

Cover

Part# 20822800

OEM Warranty Repair Part for Gravely

Not available

08961800

12

Fuse, 25 AMP

Part# 08961800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

20822900

13

Terminal, For 14-16 Ga Wire

Part# 20822900

OEM Warranty Repair Part for Gravely

Not available

20822700

14

Assembly, Connector Weather Tight

Part# 20822700

OEM Warranty Repair Part for Gravely

Not available

08602200

15

Lever

Part# 08602200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $26.78

08828300

16

Switch

Part# 08828300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $20.07

08855100

17

Holder, Switch

Part# 08855100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

05808100

18

Pin-Roll .094 x .750

Part# 05808100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

08853100

19

Insert, Handlebar

Part# 08853100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

08870200

20

Handle, Left Hand and Right Hand

Part# 08870200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

06506500

21

Nut-Locking 10-24

Part# 06506500 (Superseded to 06536000)

OEM Warranty Repair Part for Gravely

Not available

06111100

22

Screw-Machine 10-24 x .625

Part# 06111100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06113200

23

Screw-Machine 10-24 x 1.50

Part# 06113200 (Superseded to 06118300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

03492700

24

Hour Meter

Part# 03492700 (Superseded to 03966800)

OEM Warranty Repair Part for Gravely

Not available

03384700

25

Boot, Insulator

Part# 03384700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

08805700

26

Cable, Solenoid to Starter

Part# 08805700

OEM Warranty Repair Part for Gravely

Not available

03492500

26

Cable, Starter

Part# 03492500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $20.07

07016800

27

Nut-Speed .25-20

Part# 07016800

OEM Warranty Repair Part for Gravely

Not available

05908200

28

Bolt-Hex .25-20 x .75 Grade 5

Part# 05908200 (Superseded to 05946800)

OEM Warranty Repair Part for Gravely

Not available

03492300

29

Solenoid

Part# 03492300 (Superseded to 03551000)

Note: (Models 007, 063)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $16.71

08835800

30

Cover, Battery

Part# 08835800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $60.82

08816700

31

Cable, Battery to Solenoid

Part# 08816700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

08801600

32

Wire, Instrument Panel

Part# 08801600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

58801000

33

Kit, Interlock Module, Electric

Part# 58801000

Note: (Model 007)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $134.10

08885400

33

Adapter Harness, Interlock

Part# 08885400

Note: (Model 007)

OEM Warranty Repair Part for Gravely

Not available

08885800

33

Module, Interlock, Electric

Part# 08885800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $67.02

58800800

33

Kit, Interlock Module, Electric

Part# 58800800

Note: (Model 063)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $128.51

08885300

33

Adapter Harness, Interlock

Part# 08885300 (Superseded to 08885301)

Note: (Model 063)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

06506600

34

Nut-Locking-Nylon .250-20 Grade 2

Part# 06506600 (Superseded to 06531000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

06506400

35

Nut-Wing .250-20

Part# 06506400 (Superseded to 06537500)

OEM Warranty Repair Part for Gravely

Not available

08803400

36

Pad, Battery

Part# 08803400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

08800600

37

Pad, Battery

Part# 08800600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

Connector, 2-Wire Switch

Connector, 2-Wire Switch

Part# Connector, 2-Wire Switch

Not available

08550000

38

Connector, 2-Wire Switch

Part# 08550000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

08803700

39

Switch-Neutral Start N.C.

Part# 08803700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

06111200

40

Screw-Machine 10-24 x .750

Part# 06111200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

06429800

41

Washer-Flat-Steel .188 x .438 x .049

Part# 06429800 (Superseded to 06409200)

OEM Warranty Repair Part for Gravely

Not available

08803600

42

Bracket-Interlock Switch

Part# 08803600

OEM Warranty Repair Part for Gravely

Not available

07015100

43

Nut-Stamped .56-18

Part# 07015100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06218700

44

Bolt-Round Head Square Neck .25-20 x 7.00

Part# 06218700 (Superseded to 06220400)

OEM Warranty Repair Part for Gravely

Not available

78801800

45

Battery, 12 Volt

Part# 78801800

OEM Warranty Repair Part for Gravely

Not available

08840400

46

Cable, Negative Battery

Part# 08840400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $16.71

08818400

47

Wire, Ground

Part# 08818400

OEM Warranty Repair Part for Gravely

Not available

08805800

48

Terminal, Ring Tongue

Part# 08805800

OEM Warranty Repair Part for Gravely

Not available

06506200

49

Nut-Locking- Nylon .312-18 Grade 2

Part# 06506200 (Superseded to 06530200)

OEM Warranty Repair Part for Gravely

Not available

05916900

50

Bolt-Hex .31-18 x 2.25 Grade 5

Part# 05916900 (Superseded to 05963700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

07519900

51

Tie Wrap, Black

Part# 07519900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30
