988066 - Gravely Pro 250 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton (SN: 000101 & Above)

Pro 250 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton

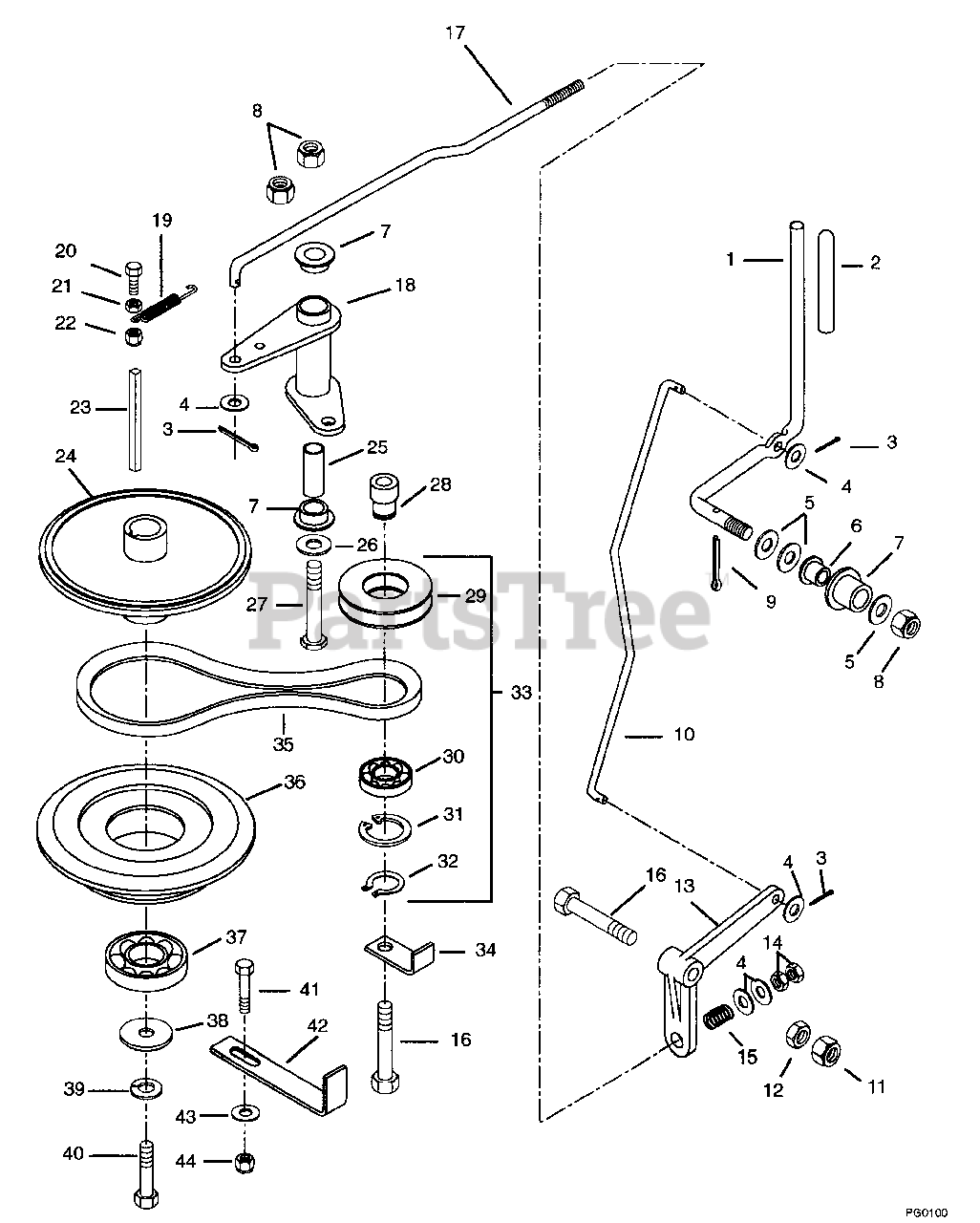

988066 - Gravely Pro 250 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton (SN: 000101 & Above) > Parts Diagrams (11) > PTO CLUTCH LINKAGE

  • Title
08878800

1

Lever, PTO Actuating

Part# 08878800

OEM Warranty Repair Part for Gravely

Not available

07528200

2

Grip, PTO Lever

Part# 07528200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

06700100

3

Pin-Cotter .09 x .75

Part# 06700100 (Superseded to 06706900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06404300

4

Washer-Flat-Steel .406 x .812 x .065

Part# 06404300 (Superseded to 06436200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06430200

5

Washer-Flat-Steel .531 x 1.250 x .100

Part# 06430200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

05521100

6

Bushing-Flange .515 x .750 x .745 x 1.00

Part# 05521100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

05518400

7

Bushing-Flange .762 x 1.0 x .580 x 1.48

Part# 05518400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06512900

8

Nut-Locking-Nylon .50-13 Grade 5

Part# 06512900 (Superseded to 06540600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

06706300

9

Pin-Cotter .188 x 1.25

Part# 06706300 (Superseded to 06712700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

08893000

10

Rod, PTO Control

Part# 08893000

OEM Warranty Repair Part for Gravely

Not available

06525800

11

Nut-Locking .50-13

Part# 06525800 (Superseded to 06536300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06501700

12

Nut-Jam .50-13 Grade 2

Part# 06501700 (Superseded to 06529300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

08844600

13

Lever, PTO Clutch

Part# 08844600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $88.27

06501800

14

Nut-Hex .375-16 Grade 2

Part# 06501800 (Superseded to 06529400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

08327000

15

Spring-Compression .125 x .78 x 1.00

Part# 08327000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $11.12

05914400

16

Bolt-Hex .50-13 x 2.50 Grade 5

Part# 05914400 (Superseded to 05966600)

OEM Warranty Repair Part for Gravely

Not available

08892900

17

Rod, PTO Clutch Actuating

Part# 08892900

OEM Warranty Repair Part for Gravely

Not available

08892500

18

Weldment, PTO Idler Arm

Part# 08892500

OEM Warranty Repair Part for Gravely

Not available

08331900

19

Spring-Tension .06 x .50 x 3.5

Part# 08331900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

05918100

20

Bolt-Hex .31-18 x 1.00 Grade 5

Part# 05918100 (Superseded to 05946900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06501500

21

Nut-Hex .312-18 Grade 2

Part# 06501500 (Superseded to 06529200)

OEM Warranty Repair Part for Gravely

Not available

06506200

22

Nut-Locking-Nylon .312-18 Grade 2

Part# 06506200 (Superseded to 06530200)

OEM Warranty Repair Part for Gravely

Not available

06607600

23

Key-Square .250 x 3.60 x .250

Part# 06607600

OEM Warranty Repair Part for Gravely

Not available

08844400

24

Hub, PTO Clutch

Part# 08844400

OEM Warranty Repair Part for Gravely

Not available

05522500

25

Bushing, .560 x .745 x 4.20

Part# 05522500

OEM Warranty Repair Part for Gravely

Not available

06429500

26

Washer-Flat-Steel .531 x 1.062 x .095

Part# 06429500 (Superseded to 06441900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

05940500

27

Bolt-Hex .50-13 x 5.00

Part# 05940500 (Superseded to 05962200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

08810700

28

Bushing, Flange .515 x .787 x 1.41

Part# 08810700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.48

08744300

29

Sheave, Idler

Part# 08744300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $86.03

05425100

30

Bearing-Ball 1.85 x .787 x .55

Part# 05425100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $33.48

05713100

31

Ring-Retaining-Internal 2.054 x .062

Part# 05713100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

05715200

32

Ring-Retaining Truarc

Part# 05715200 (Superseded to 00102214)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

08810900

33

Assembly, Idler Sheave

Part# 08810900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $223.54

08810800

34

Guard, Belt

Part# 08810800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

07229900

35

V-Belt A-Section

Part# 07229900

OEM Warranty Repair Part for Gravely

Not available

08814000

36

Sheave, Mower Clutch

Part# 08814000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $279.44

05424600

37

Bearing-Ball 1.57 x 3.15 x .71

Part# 05424600 (Superseded to 05420900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $67.02

06426400

38

Washer-Special .469 x 2.000 x .250

Part# 06426400 (Superseded to 06443600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $6.65

06305000

39

Washer-Lock .44 Reg

Part# 06305000 (Superseded to 06309300)

OEM Warranty Repair Part for Gravely

Not available

05953100

40

Bolt-Hex .44-20 x 2.25 Grade 5

Part# 05953100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

05914500

41

Bolt-Hex .38-16 x 1.00 Grade 5

Part# 05914500 (Superseded to 05948700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

08893100

42

Guide, V-Belt PM-250

Part# 08893100

OEM Warranty Repair Part for Gravely

Not available

06404300

43

Washer-Flat-Steel .406 x .812 x .065

Part# 06404300 (Superseded to 06436200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06513500

44

Nut-Locking-Nylon .375-16 Grade 2

Part# 06513500 (Superseded to 06535800)

OEM Warranty Repair Part for Gravely

Not available
