988066 - Gravely Pro 250 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton (SN: 000101 & Above)

Pro 250 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton

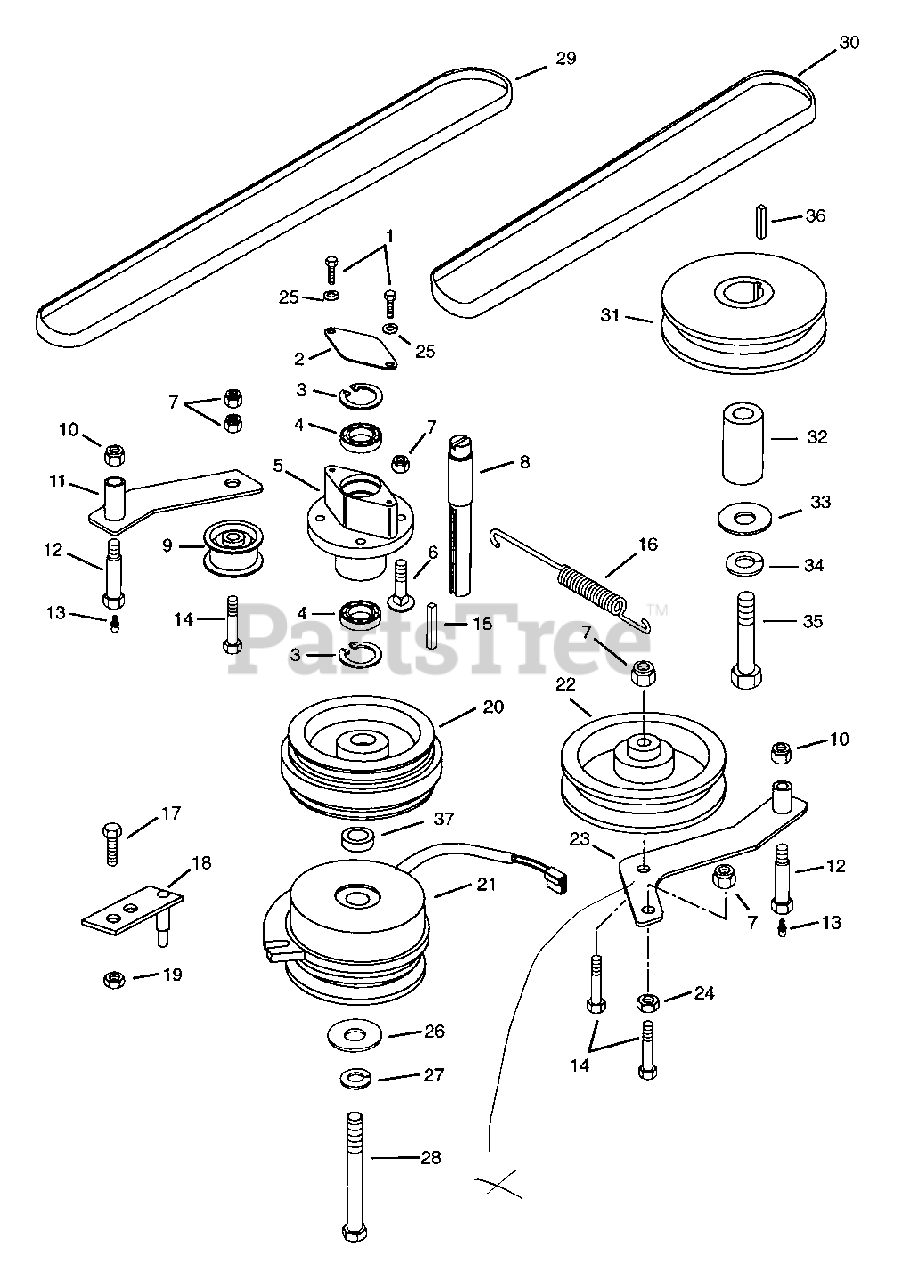

988066 - Gravely Pro 250 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton (SN: 000101 & Above) > Parts Diagrams (11) > PTO Drive

  • Title
05929500

1

Bolt-Hex .38-16 x .50 Grade 5

Part# 05929500 (Superseded to 05967000)

OEM Warranty Repair Part for Gravely

Not available

08707500

2

Plate, Cover

Part# 08707500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

05714200

3

Ring-Retaining-Internal 2.210 x .082

Part# 05714200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

05416000

4

Bearing-Ball 1.0 x 2.0 x .56

Part# 05416000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $27.89

08989200

5

Housing

Part# 08989200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $35.72

06204300

6

Bolt-Round Head Square Neck .38-16 x 1.50 Grade 5

Part# 06204300 (Superseded to 06224200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06513500

7

Nut-Locking-Nylon .375-16

Part# 06513500 (Superseded to 06535800)

OEM Warranty Repair Part for Gravely

Not available

08989300

8

Shaft

Part# 08989300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $190.56

07317200

9

Idler-Flat 2.468 x .38

Part# 07317200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

06512900

10

Nut-Locking-Nylon .50-13

Part# 06512900 (Superseded to 06540600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

08888400

11

Transmission Idler

Part# 08888400

OEM Warranty Repair Part for Gravely

Not available

08890700

12

Shoulder Bolt, Idler Pivot

Part# 08890700

OEM Warranty Repair Part for Gravely

Not available

07012700

13

Fitting Lube

Part# 07012700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

05914700

14

Bolt-Hex .38-16 x 2.00 Grade 5

Part# 05914700 (Superseded to 05963300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

06606900

15

Key-Square .248 x 1.25 x .248

Part# 06606900

Note: (066, 067)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

08329000

16

Spring-Tension .113 x .812 x 7.00

Part# 08329000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $20.07

05913500

17

Bot-Hex .31-18 x .75 Grade 5

Part# 05913500 (Superseded to 05947000)

Note: (066, 067)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

08894200

18

Weldment, PTO Clutch Anchor

Part# 08894200

OEM Warranty Repair Part for Gravely

Not available

06506200

19

Nut-Locking-Nylon .312-18

Part# 06506200 (Superseded to 06530200)

Note: (066, 067)

OEM Warranty Repair Part for Gravely

Not available

08887000

20

Sheave, Jackshaft

Part# 08887000

OEM Warranty Repair Part for Gravely

Not available

03357900

21

Clutch, Electric - Warner

Part# 03357900

Note: (066 ,067)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $360.31

07314800

22

Pulley-Idler 4.50 x .380

Part# 07314800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $28.84

08888500

23

Weldment, Main Idler

Part# 08888500

OEM Warranty Repair Part for Gravely

Not available

06501800

24

Nut Hex .375-16

Part# 06501800 (Superseded to 06529400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06300400

25

Washer-Lock .375 x .155

Part# 06300400 (Superseded to 06306500)

OEM Warranty Repair Part for Gravely

Not available

06426400

26

Washer-Special .469 x 2.000 x .250

Part# 06426400 (Superseded to 06443600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $6.65

06305000

27

Washer-Lock .44 Reg.

Part# 06305000 (Superseded to 06309300)

OEM Warranty Repair Part for Gravely

Not available

05953100

28

Bot-Hex .44-20 x 2.25 Grade 5

Part# 05953100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

07227000

29

V-Belt, Engine to Jackshaft

Part# 07227000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $27.89

07227100

30

V-Belt, Jackshaft-Transmission

Part# 07227100

OEM Warranty Repair Part for Gravely

Not available

08886900

31

Sheave, Engine

Part# 08886900

OEM Warranty Repair Part for Gravely

Not available

03487100

32

Bushing, Steel 1.000 x 1.25 x 1.58

Part# 03487100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

06430900

33

Washer-Flat-Steel .438 x 1.375 x .083

Part# 06430900 (Superseded to 06435900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06300500

34

Washer-Lock .438 x .133

Part# 06300500 (Superseded to 06310700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

05920500

35

Bolt-Hex .44-20 x 1.50 Grade 5

Part# 05920500 (Superseded to 05900039)

Note: (066, 067)

OEM Warranty Repair Part for Gravely

Not available

05922100

35

Bolt-Hex Metric 10MM - 1.5 x 30MM

Part# 05922100 (Superseded to 05929100)

Note: (068)

OEM Warranty Repair Part for Gravely

Not available

06602200

36

Key-Square .25 x 1.00 x .25

Part# 06602200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

08890200

37

Spacer, 1.02 x 1.38 x .20

Part# 08890200

OEM Warranty Repair Part for Gravely

Not available
