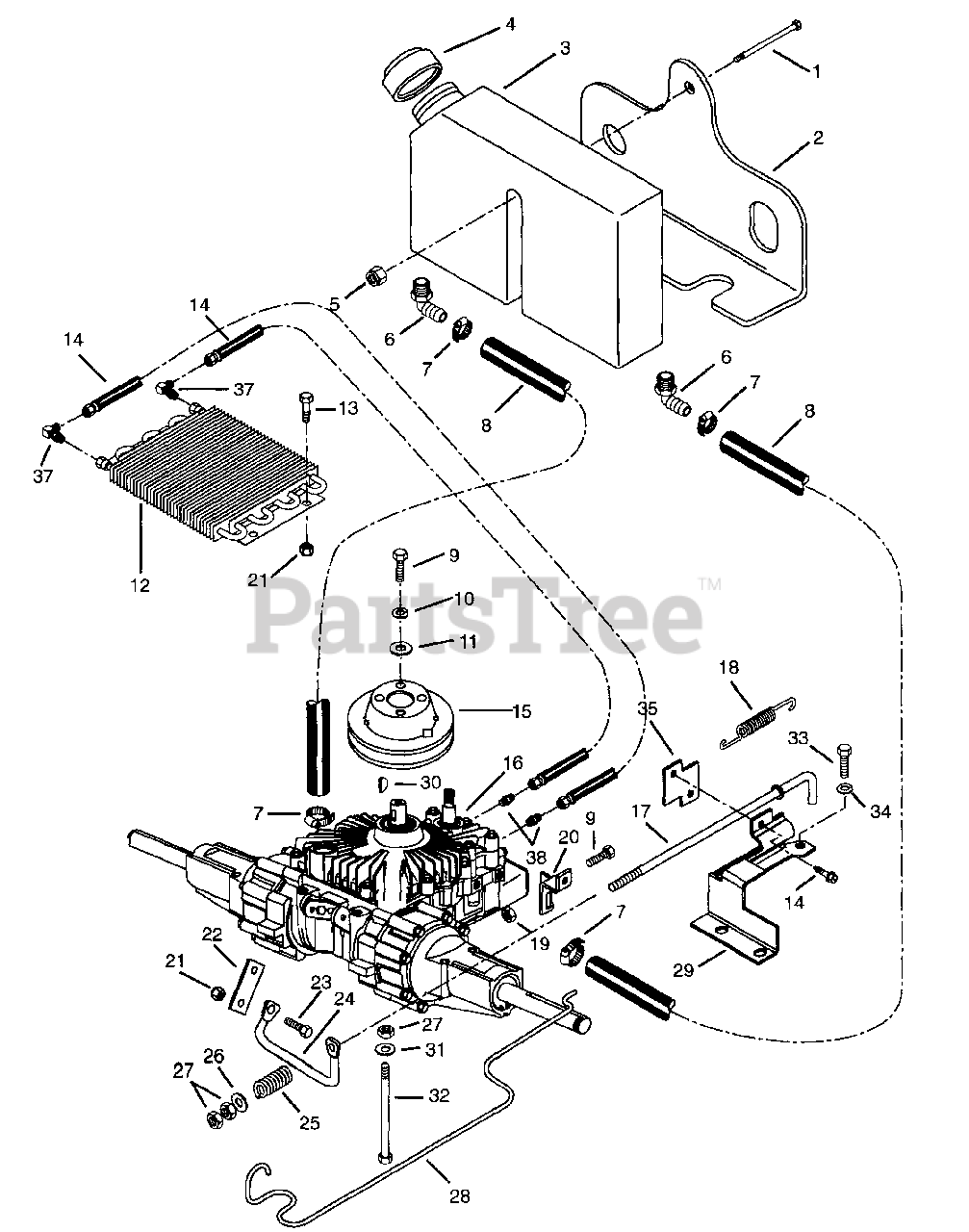

988066 - Gravely Pro 250 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton (SN: 000101 & Above) TRANSMISSION Parts Diagram

Pro 250 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton

TRANSMISSION Parts Diagram

  • Title

1

Gravely 05938000

Bolt-Hex .31-18 x 3.50
(Superseded to 05948000)

$2.99

$

Usually ships in 4-12 days

0

2

Gravely 08889900

Tank Bracket

$14.99

$

Usually ships in 4-12 days

0

3

Gravely 08868400

Tank, Hydraulic

$

$

Not available

4

Gravely 08826200

Cap

$22.99

$

Usually ships in 4-12 days

0

5

Gravely 06506200

Nut-Locking-Nylon .312-18
(Superseded to 06530200)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 07027900

Elbow, Barbed .625

$

$

Not available

7

Gravely 06923500

Clamp

$2.49

$

In Stock, only 4 left!

0

8

Gravely 08890500

Hose

$

$

Not available

9

Gravely 05908200

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05946800)

$1.49

$

In Stock, Qty 11

0

10

Gravely 06300200

Washer-Lock .250 x .077
(Superseded to 06308000)

$0.99

$

Usually ships in 4-12 days

0

11

Gravely 06421400

Washer-Flat-Steel .328 x 1.0 x .094
(Superseded to 06437500)

$3.99

$

In Stock, only 1 left!

0

12

Gravely 08856200

Cooler, Oil

$

$

Not available

13

Gravely 05932000

Bolt-Hex .25-20 x .63

$2.49

$

In Stock, only 1 left!

0

14

Gravely 08978100

Assembly, Hydraulic Hose

$

$

Not available

15

Gravely 03488700

Transaxle Sheave

$

$

Not available

16

Gravely 08890400

Transaxle
(Superseded to 08897100)

$

$

Not available

17

Gravely 08889300

Rod, Parking Brake Pull

$

$

Not available

18

Gravely 08325200

Spring-Tension .051 x .60 x 2.25

$6.49

$

In Stock, only 2 left!

0

19

Gravely 06503200

Nut .250-20
(Superseded to 06533200)

$0.99

$

In Stock, Qty 8

0

20

Gravely 03354900

Arm, Dump Valve

$

$

Not available

21

Gravely 06506600

Nut-Locking-Nylon .250-20
(Superseded to 06531000)

$5.49

$

In Stock, only 2 left!

0

22

Gravely 03352500

Strap

$

$

Not available

23

Gravely 05908300

Bolt-Hex .25-20 x 1.00 Grade 5
(Superseded to 05947700)

$1.99

$

In Stock, Qty 7

0

24

Gravely 08890800

Rod, Brake Pivot

$

$

Not available

25

Gravely 08327000

Spring-Compression

$16.99

$

In Stock, only 4 left!

0

26

Gravely 06404300

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06436200)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06513500

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06535800)

$3.49

$

In Stock, Qty 20+

0

28

Gravely 08889200

Rod, Dump Valve

$

$

Not available

29

Gravely 03352300

Bracket, Brake Rod Pivot

$5.99

$

Usually ships in 4-12 days

0

30

Gravely 06609300

Key Woodruff .19 x .63

$3.49

$

In Stock, Qty 8

0

31

Gravely 06404300

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06436200)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 05935200

Bolt-Hex .38-16 x 3.00
(Superseded to 05957800)

$2.99

$

In Stock, Qty 14

0

33

Gravely 05916800

Bolt-Hex .31-18 x .50 Grade 5

$

$

Not available

34

Gravely 06303600

Washer-Lock .313 x .078
(Superseded to 06308600)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 03352400

Plate, Holding

$5.99

$

Usually ships in 4-12 days

0

36

Gravely 07401500

Screw-Tapping .250-20 x .37
(Superseded to 07411600)

$1.49

$

In Stock, only 1 left!

0

37

Gravely 08901000

Adapter 3903-6-6

$21.99

$

Usually ships in 4-12 days

0

38

Gravely 07017500

Adapter .56-18

$12.99

$

In Stock, only 1 left!

0
