988067 - Gravely Pro 250 Walk-Behind Mower Power Unit, 18hp Kohler CV, Electric Start (SN: 000101 & Above) FUEL SYSTEM Parts Diagram

Pro 250 Walk-Behind Mower Power Unit, 18hp Kohler CV, Electric Start

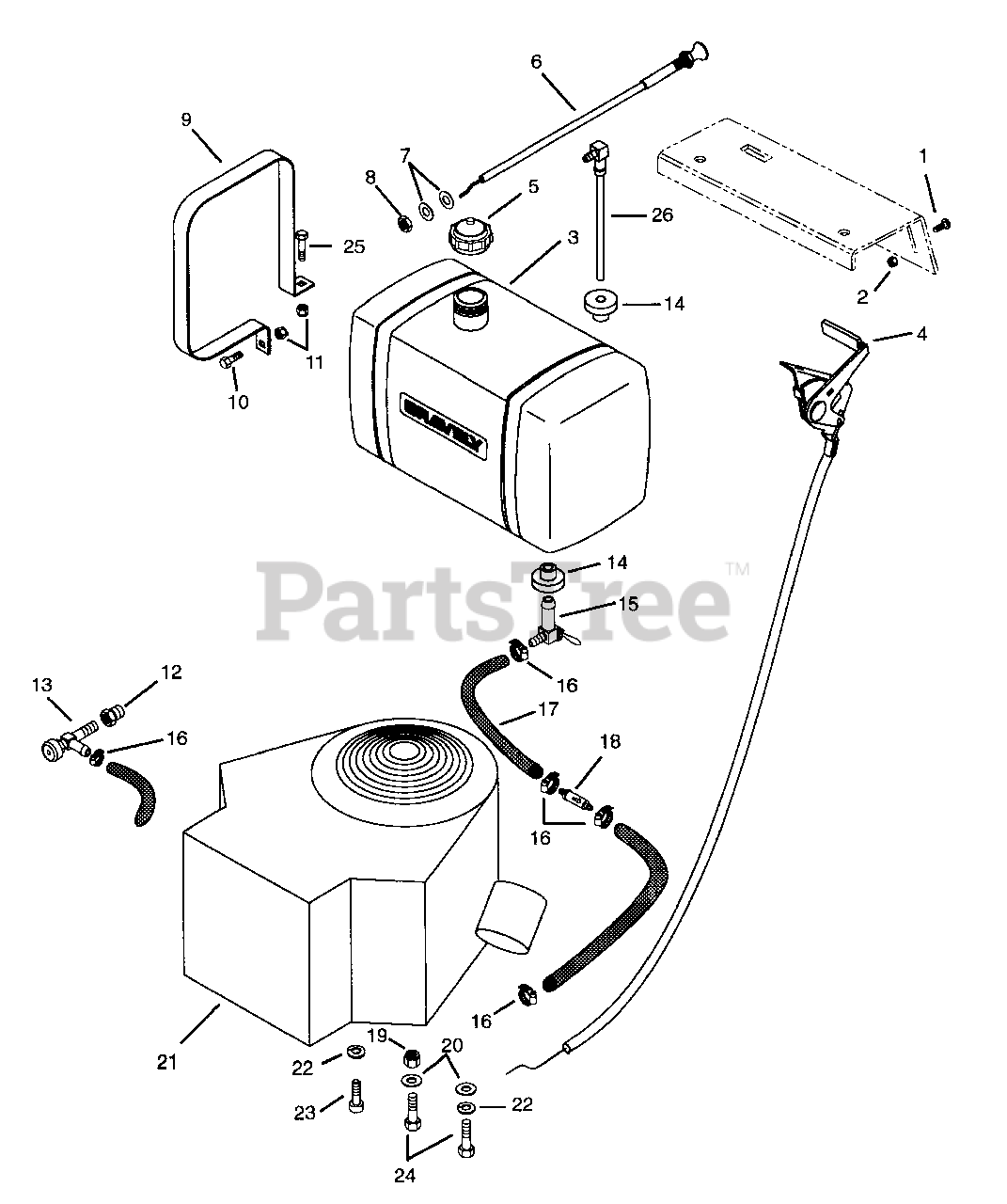

FUEL SYSTEM Parts Diagram

  • Title

1

Gravely 06113300

SCR-MCH 10-32X.50 PHD

$2.99

$

Usually ships in 4-12 days

0

2

Gravely 06502800

NUT-LK 10-32 NY PL
(Superseded to 06539200)

$2.49

$

Usually ships in 4-12 days

0

3

Gravely 08867900

TANK,FUEL GRAVELY PRO

$

$

Not available

Gravely 08893300

FUEL TANK

Note: (Used Only On Model(s): 066,067).

$

$

Not available

4

Gravely 08873100

ASSY, THROTTLE CONTROL/CABLE
(Superseded to 06943600)

Note: (Used Only On Model(s): 068).

$54.99

$

Usually ships in 4-12 days

0

Gravely 06925700

ASS'Y THR CONTR CBL-PRO/BS OHV
(Superseded to 06941000)

Note: (Used Only On Model(s): 066,067).

$67.99

$

Usually ships in 4-12 days

0

5

Gravely 07533400

CAP, FUEL TANK

$23.99

$

Usually ships in 4-12 days

0

6

Gravely 06924800

CONTROL,CHOKE

Note: (Used Only On Model(s): 066,067).

$

$

Not available

7

Gravely 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06518800

NUT JAM .375-24 PL
(Superseded to 06534700)

$2.49

$

In Stock, only 3 left!

0

9

Gravely 08887200

STRAP, GAS TANK, PRO-250

$

$

Not available

10

Gravely 05932000

BLT-HEX .25-20X.63

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 06506600

NUT-LK-NYL .250-20 PL
(Superseded to 06531000)

$5.49

$

In Stock, Qty 12

0

12

Gravely 03493100

ADAPTER, OIL DRAIN

Note: (Used Only On Model(s): 066,067).

$6.49

$

Usually ships in 4-12 days

0

Gravely 08757700

ADPT,OIL DRAIN

Note: (Used Only On Model(s): 068).

$14.99

$

Usually ships in 4-12 days

0

13

Gravely 03493200

COCK, OIL DRAIN
(Superseded to 00429000)

$40.99

$

In Stock, only 3 left!

0

14

Gravely 07511400

BSHG-FLG .375 X 1.062 X .625 R

$3.99

$

In Stock, Qty 20+

0

15

Gravely 08835100

VALVE,BALL SHUT-OFF

Note: (Used Only On Model(s): 068).

$

$

Not available

16

Gravely 06924300

HOSE CLAMP

$7.99

$

Usually ships in 4-12 days

0

17

Gravely 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 08811700

FILTER,FUEL

$10.99

$

Usually ships in 4-12 days

0

19

Gravely 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$1.49

$

In Stock, Qty 5

0

20

Gravely 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

Note: (Used Only On Model(s): 066,067).

$0.99

$

In Stock, Qty 20+

0

21

Gravely 08232600

ENGINE 16 HP B&S

Note: (Used Only On Model(s): 066).

$

$

Not available

Gravely 08242200

ENG,18HP KOHLER CV,OHV,ELEC

Note: (Used Only On Model(s): 067).

$

$

Not available

Gravely 08237500

ENGINE-14 HP KAWASAKI OHV

Note: (Used Only On Model(s): 068).

$

$

Not available

22

Gravely 06303600

WSHR-LK .313X.078 PL MED
(Superseded to 06308600)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 05941500

BLT-HEX M8 X 1.25X30
(Superseded to 05968200)

Note: (Used Only On Model(s): 068).

$4.99

$

Usually ships in 4-12 days

0

24

Gravely 05914000

BLT-HEX .31-18X1.50 PL GR5
(Superseded to 05952400)

Note: (Used Only On Model(s): 066,067).

$1.99

$

In Stock, Qty 15

0

25

Gravely 05908300

BLT-HEX .25-20X1.00 PL GR5
(Superseded to 05947700)

$1.99

$

In Stock, only 2 left!

0

26

Gravely 08893600

FITTING, TANK

Note: (Used Only On Model(s): 066,067).

$21.99

$

Usually ships in 4-12 days

0
