988067 - Gravely Pro 250 Walk-Behind Mower Power Unit, 18hp Kohler CV, Electric Start (SN: 000101 & Above) GEAR SELECTOR Parts Diagram

Pro 250 Walk-Behind Mower Power Unit, 18hp Kohler CV, Electric Start

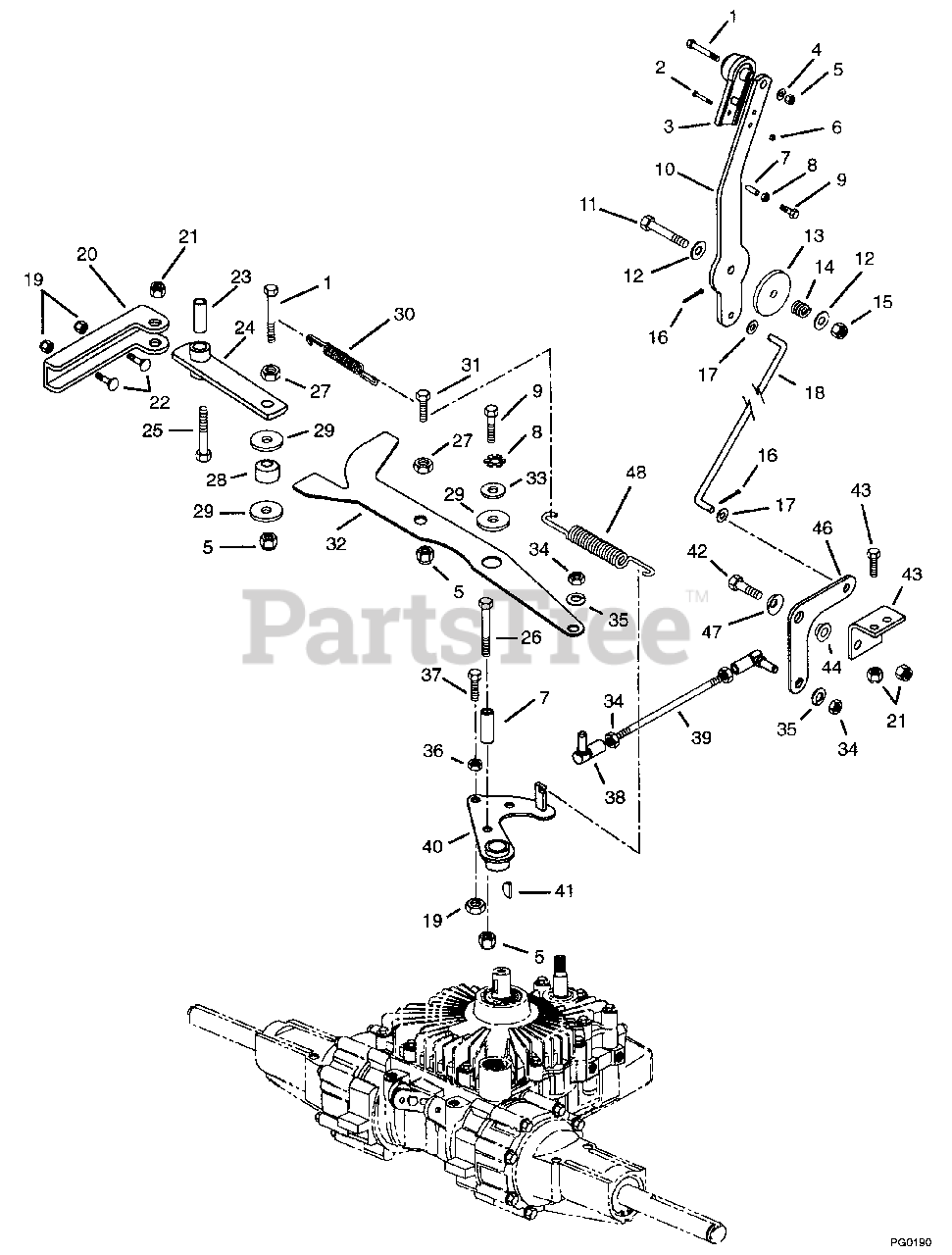

GEAR SELECTOR Parts Diagram

  • Title

1

Gravely 05905000

Bolt-Hex .25-20 x 1.50 Grade 5
(Superseded to 05952500)

$1.99

$

In Stock, only 4 left!

0

2

Gravely 06110700

Screw-Machine 6-32 x .625

$2.49

$

Usually ships in 4-12 days

0

3

Gravely 07525800

Knob

$15.99

$

Usually ships in 4-12 days

0

4

Gravely 06412700

Washer-Flat-Steel .281 x .62 x .065
(Superseded to 06437300)

$0.99

$

In Stock, only 3 left!

0

5

Gravely 06506600

Nut-Locking-Nylon .250-20
(Superseded to 06531000)

$5.49

$

In Stock, only 2 left!

0

6

Gravely 06521100

Nut-Locking-Machine 6-32
(Superseded to 06538900)

$1.49

$

Usually ships in 4-12 days

0

7

Gravely 05513200

Bushing-Sleeve .250 x .375 x .640

$

$

Not available

8

Gravely 06303200

Washer-Lock External .313 x .030

$2.49

$

Usually ships in 4-12 days

0

9

Gravely 05908200

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05946800)

$1.49

$

In Stock, Qty 12

0

10

Gravely 08843700

Lever, Speed Control

$22.99

$

Usually ships in 4-12 days

0

11

Gravely 05914400

Bolt-Hex .50-13 x 2.50 Grade 5
(Superseded to 05966600)

$3.99

$

In Stock, only 3 left!

0

12

Gravely 06429500

Washer-Flat-Steel .531 x 1.062 x .095
(Superseded to 06441900)

$1.49

$

In Stock, only 4 left!

0

13

Gravely 08844900

Disc, Friction Material

$

$

Not available

14

Gravely 08327000

Spring-Compression .125 x .78 x 1.00

$16.99

$

In Stock, only 4 left!

0

15

Gravely 06512900

Nut-Locking-Nylon .50-13
(Superseded to 06540600)

$2.99

$

In Stock, Qty 20+

0

16

Gravely 06700200

Pin-Cotter .09 x 1.00

$0.99

$

Usually ships in 4-12 days

0

17

Gravely 06404300

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06436200)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 08888300

Rod, Speed Control Lever

$

$

Not available

19

Gravely 06513500

Nut-Locking-Nylon .375-16
(Superseded to 06535800)

$3.49

$

In Stock, Qty 20+

0

20

Gravely 08888200

Bracket, Roll Pivot

$

$

Not available

21

Gravely 06506200

Nut-Locking-Nylon .312-18
(Superseded to 06530200)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06207800

Bolt-Round Head Square Neck .38-16 x .75
(Superseded to 06223900)

$1.99

$

In Stock, only 4 left!

0

23

Gravely 08889000

Bushing, Neutral Roller Lever

$

$

Not available

24

Gravely 08889600

Pivot, Arm

$

$

Not available

25

Gravely 05917000

Bolt-Hex .31-18 x 2.00 Grade 5
(Superseded to 05957200)

$1.99

$

In Stock, Qty 12

0

26

Gravely 05905600

Bolt-Hex .25-20 x 1.25 Grade 5
(Superseded to 05947400)

$2.49

$

In Stock, Qty 7

0

27

Gravely 06503200

Nut .250-20
(Superseded to 06533200)

$0.99

$

In Stock, Qty 8

0

28

Gravely 05418000

Bearing Ball Double

$

$

Not available

29

Gravely 06403700

Washer-Flat-Steel .281 x 1.250 x .062

$1.99

$

Usually ships in 4-12 days

0

30

Gravely 08325200

Spring-Tension .051 x .60 x 2.25

$6.49

$

In Stock, only 2 left!

0

31

Gravely 05908300

Bolt-Hex .25-20 x 1.00 Grade 5
(Superseded to 05947700)

$1.99

$

In Stock, Qty 8

0

32

Gravely 08890900

Transmission Arm, Detent

$

$

Not available

33

Gravely 06400700

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06435800)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06503100

Nut - 5/16-24, Hex, Plated
(Superseded to 06529500)

$2.49

$

Usually ships in 4-12 days

0

35

Gravely 06300300

Washer-Lock .312 x .097
(Superseded to 06307400)

$0.99

$

In Stock, Qty 5

0

36

Gravely 06501800

Nut-Hex .375-16 Grade 2
(Superseded to 06529400)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 05913300

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05958000)

$1.99

$

In Stock, Qty 16

0

38

Gravely 03645500

Ball Joint-Snap In

$

$

Not available

39

Gravely 08887800

Rod, Speed Control Lower Link

$

$

Not available

40

Gravely 08888000

Transmission Arm, Speed Interlock

$5.99

$

Usually ships in 4-12 days

0

41

Gravely 06600600

Key, Woodruff .125 x .50 x .203

$1.49

$

Usually ships in 4-12 days

0

42

Gravely 05918100

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05946900)

$1.99

$

In Stock, only 4 left!

0

43

Gravely 05913500

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05947000)

$1.99

$

In Stock, Qty 20+

0

44

Gravely 05514800

Bushing-Flange .312 x .500 x .344 x .880

$2.49

$

In Stock, Qty 20+

0

45

Gravely 08887900

Bracket, Speed Control Crank

$

$

Not available

46

Gravely 08886100

Bell Crank, Mast Speed Control

$

$

Not available

47

Gravely 01149900

Washer, Belleville Spring
(Superseded to 01178700)

$2.49

$

In Stock, Qty 6

0

48

Gravely 08330700

Spring-Ten .085 x .750 x 3.50
(Superseded to 08312200)

$35.99

$

Usually ships in 4-12 days

0
