988070 - Gravely Pro 150 Walk-Behind Mower Power Unit, 14hp Kohler (SN: 000101 & Above) ELECTRICAL SYSTEM Parts Diagram

Pro 150 Walk-Behind Mower Power Unit, 14hp Kohler

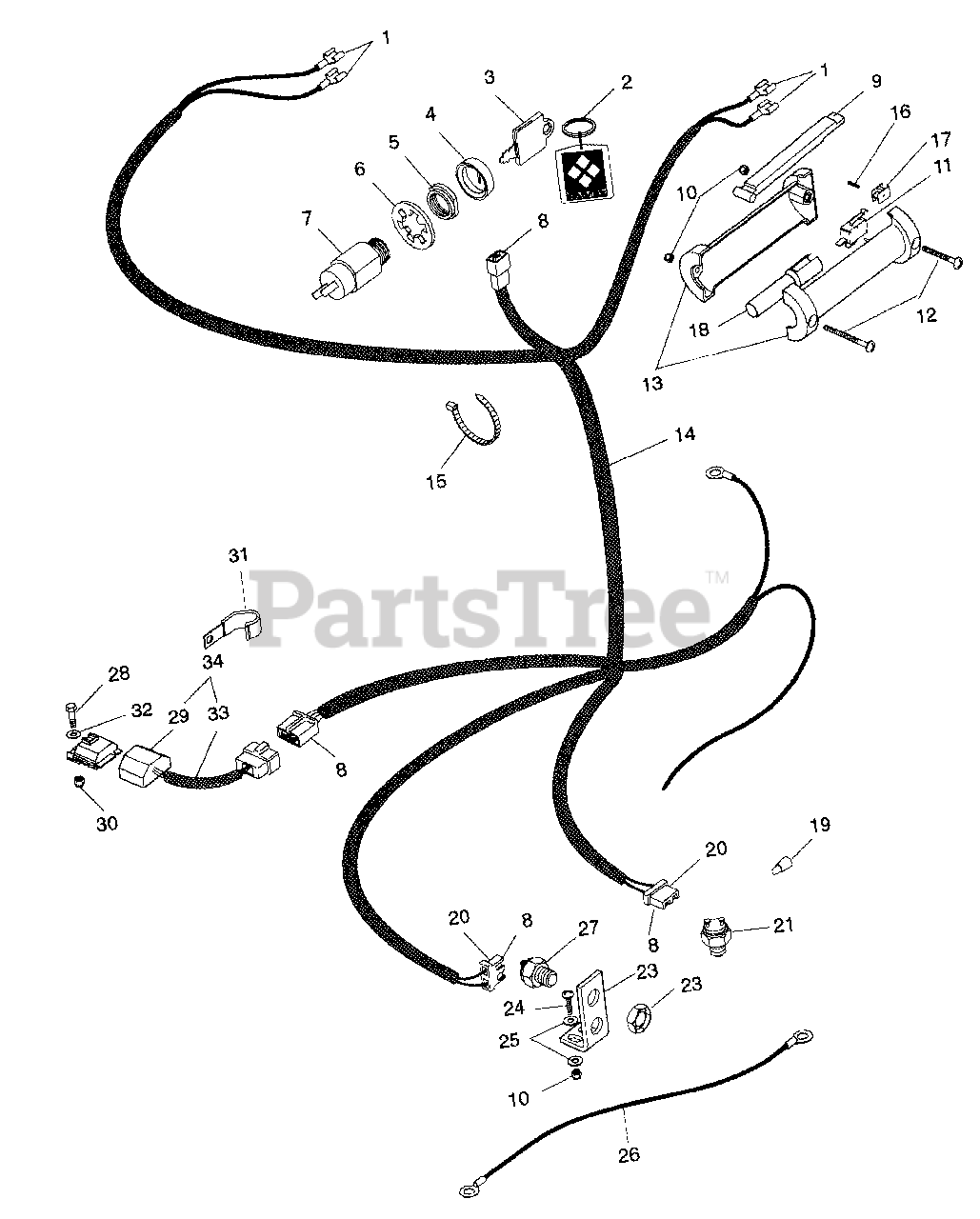

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Gravely 046988

Terminal, Female
(Superseded to 08828400)

$

$

Not available

2

Gravely 045842

Key Chain
(Superseded to 03490000)

$

$

Not available

3

Gravely 045488

Ignition Switch Key
(Superseded to 02460700)

$10.99

$

In Stock, Qty 20+

0

4

Gravely 045490

Cap-Ignition Switch
(Superseded to 07517700)

$3.99

$

In Stock, Qty 19

0

5

Gravely 045497

Nut-Panel .625-32
(Superseded to 06517300)

$9.49

$

Usually ships in 4-12 days

0

6

Gravely 018586

Washer-Lock .625
(Superseded to 06306900)

$4.99

$

Usually ships in 4-12 days

0

7

Gravely 024565

Key Switch Assembly

$

$

Not available

8

Gravely 038059

Terminal
(Superseded to 08540001)

$4.49

$

In Stock, Qty 5

0

9

Gravely 046822

Lever
(Superseded to 08602200)

$46.99

$

Usually ships in 4-12 days

0

10

Gravely 190254

Nut-Locking 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 088283

Switch
(Superseded to 08828300)

$

$

Not available

12

Gravely 159929

Screw-Maching 10-24 x 1.50
(Superseded to 06111100)

$1.49

$

In Stock, Qty 12

0

13

Gravely 088702

Handle, Left Hand & Right Hand
(Superseded to 08870200)

$36.99

$

Usually ships in 4-12 days

0

14

Gravely 088516

Harness, Wiring Pro Recoil
(Superseded to 08851600)

$

$

Not available

15

Gravely 041634

Tie Wrap, Black
(Superseded to 07519900)

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 058081

Pin-Roll .094 x .750
(Superseded to 05808100)

$0.99

$

In Stock, Qty 5

0

17

Gravely 088551

Holder, Switch
(Superseded to 08855100)

$15.99

$

Usually ships in 4-12 days

0

18

Gravely 088531

Insert, Handlebar
(Superseded to 08853100)

$

$

Not available

19

Gravely 011763

Nut-Connector
(Superseded to 07016700)

$

$

Not available

20

Gravely 042176

Connector, 2-Wire Switch
(Superseded to 08550000)

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 034640

Switch-Neutral Start
(Superseded to 08803700)

$35.99

$

Usually ships in 4-12 days

0

22

Gravely 034637

Bracket, Interlock Switch
(Superseded to 08803600)

$

$

Not available

23

Gravely 107354

Nut-Stamped .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

24

059207

Bolt-Hex 10-24 x .75 Grade 2

$

$

Not available

25

Gravely 131015

Washer-Flat-Steel .188 x .438 x .049
(Superseded to 06409200)

$

$

Not available

26

Gravely 042529

Wire, Ground
(Superseded to 08818400)

$

$

Not available

27

Gravely 020916

Switch-Neutral Start
(Superseded to 02913100)

$46.99

$

In Stock, Qty 6

0

28

Gravely 180020

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$1.49

$

In Stock, Qty 13

0

29

088857

Module

$

$

Not available

30

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$5.49

$

In Stock, only 2 left!

0

31

Gravely 069160

J-Clamp
(Superseded to 06916000)

$2.99

$

Usually ships in 4-12 days

0

32

Gravely 064123

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

33

088856

Adapter Harness

Note: (Used Only On Model(s): 059,060,301).

$

$

Not available

088855

Adapter Harness, Interlock

Note: (Used Only On Model(s): 069,070,074).

$

$

Not available

34

Gravely 588009

Kit, Interlock Module

Note: (Used Only On Model(s): 059,060,301).

$

$

Not available

Gravely 588011

Kit, Interlock Module, Recoil

Note: (Used Only On Model(s): 069,070,074).

$

$

Not available
