988071 - Gravely Pro 200 Walk-Behind Mower Power Unit, 15hp Kohler (SN: 000101 & Above) Fuel And Exhaust System - 12.5 H.P., 14 H.P., 15 H.P., Units (Recoil Start) Parts Diagram

Pro 200 Walk-Behind Mower Power Unit, 15hp Kohler

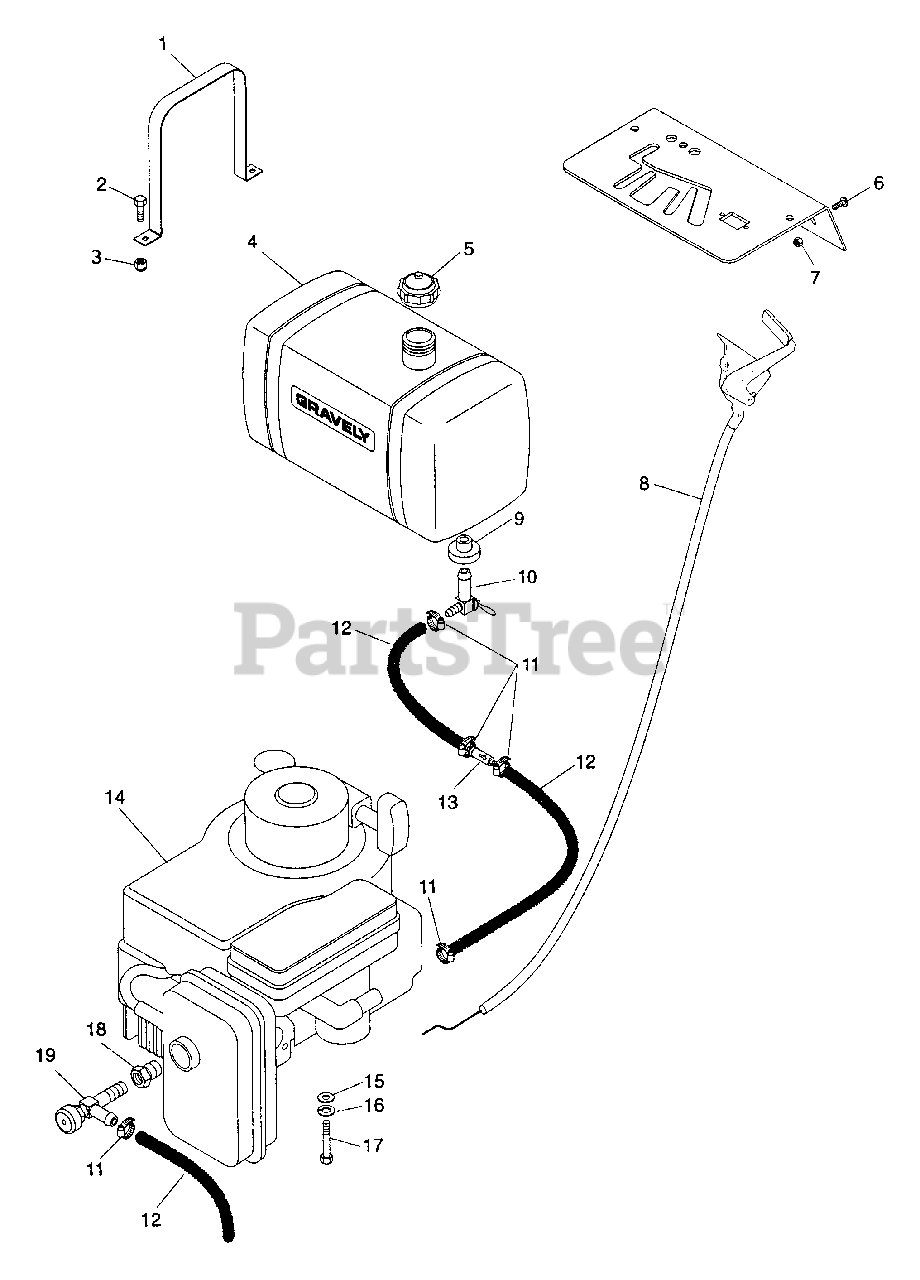

Fuel And Exhaust System - 12.5 H.P., 14 H.P., 15 H.P., Units (Recoil Start) Parts Diagram

  • Title

1

Gravely 08835900

Strap, Fuel Tank

$120.99

$

In Stock, only 1 left!

0

2

Gravely 05932000

Bolt-Hex.25-20 x .63

$2.49

$

In Stock, only 1 left!

0

3

Gravely 06506600

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06531000)

$5.49

$

In Stock, only 2 left!

0

4

Gravely 08867900

Tank, Fuel Gravely Pro

$

$

Not available

5

Gravely 07533400

Cap, Fuel Tank

$23.99

$

In Stock, only 1 left!

0

6

Gravely 06113300

Screw-Machine 10-32 x .50

$2.99

$

Usually ships in 4-12 days

0

7

Gravely 06502800

Nut-Locking 10-32
(Superseded to 06539200)

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 08873100

Assembly Throttle Control/Cable
(Superseded to 06943600)

$54.99

$

Usually ships in 4-12 days

0

9

Gravely 07511400

Bushing

$3.99

$

In Stock, Qty 20+

0

10

Gravely 08835100

Valve, Ball Shut-Off

$

$

Not available

11

Gravely 06924300

Hose Clamp

$7.99

$

Usually ships in 4-12 days

0

12

Gravely 00924300

Gas Line-Bulk
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 08811700

Filter, Fuel

Note: (Models 003, 062)

$10.99

$

Usually ships in 4-12 days

0

14

Gravely 08235000

Engine, Kawasaki 12.5 HP

Note: (Model 003)

$

$

Not available

14

Gravely 08236900

Engine, 14 HP, PS-1411

Note: (Model 004)

$

$

Not available

14

Gravely 08237500

Engine - 14 HP Kawasaki OHV

Note: (Model 062)

$

$

Not available

14

Gravely 08245400

Engine - 15 HP Kohler Command

Note: (Model 071)

$

$

Not available

15

Gravely 06412300

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06303600

Washer-Lock .313 x .078
(Superseded to 06308600)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 05941500

Bolt-Hex M8 x 1.25 x 30mm
(Superseded to 05968200)

$4.99

$

Usually ships in 4-12 days

0

18

Gravely 03493100

Adapter, Oil Drain

Note: (Models 004, 071)

$6.49

$

Usually ships in 4-12 days

0

18

Gravely 08757700

Adapter, Oil Drain

Note: (Models 003, 062)

$14.99

$

Usually ships in 4-12 days

0

19

Gravely 03493200

Cock, Oil Drain
(Superseded to 00429000)

$40.99

$

Usually ships in 4-12 days

0

Gravely 08881200

Guard, Muffler, 12.5 Kawasaki

Note: N/S; (Euro Models Only)

$

$

Not available

Gravely 08881300

Guard, Muffler, 14 Kawasaki

Note: N/S; (Euro Models Only)

$

$

Not available
