988075 - Gravely Pro 150 Walk-Behind Mower Power Unit, 12.5hp Kawasaki (SN: 000101 & Above) GEAR SELECTOR Parts Diagram

Pro 150 Walk-Behind Mower Power Unit, 12.5hp Kawasaki

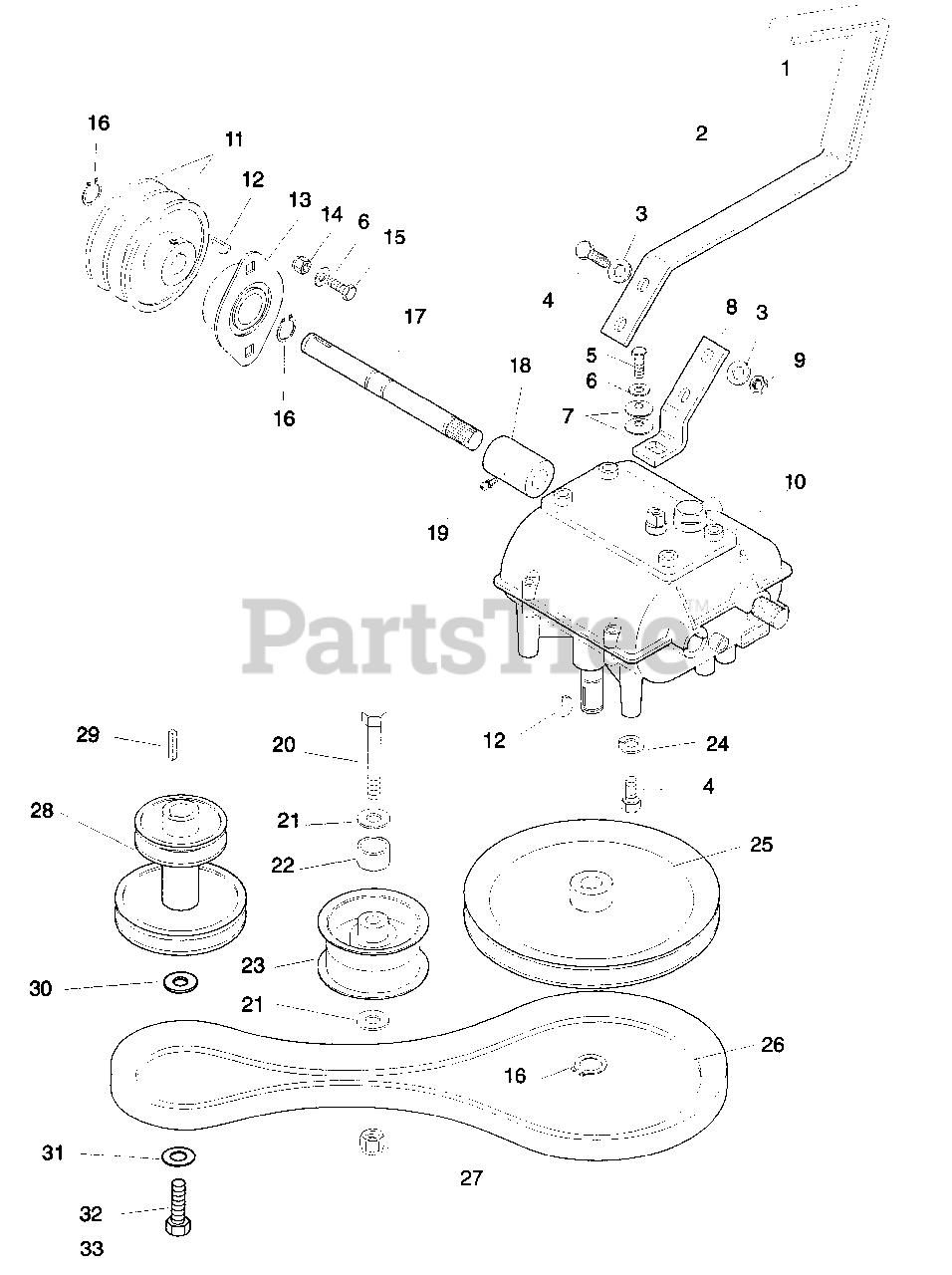

GEAR SELECTOR Parts Diagram

  • Title

1

Gravely 045550

Grip
(Superseded to 01570000)

$17.99

$

In Stock, only 2 left!

0

2

Gravely 048997

Lever, Transmission Shift
(Superseded to 08830500)

$57.99

$

Usually ships in 4-12 days

0

3

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

5

Gravely 05952300

Bolt-Hex .25-28 x .75 Grade 5

$2.49

$

Usually ships in 4-12 days

0

6

Gravely 06437300

Washer-Flat-Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

7

Gravely 050950

Washer, Belleville
(Superseded to 06435000)

$7.49

$

Usually ships in 4-12 days

0

8

Gravely 048996

Arm, Transmission Shift
(Superseded to 04900300)

$49.99

$

In Stock, only 1 left!

0

9

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 049011

Transmission, 5-Speed Pro 32
(Superseded to 58803400)

$

$

Not available

11

Gravely 088725

Drive Sheave (Upper) - Pro-100
(Superseded to 58804900)

Note: (Upper) - Pro-100

$303.99

$

In Stock, only 1 left!

0

12

Gravely 124549

Key, Woodruff .19 x .75
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 049277

Bearing-Flange .625 x 1.875 x .797
(Superseded to 05426400)

$73.99

$

In Stock, Qty 8

0

14

Gravely 06529700

Nut-Locking-Center .25 -20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

16

Gravely 015338

Ring-Retaining-External .579 x .93
(Superseded to 05711900)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 088805

Half Shaft, Transmission, Pro-150
(Superseded to 08880500)

$54.99

$

Usually ships in 4-12 days

0

18

Gravely 049013

Coupler, Transmission Shaft
(Superseded to 08870100)

$35.99

$

Usually ships in 4-12 days

0

19

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

20

Gravely 05962900

Bolt-Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

21

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 049708

Spacer, .625 x .385 x .55
(Superseded to 08828000)

$

$

Not available

23

Gravely 052062

Idler-Pulley Flat 3.25 x .625
(Superseded to 07320700)

$35.99

$

In Stock, Qty 10

0

24

Gravely 06308600

Washer-Locking .31 x .078
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 048995

Pulley-V 7.50 x .63
(Superseded to 07316900)

$

$

Not available

26

Gravely 049270

V-Belt A-Section 14.9 x 33/64
(Superseded to 07222700)

$29.99

$

In Stock, only 2 left!

0

27

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 088722

Crank Sheave-Pro 1
(Superseded to 08872200)

$81.99

$

In Stock, only 1 left!

0

29

Gravely 06607000

Key-Square .248 X 2.38

$

$

Not available

30

Gravely 120383

Washer-Locking .44
(Superseded to 06300121)

$2.99

$

In Stock, only 4 left!

0

31

Gravely 044379

Washer-Special .42 X 2.000 X 2.50
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

32

Gravely 042494

Bolt-Hex M10 X 1.5 X 60 (075, 077)
(Superseded to 05968300)

Note: (075, 077)

$4.99

$

Usually ships in 4-12 days

0

33

Gravely 181676

Bolt-Hex .44-20 X 2.250 (078, 079)
(Superseded to 05964600)

Note: (078, 079)

$2.99

$

In Stock, only 2 left!

0
