988076 - Gravely Pro 300 Walk-Behind Mower Power Unit, 20hp Kohler (SN: 000101 & Above) ELECTRICAL SYSTEM - 14 H.P. UNIT (RECOIL START) Parts Diagram

Pro 300 Walk-Behind Mower Power Unit, 20hp Kohler

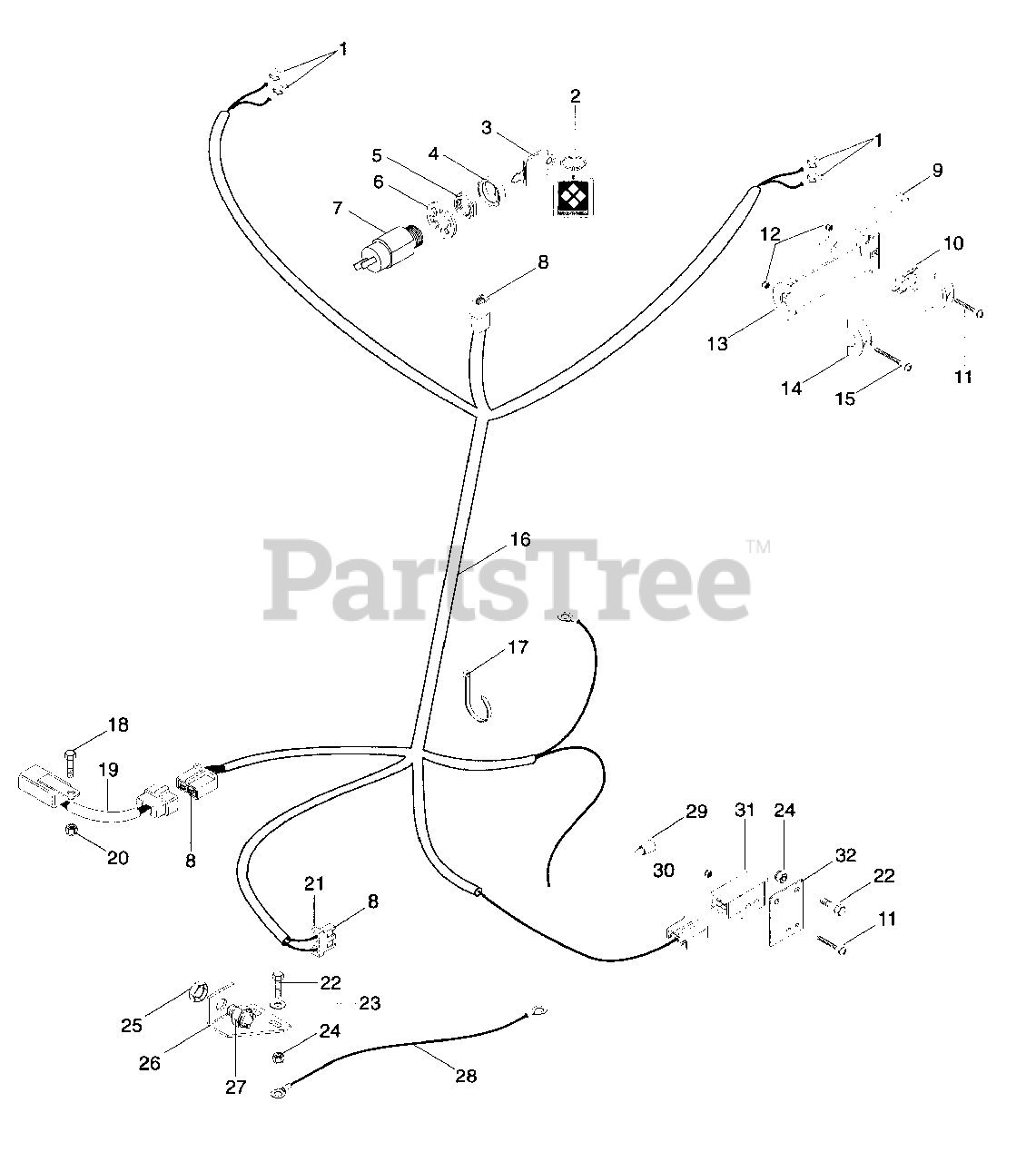

ELECTRICAL SYSTEM - 14 H.P. UNIT (RECOIL START) Parts Diagram

  • Title

1

Gravely 046988

Terminal, Female
(Superseded to 08828400)

$

$

Not available

2

Gravely 045842

Key Chain
(Superseded to 03490000)

$

$

Not available

3

Gravely 045488

Ignition Switch Key
(Superseded to 02460700)

$10.99

$

In Stock, Qty 20+

0

4

Gravely 045490

Cap-Ignition Switch
(Superseded to 07517700)

$3.99

$

In Stock, Qty 19

0

5

Gravely 045497

Nut-Panel .625-32
(Superseded to 06517300)

$9.49

$

Usually ships in 4-12 days

0

6

Gravely 018586

Washer-Lock .625
(Superseded to 06306900)

$4.99

$

Usually ships in 4-12 days

0

7

Gravely 030202

Switch
(Superseded to 52406900)

$39.99

$

In Stock, only 2 left!

0

8

Gravely 038059

Terminal
(Superseded to 08540001)

$4.49

$

In Stock, Qty 5

0

9

Gravely 046822

Lever
(Superseded to 08602200)

$46.99

$

Usually ships in 4-12 days

0

10

Gravely 046823

Switch
(Superseded to 08828300)

$

$

Not available

11

Gravely 159929

Screw-Machine 10-24 x .625
(Superseded to 06111100)

$1.49

$

In Stock, Qty 12

0

12

Gravely 190254

Nut-Locking 10-24 Nylon
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 046821

Handle, Right Hand
(Superseded to 78802700)

$118.99

$

In Stock, only 1 left!

0

14

Gravely 046820

Handle, Left Hand
(Superseded to 78802700)

$118.99

$

In Stock, only 1 left!

0

15

Gravely 159967

Screw-Machine 10-24 x 1.50
(Superseded to 06118300)

$2.99

$

Usually ships in 4-12 days

0

16

Gravely 088755

Wire Harness, Pro-300 Recoil
(Superseded to 08875500)

$

$

Not available

17

Gravely 041634

Tie Wrap, Black
(Superseded to 07519900)

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 180020

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$1.49

$

In Stock, Qty 13

0

19

Gravely 041882

Module
(Superseded to 58800900)

$258.99

$

In Stock, only 2 left!

0

Gravely 048803

Module
(Superseded to 58801100)

$

$

Not available

20

Gravely 419454

Nut-Locking-Nylon .250-20 w/Insert Grade 2
(Superseded to 06500832)

$5.49

$

In Stock, only 2 left!

0

21

Gravely 042176

Connector, 2-Wire Switch
(Superseded to 08550000)

$3.99

$

Usually ships in 4-12 days

0

22

Gravely 180020

Bolt-Hex .25-20 x.75 Grade 5
(Superseded to 05901716)

$1.49

$

In Stock, Qty 13

0

23

Gravely 120392

Washer-Flat-Steel .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

24

Gravely 419454

Nut-Locking-Nylon .250-20 w/Insert Grade 2
(Superseded to 06500832)

$5.49

$

In Stock, only 2 left!

0

25

Gravely 107354

Nut-Stamped .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

26

Gravely 051717

Bracket, Interlock Switch
(Superseded to 08846000)

$

$

Not available

27

Gravely 020916

Switch, Neutral Start, N.O.
(Superseded to 02913100)

$46.99

$

In Stock, Qty 6

0

28

Gravely 042529

Wire, Ground
(Superseded to 08818400)

$

$

Not available

29

Gravely 011763

Nut-Connector
(Superseded to 07016700)

$

$

Not available

30

Gravely 190254

Nut, Locking, 10-24, Nylon
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 046219

Switch, Interlock
(Superseded to 08828100)

$21.99

$

In Stock, Qty 6

0

32

Gravely 051810

Bracket, Interlock Switch
(Superseded to 08846100)

$

$

Not available
