988076 - Gravely Pro 300 Walk-Behind Mower Power Unit, 20hp Kohler (SN: 000101 & Above) FRAME Parts Diagram

Pro 300 Walk-Behind Mower Power Unit, 20hp Kohler

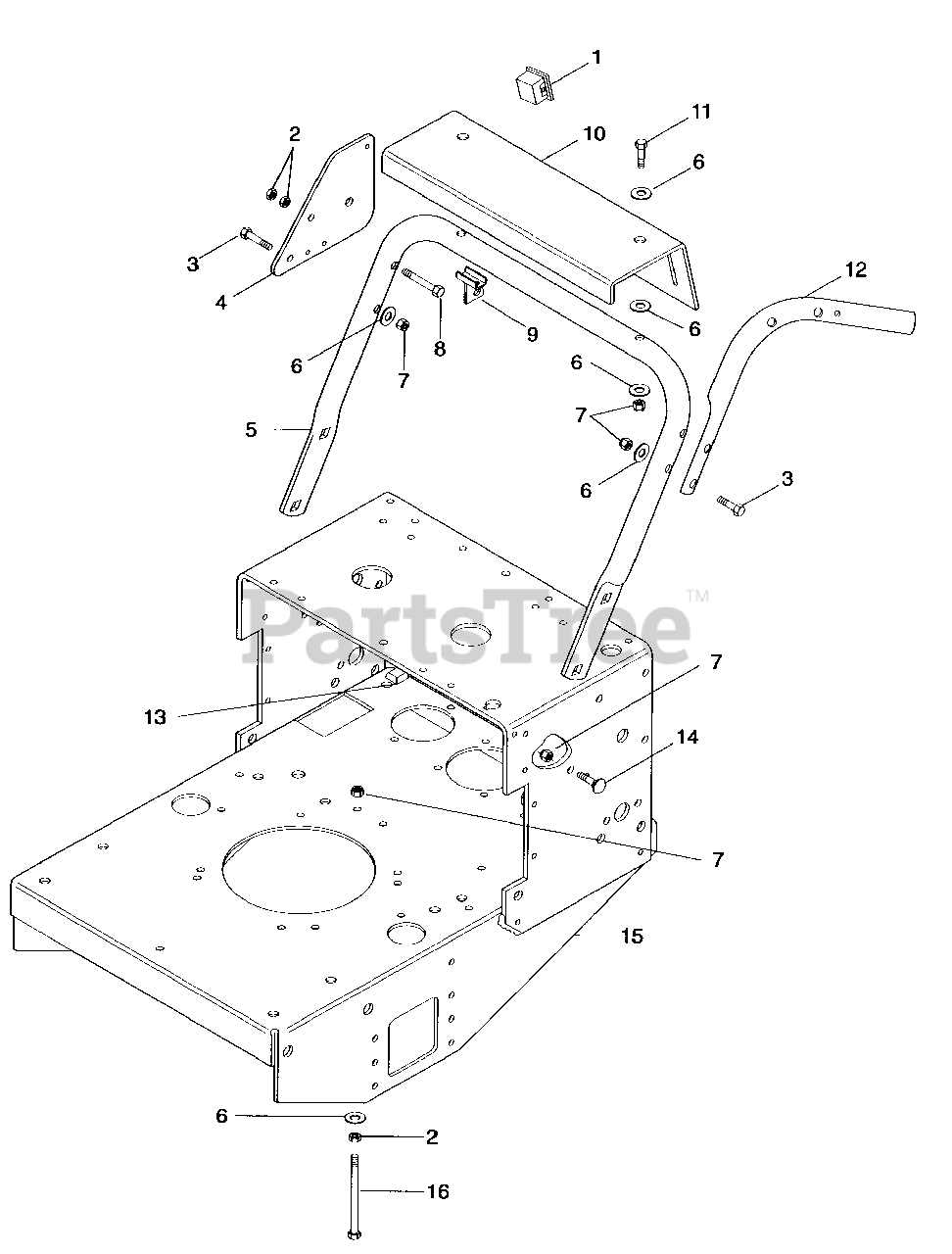

FRAME Parts Diagram

  • Title

1

Gravely 051212

SWITCH,BLANK
(Superseded to 09003300)

Note: Model (065)

$5.49

$

Usually ships in 4-12 days

0

2

Gravely 120377

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 180132

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

4

Gravely 051126

PLT,SPEED CTL LEVER
(Superseded to 08843600)

$

$

Not available

5

Gravely 049032

TUBE, HANDLEBAR MOUNTING
(Superseded to 08868500)

$

$

Not available

6

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

8

Gravely 180134

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

9

Gravely 051133

WLDMT,PTO LEVER MTG
(Superseded to 08844100)

$

$

Not available

10

Gravely 053108

PANEL, INSTRUMENT
(Superseded to 08856800)

$

$

Not available

11

Gravely 180130

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

12

Gravely 052622

HANDLEBAR, L.H.
(Superseded to 08847551)

$

$

Not available

Gravely 052623

HANDLEBER, R.H.
(Superseded to 08847651)

$

$

Not available

13

Gravely 040176

STOP
(Superseded to 07525100)

$2.49

$

In Stock, only 3 left!

0

14

Gravely 120915

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 051104

WELDMENT, FRAME
(Superseded to 04900700)

Note: (HYDROPRO)

$284.99

$

Usually ships in 4-12 days

0

16

Gravely 191163

BLT-HEX .38-16X4.00 GR5 YWZC
(Superseded to 05965400)

$3.99

$

In Stock, only 1 left!

0

Gravely 07711200

DECAL WARNING FOREIGN

Note: (Euro Models Only); Not Shown

$

$

Not available
