988079 - Gravely Pro 150 Walk-Behind Mower Power Unit, 15hp Kohler (SN: 000101 & Above) FRAME Parts Diagram

Pro 150 Walk-Behind Mower Power Unit, 15hp Kohler

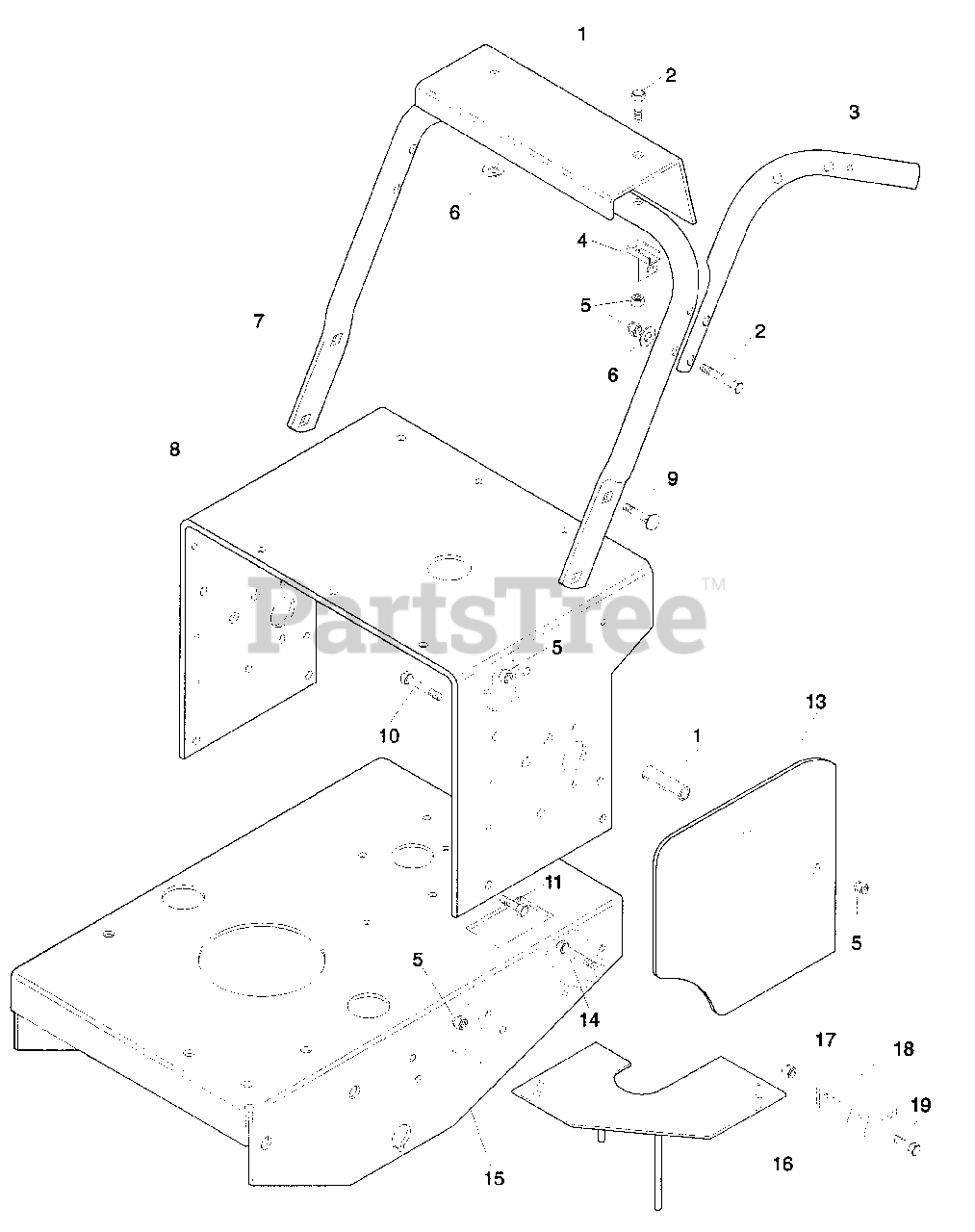

FRAME Parts Diagram

  • Title

1

Gravely 08834900

Panel, Instrument

$

$

Not available

2

Gravely 05963300

Bolt-Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, Qty 10

0

3

52622

Handlebar Left Hand

$

$

Not available

3

52623

Handlebar Right Hand

$

$

Not available

4

88734

PTO Lever Mounting Bracket

$

$

Not available

5

Gravely 06529600

Nut-Locking-Center .375-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

7

88735

Lower Handlebar, Pro 100

$

$

Not available

8

88721

Bolt-Round Head Square Neck .38-16 x 1.0

$

$

Not available

9

Gravely 06215500

Bolt-Hex .38-16 x 4.00
(Superseded to 06223600)

$2.49

$

In Stock, Qty 19

0

10

Gravely 05965400

Bolt-Hex .38-16 x 1.00 Grade 5

$3.99

$

In Stock, only 1 left!

0

11

00594870

Bolt-Hex .38-16 x 4.00 Grade 5

$

$

Not available

12

Gravely 088753

Bushing, Spacer, 3.25 x 3/8 ID x 5/8 OD
(Superseded to 08875300)

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 088737

Guard, Drive Pro-100 Side Cover
(Superseded to 08873700)

$15.99

$

Usually ships in 4-12 days

0

14

Gravely 05957900

Bolt-Hex.38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 5

0

15

Gravely 088720

Pro-150 Main Frame
(Superseded to 08872000)

$

$

Not available

16

Gravely 088739

Belt Brake Finger-Deck Clutch
(Superseded to 08873900)

$6.99

$

Usually ships in 4-12 days

0

17

Gravely 06529800

Nut-Locking Center .312-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 088489

Cleaner, Pulley Groove Left Hand
(Superseded to 08848900)

$

$

Not available

18

Gravely 088490

Cleaner, Pulley Groove Right Hand
(Superseded to 08849000)

$25.99

$

Usually ships in 4-12 days

0

19

Gravely 05947000

Bolt-Hex .31-18 x.75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

Gravely 078749

Decal Set, Pro-150 N/S
(Superseded to 07874900)

$

$

Not available

077112

Decal Warning Foreign

Note: (Euro Models Only) N/S

$

$

Not available
