988080 - Gravely Pro 200 Walk-Behind Mower Power Unit, 15hp Kohler (SN: 000101 & Above) Electrical System - 15 H.P. Units (Recoil Start) Parts Diagram

Pro 200 Walk-Behind Mower Power Unit, 15hp Kohler

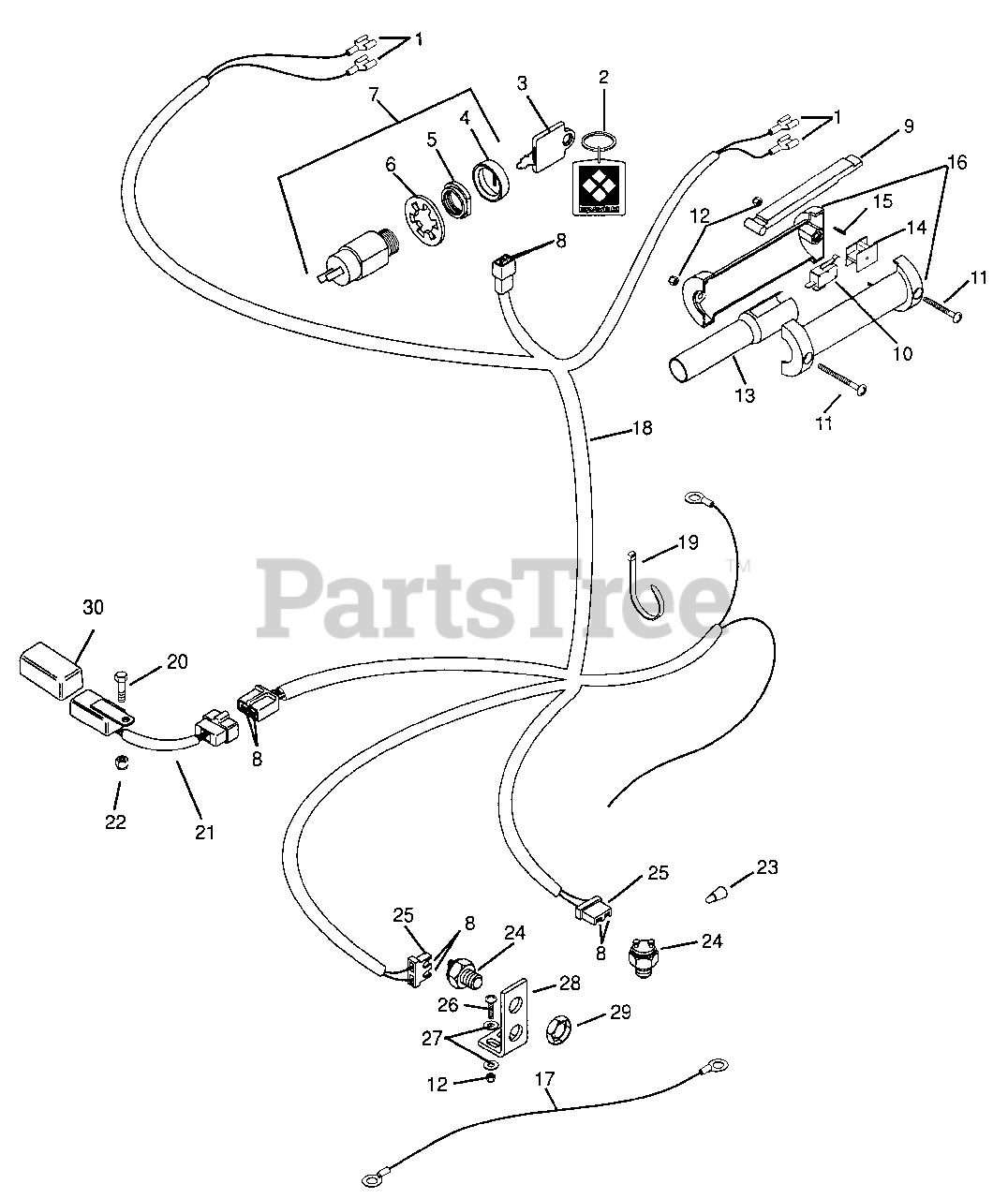

Electrical System - 15 H.P. Units (Recoil Start) Parts Diagram

  • Title

1

Gravely 046988

Terminal, Female
(Superseded to 08828400)

$

$

Not available

2

Gravely 045842

Key Chain
(Superseded to 03490000)

$

$

Not available

3

Gravely 045488

Ignition Switch Key
(Superseded to 02460700)

$7.99

$

In Stock, Qty 15

0

4

Gravely 045490

Cap-Ignition Switch
(Superseded to 07517700)

$3.99

$

In Stock, Qty 9

0

5

Gravely 045497

Nut-Panel .625-32
(Superseded to 06517300)

$7.99

$

In Stock, only 1 left!

0

6

Gravely 063019

Washer-Lock-Internal .625 x .045
(Superseded to 06306900)

$3.99

$

In Stock, only 1 left!

0

7

Gravely 52406900

Key Switch Assembly

$39.99

$

In Stock, only 1 left!

0

8

Gravely 038059

Terminal
(Superseded to 08540001)

$3.99

$

In Stock, only 4 left!

0

9

Gravely 046822

Lever
(Superseded to 08602200)

$45.99

$

Usually ships in 4-12 days

0

10

Gravely 046823

Switch
(Superseded to 08828300)

$

$

Not available

11

Gravely 06118300

Screw-Machine 10-24 x 1.50

$2.49

$

Usually ships in 4-12 days

0

12

Gravely 06536000

Nut-Locking 10-24
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

13

Gravely 08853100

Insert, Handlebar

$

$

Not available

14

Gravely 08855100

Holder, Switch

$15.99

$

Usually ships in 4-12 days

0

15

Gravely 058081

Pin-Roll .094 x .750
(Superseded to 05808100)

$0.99

$

In Stock, only 4 left!

0

16

Gravely 08870200

Handle Left Hand and Right Hand

$35.99

$

In Stock, only 2 left!

0

17

Gravely 042529

Wire, Ground
(Superseded to 08818400)

$

$

Not available

18

Gravely 052881

Harness, Wiring Pro Recoil
(Superseded to 08851600)

$

$

Not available

19

Gravely 041634

Tie Wrap, Black
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

20

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

21

Gravely 08885500

Adapter Harness, Interlock

$

$

Not available

22

Gravely 06529700

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 011763

Nut-Connector
(Superseded to 07016700)

$

$

Not available

24

Gravely 034640

Switch-Neutral Start N.C.
(Superseded to 08803700)

$34.99

$

In Stock, only 3 left!

0

25

Gravely 042176

Connector, 2-Wire Switch
(Superseded to 08550000)

$3.49

$

Usually ships in 4-12 days

0

26

Gravely 06116900

Screw-Machine 10-24 x .750
(Superseded to 05901837)

$2.49

$

Usually ships in 4-12 days

0

27

Gravely 06442700

Washer-Flat-Steel .219 x 50 x .049
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

28

Gravely 034637

Bracket, Interlock Switch
(Superseded to 08803600)

$

$

Not available

29

Gravely 107354

Nut, Stamped .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 08885700

Module, Interlock, Adapter Harness

$87.99

$

Usually ships in 4-12 days

0
