988080 - Gravely Pro 200 Walk-Behind Mower Power Unit, 15hp Kohler (SN: 000101 & Above) Fuel And Exhaust System - 15 H.P. Units (Recoil Start) Parts Diagram

Pro 200 Walk-Behind Mower Power Unit, 15hp Kohler

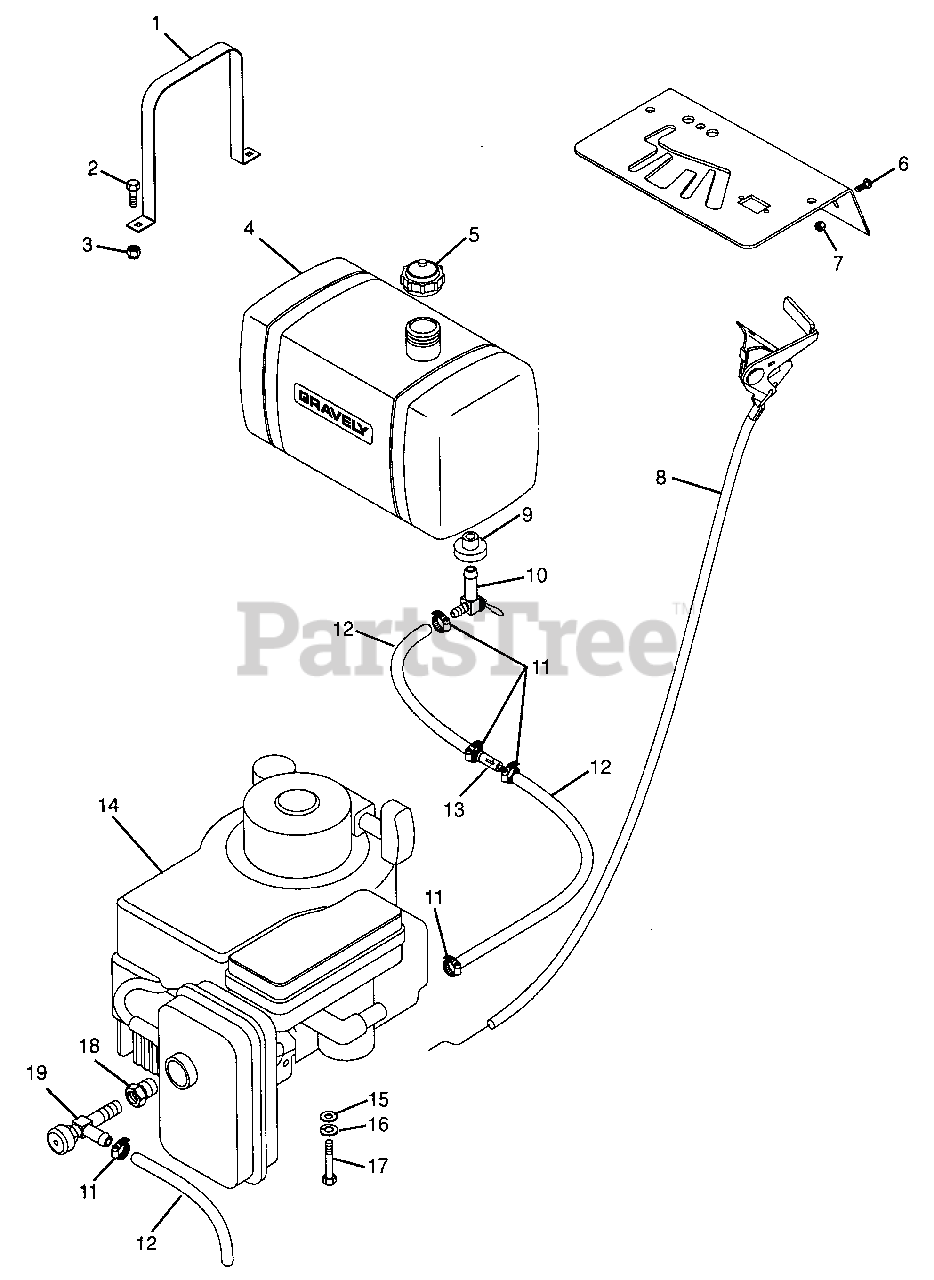

Fuel And Exhaust System - 15 H.P. Units (Recoil Start) Parts Diagram

  • Title

1

Gravely 049338

STRP,FUEL TANK
(Superseded to 08835900)

$120.99

$

In Stock, only 1 left!

0

2

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 2 left!

0

3

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 049283

TANK,FUEL GRAVELY PRO
(Superseded to 08867900)

$

$

Not available

5

Gravely 048856

CAP, FUEL TANK
(Superseded to 07533400)

$23.99

$

Usually ships in 4-12 days

0

6

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 088731

CABLE, CONTROL
(Superseded to 06943600)

$54.99

$

Usually ships in 4-12 days

0

9

Gravely 050246

BSHG-FLG .375 X 1.062 X .625 R
(Superseded to 07511400)

$3.99

$

In Stock, Qty 20+

0

10

Gravely 049284

VALVE,BALL SHUT-OFF
(Superseded to 08835100)

$

$

Not available

11

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

$7.99

$

Usually ships in 4-12 days

0

12

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 040742

FILTER,FUEL
(Superseded to 08811700)

$10.99

$

Usually ships in 4-12 days

0

14

Gravely 082454

ENG. 15HP KOHLER COMD PS-41532

$

$

Not available

15

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 05968200

BLT-HEX M8 X 1.25X30 GR5 YWZC

$4.99

$

Usually ships in 4-12 days

0

18

Gravely 041831

ADPT,OIL DRAIN
(Superseded to 08757700)

Note: (Models 003, 062)

$14.99

$

Usually ships in 4-12 days

0

19

Gravely 035329

DRAIN, 1/2" OIL
(Superseded to 00429000)

$40.99

$

In Stock, only 3 left!

0
