988081 - Gravely Pro 200 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton (SN: 000101 & Above) Electric System - 16 H.P. (Electric Start) Parts Diagram

Pro 200 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton

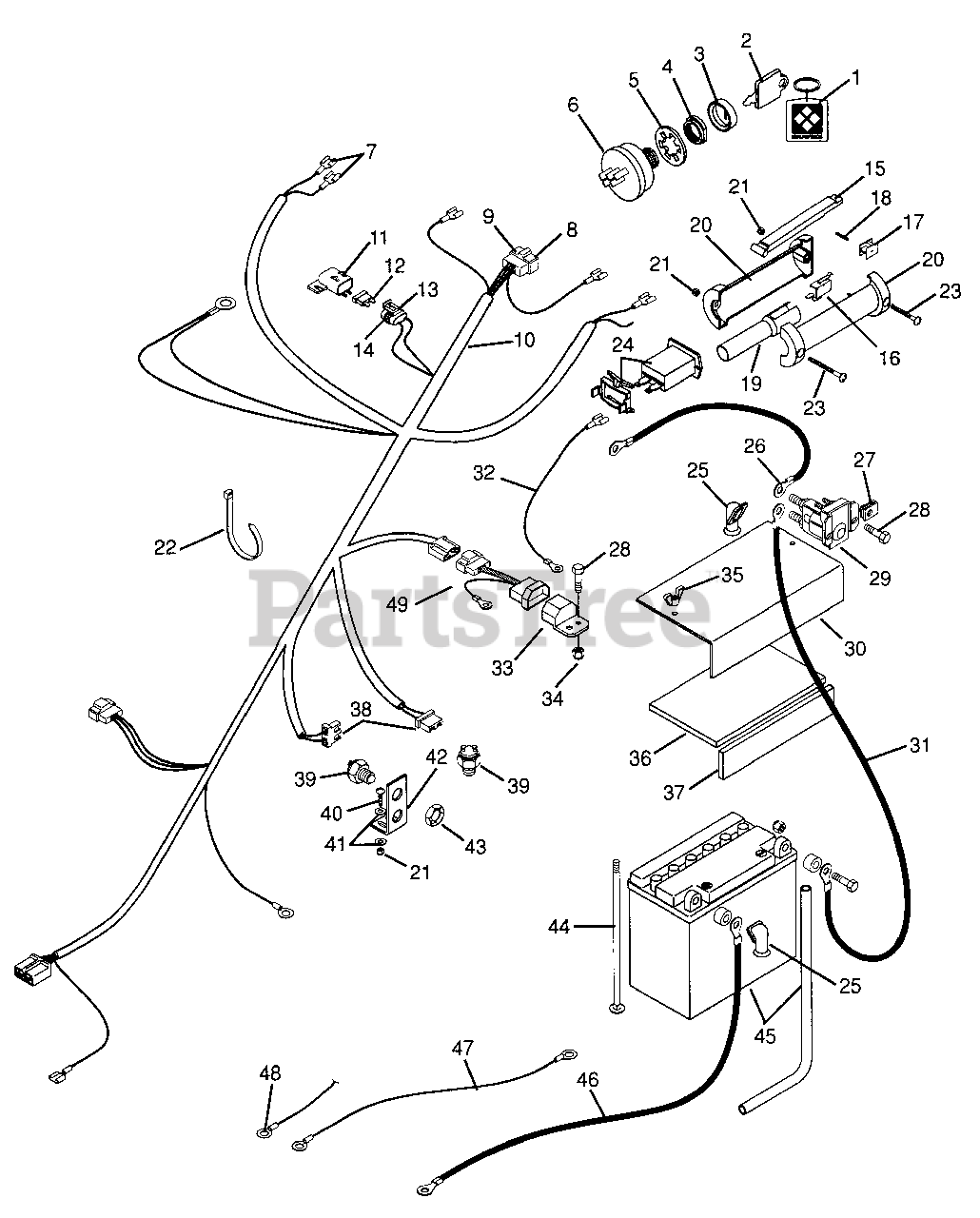

Electric System - 16 H.P. (Electric Start) Parts Diagram

  • Title

1

Gravely 045842

KEY CHAIN
(Superseded to 03490000)

$

$

Not available

2

Gravely 045488

KEY -W/CAP
(Superseded to 02460700)

$10.99

$

In Stock, Qty 20+

0

3

Gravely 045490

CAP - IGNITION SWITCH
(Superseded to 07517700)

$3.99

$

In Stock, Qty 12

0

4

Gravely 045497

NUT-PANEL .625-32 GRECO
(Superseded to 06517300)

$9.49

$

Usually ships in 4-12 days

0

5

Gravely 018586

WSHR-LK-INT .625X.045 YWZC
(Superseded to 06306900)

$4.99

$

Usually ships in 4-12 days

0

6

Gravely 08883300

SWITCH,KEY,4Q463A,W/CARB TERM
(Superseded to 59211900)

$92.99

$

Usually ships in 4-12 days

0

7

Gravely 046988

TERMINAL,FEMALE
(Superseded to 08828400)

$

$

Not available

8

Gravely 038059

TERMINAL
(Superseded to 08540001)

$4.49

$

In Stock, Qty 5

0

9

Gravely 038058

CONNECTOR
(Superseded to 20645101)

$8.49

$

In Stock, only 3 left!

0

10

Gravely 08883400

HARNESS,WIRE,PRO-200/16HP B&S

$

$

Not available

11

Gravely 045921

COVER
(Superseded to 20822800)

$

$

Not available

12

Gravely 045037

FUSE,25 AMP
(Superseded to 08961800)

$3.99

$

In Stock, Qty 12

0

13

Gravely 045922

TERM.,FOR 14-16 GA WIRE
(Superseded to 20822900)

$

$

Not available

14

Gravely 045920

ASM,CONN WEATHER TIGHT
(Superseded to 20822700)

$

$

Not available

15

Gravely 046822

LEVER
(Superseded to 08602200)

$46.99

$

Usually ships in 4-12 days

0

16

Gravely 046823

SWITCH
(Superseded to 08828300)

$

$

Not available

17

Gravely 08855100

HOLDER, SWITCH

$15.99

$

Usually ships in 4-12 days

0

18

Gravely 058081

PIN-ROLL .094X.750
(Superseded to 05808100)

$0.99

$

In Stock, Qty 5

0

19

Gravely 08853100

INSERT, HANDLEBAR (PROS)

$

$

Not available

20

Gravely 08870200

HANDLE, L.H. & R.H.

$36.99

$

Usually ships in 4-12 days

0

21

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 041634

TIE WRAP, BLACK LG 7.31
(Superseded to 07519900)

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 06118300

SCR-MCH 10-24X1.50 PH YWZC

$2.99

$

Usually ships in 4-12 days

0

24

Gravely 038256

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$25.99

$

In Stock, Qty 16

0

25

Gravely 033847

BOOT, INSULATOR
(Superseded to 03384700)

$

$

Not available

26

Gravely 03492500

CABLE, STARTER .31X23.00X.31

$25.99

$

Usually ships in 4-12 days

0

27

Gravely 011676

NUT-SPEED .25-20
(Superseded to 07016800)

$

$

Not available

28

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

29

Gravely 045071

SOLENOID
(Superseded to 03551000)

Note: (Models 007, 063)

$43.99

$

In Stock, Qty 6

0

30

Gravely 049294

CVR,BATTERY
(Superseded to 08835800)

$

$

Not available

31

Gravely 08816700

CABLE, BATTERY TO SLND

$

$

Not available

32

Gravely 021425

WIRE,INSTRUMENT PANEL
(Superseded to 08801600)

$

$

Not available

33

Gravely 08885800

MODULE,INTERLOCK,ELEC, 1601

$73.99

$

Usually ships in 4-12 days

0

34

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$5.49

$

In Stock, Qty 20+

0

36

Gravely 050417

PAD,BATTERY
(Superseded to 08803400)

$7.49

$

Usually ships in 4-12 days

0

37

Gravely 050418

PAD,BATTERY
(Superseded to 08800600)

$

$

Not available

38

Gravely 042176

CONN,2-WIRE SWITCH
(Superseded to 08550000)

$3.99

$

Usually ships in 4-12 days

0

39

Gravely 034640

SWITCH, NEUTRAL START N.C.
(Superseded to 08803700)

$35.99

$

Usually ships in 4-12 days

0

40

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 11

0

41

Gravely 06442700

WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$1.49

$

Usually ships in 4-12 days

0

42

Gravely 034637

BRKT,INTERLOCK SWITCH
(Superseded to 08803600)

$

$

Not available

43

Gravely 107354

NUT-STAMPED .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

44

Gravely 06220400

BLT-RDHDSQNK .25-20X7.00 G2YZ
(Superseded to 06200229)

$5.49

$

In Stock, Qty 20+

0

45

Gravely 041358

BATTERY,12 VOLT
(Superseded to 78801800)

$

$

Not available

46

Gravely 050383

CBL,NEGATIVE BATTERY 20.00
(Superseded to 08840400)

$18.99

$

Usually ships in 4-12 days

0

47

Gravely 042529

WIRE,GROUND
(Superseded to 08818400)

$

$

Not available

48

Gravely 035378

TERM,RING TONGUE
(Superseded to 08805800)

$

$

Not available

49

Gravely 08885300

ADAPT HARNESS, INTERLOCK, ELEC
(Superseded to 08885301)

$

$

Not available
