988082 - Gravely Pro 200 Walk-Behind Mower Power Unit, 18hp Kohler (SN: 000101 & Above) Electric System - 18 H.P. (Electric Start) Parts Diagram

Pro 200 Walk-Behind Mower Power Unit, 18hp Kohler

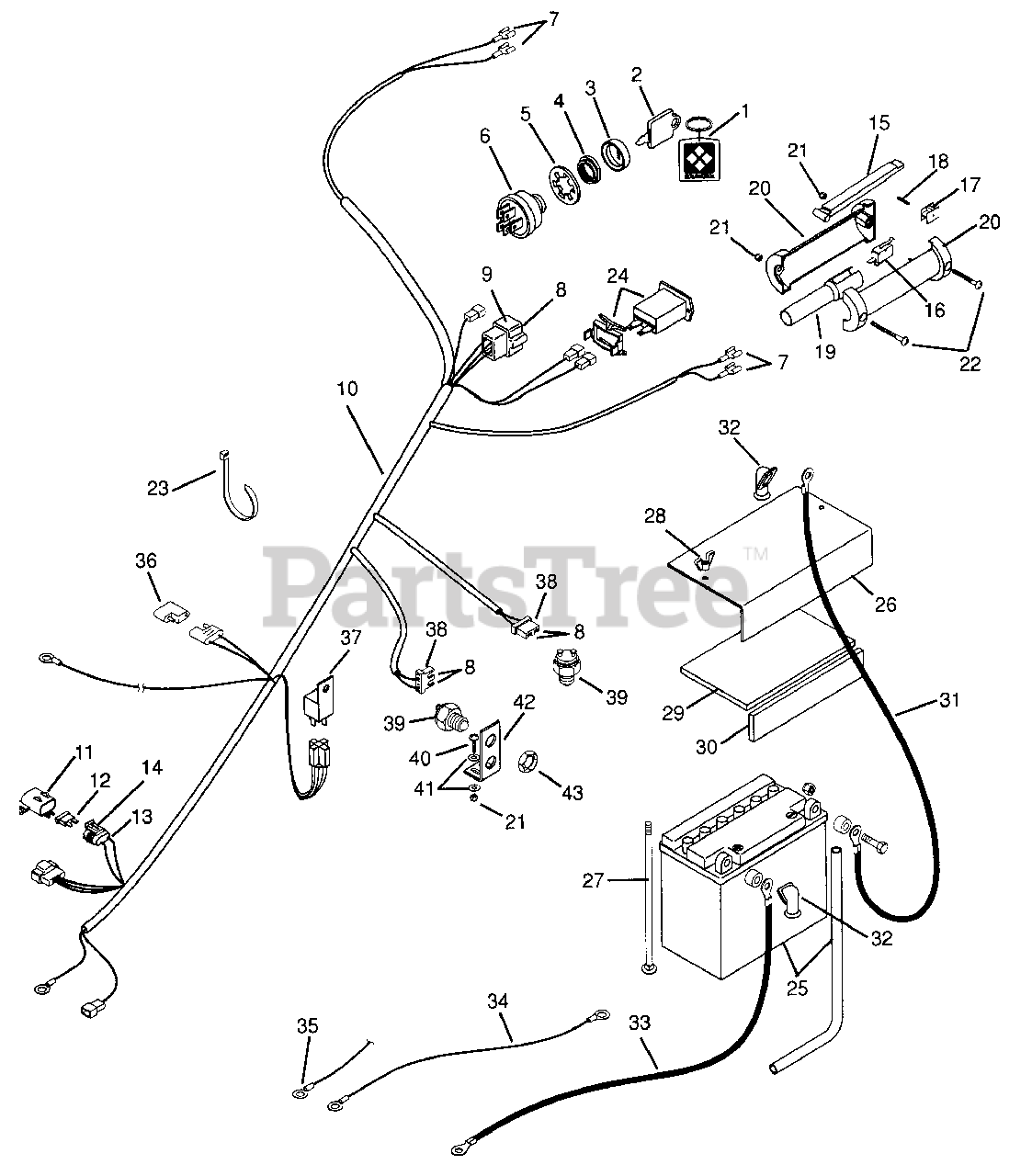

Electric System - 18 H.P. (Electric Start) Parts Diagram

  • Title

1

Gravely 045842

KEY CHAIN
(Superseded to 03490000)

$

$

Not available

2

Gravely 045488

KEY -W/CAP
(Superseded to 02460700)

$10.99

$

In Stock, Qty 20+

0

3

Gravely 045490

CAP - IGNITION SWITCH
(Superseded to 07517700)

$3.99

$

In Stock, Qty 12

0

4

Gravely 045497

NUT-PANEL .625-32 GRECO
(Superseded to 06517300)

$9.49

$

Usually ships in 4-12 days

0

5

Gravely 018586

WSHR-LK-INT .625X.045 YWZC
(Superseded to 06306900)

$4.99

$

Usually ships in 4-12 days

0

6

Gravely 03602300

KEY SWITCH

$26.99

$

In Stock, Qty 15

0

7

Gravely 046988

TERMINAL,FEMALE
(Superseded to 08828400)

$

$

Not available

8

Gravely 038059

TERMINAL
(Superseded to 08540001)

$4.49

$

In Stock, Qty 5

0

9

Gravely 038058

CONNECTOR
(Superseded to 20645101)

$8.49

$

In Stock, only 3 left!

0

10

Gravely 04900200

WIRE HARNESS, PRO-200 KOHLER

$

$

Not available

11

Gravely 045921

COVER
(Superseded to 20822800)

$

$

Not available

12

Fuse, 30 AMP

$

$

Not available

13

Gravely 045922

TERM.,FOR 14-16 GA WIRE
(Superseded to 20822900)

$

$

Not available

14

Gravely 045920

ASM,CONN WEATHER TIGHT
(Superseded to 20822700)

$

$

Not available

15

Gravely 046822

LEVER
(Superseded to 08602200)

$46.99

$

Usually ships in 4-12 days

0

16

Gravely 046823

SWITCH
(Superseded to 08828300)

$

$

Not available

17

Gravely 08855100

HOLDER, SWITCH

$15.99

$

Usually ships in 4-12 days

0

18

Gravely 058081

PIN-ROLL .094X.750
(Superseded to 05808100)

$0.99

$

In Stock, Qty 5

0

19

Gravely 08853100

INSERT, HANDLEBAR (PROS)

$

$

Not available

20

Gravely 08870200

HANDLE, L.H. & R.H.

$36.99

$

Usually ships in 4-12 days

0

21

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06118300

SCR-MCH 10-24X1.50 PH YWZC

$2.99

$

Usually ships in 4-12 days

0

23

Gravely 041634

TIE WRAP, BLACK LG 7.31
(Superseded to 07519900)

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 038256

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$25.99

$

In Stock, Qty 16

0

25

Gravely 041358

BATTERY,12 VOLT
(Superseded to 78801800)

$

$

Not available

26

Gravely 049294

CVR,BATTERY
(Superseded to 08835800)

$

$

Not available

27

Gravely 06220400

BLT-RDHDSQNK .25-20X7.00 G2YZ
(Superseded to 06200229)

$5.49

$

In Stock, Qty 20+

0

28

Gravely 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$5.49

$

In Stock, Qty 20+

0

29

Gravely 050417

PAD,BATTERY
(Superseded to 08803400)

$7.49

$

Usually ships in 4-12 days

0

30

Gravely 050418

PAD,BATTERY
(Superseded to 08800600)

$

$

Not available

31

Gravely 049101

CBL,BATTERY TO SOLENOID
(Superseded to 08987000)

$51.99

$

Usually ships in 4-12 days

0

32

Gravely 033847

BOOT, INSULATOR
(Superseded to 03384700)

$

$

Not available

33

Gravely 050383

CBL,NEGATIVE BATTERY 20.00
(Superseded to 08840400)

$18.99

$

Usually ships in 4-12 days

0

34

Gravely 042529

WIRE,GROUND
(Superseded to 08818400)

$

$

Not available

35

Gravely 035378

TERM,RING TONGUE
(Superseded to 08805800)

$

$

Not available

36

Gravely 03081700

MOLDED DIODE PLUG 1 AMP

$29.99

$

In Stock, only 3 left!

0

37

Gravely 040216

RELAY,SEALED W/DIODE
(Superseded to 00432101)

$25.99

$

In Stock, Qty 20+

0

38

Gravely 042176

CONN,2-WIRE SWITCH
(Superseded to 08550000)

$3.99

$

Usually ships in 4-12 days

0

39

Gravely 034640

SWITCH, NEUTRAL START N.C.
(Superseded to 08803700)

$35.99

$

Usually ships in 4-12 days

0

40

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 11

0

41

Gravely 06442700

WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$1.49

$

Usually ships in 4-12 days

0

42

Gravely 034637

BRKT,INTERLOCK SWITCH
(Superseded to 08803600)

$

$

Not available

43

Gravely 107354

NUT-STAMPED .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0
