988082 - Gravely Pro 200 Walk-Behind Mower Power Unit, 18hp Kohler (SN: 000101 & Above) Fuel And Exhaust System - 16 H.P. And 18 H.P. Units (Electric Start) Parts Diagram

Pro 200 Walk-Behind Mower Power Unit, 18hp Kohler

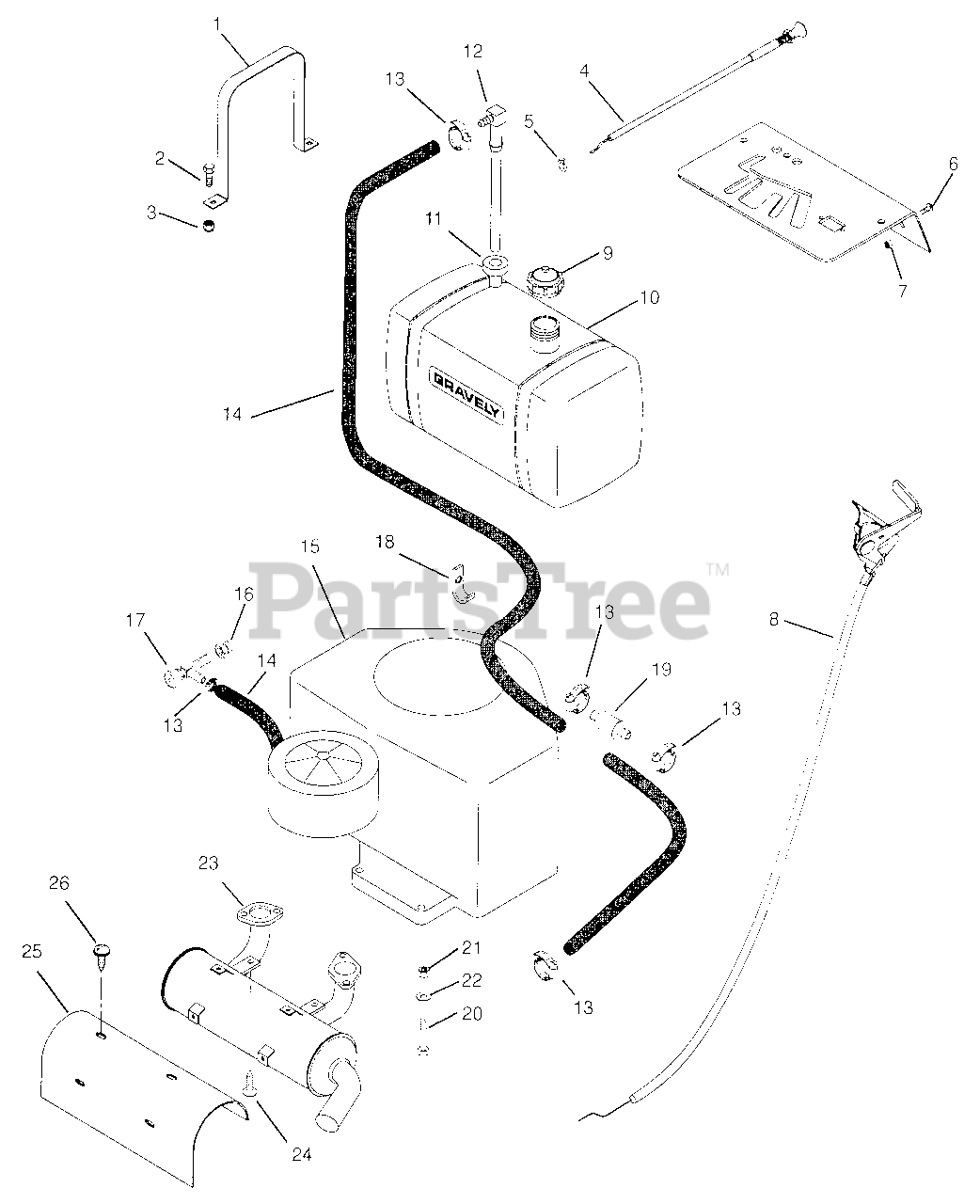

Fuel And Exhaust System - 16 H.P. And 18 H.P. Units (Electric Start) Parts Diagram

  • Title

1

Gravely 049338

STRP,FUEL TANK
(Superseded to 08835900)

$120.99

$

In Stock, only 1 left!

0

2

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 15

0

3

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 035137

CONTROL,CHOKE
(Superseded to 06924800)

Note: (Model 081)

$

$

Not available

Gravely 069361

CABLE, CHOKE (42.5")
(Superseded to 06936100)

Note: (Model 082)

$

$

Not available

5

Gravely 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, only 3 left!

0

6

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06925700

ASS'Y THR CONTR CBL-PRO/BS OHV
(Superseded to 06941000)

Note: (Model 081)

$67.99

$

Usually ships in 4-12 days

0

Gravely 06925800

THR CNTRL CBL ASSY-PRO/ LG KOH
(Superseded to 06943700)

Note: (Model 082)

$62.99

$

Usually ships in 4-12 days

0

9

Gravely 048856

CAP, FUEL TANK
(Superseded to 07533400)

$23.99

$

Usually ships in 4-12 days

0

10

Gravely 088933

FUEL TANK
(Superseded to 08893300)

$

$

Not available

11

Gravely 050246

BSHG-FLG .375 X 1.062 X .625 R
(Superseded to 07511400)

$3.99

$

In Stock, Qty 20+

0

12

Gravely 088936

FITTING, TANK
(Superseded to 08893600)

$21.99

$

Usually ships in 4-12 days

0

13

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

$7.99

$

Usually ships in 4-12 days

0

14

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 052614

ENGINE- 16.0 B&S VANGUARD TWIN

Note: (Model 081)

$

$

Not available

Gravely 08248100

ENGINE KOHLER CV 18HP PS-61541

Note: (Model 082)

$

$

Not available

16

Gravely 035328

ADAPTER, OIL DRAIN
(Superseded to 03493100)

$6.49

$

Usually ships in 4-12 days

0

17

Gravely 035329

DRAIN, 1/2" OIL
(Superseded to 00429000)

$40.99

$

In Stock, only 3 left!

0

18

Gravely 069094

J-CLAMP
(Superseded to 06909400)

$3.99

$

In Stock, only 4 left!

0

19

Gravely 08811700

FILTER,FUEL

$10.99

$

Usually ships in 4-12 days

0

20

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 10

0

21

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 09204700

MUFFLER, KOHLER CV18-CV25

Note: (Model 082)

$342.99

$

Usually ships in 4-12 days

0

Gravely 052615

KIT,MUFFLER
(Superseded to 08870700)

Note: (Model 081)

$

$

Not available

24

Gravely 07413100

SCR-TAP M6-1 X 25MM (BULK)

$

$

Not available

25

Gravely 08898000

HEAT SHIELD, CV18-25

Note: (Model 082)

$56.99

$

Usually ships in 4-12 days

0

26

Gravely 07413200

SCR-TAP W/ WASHER (BULK)

$5.49

$

Usually ships in 4-12 days

0
