988084 - Gravely Pro 300 Walk-Behind Mower Power Unit, 20hp Kohler (SN: 000101 & Above) Frame Parts Diagram

Pro 300 Walk-Behind Mower Power Unit, 20hp Kohler

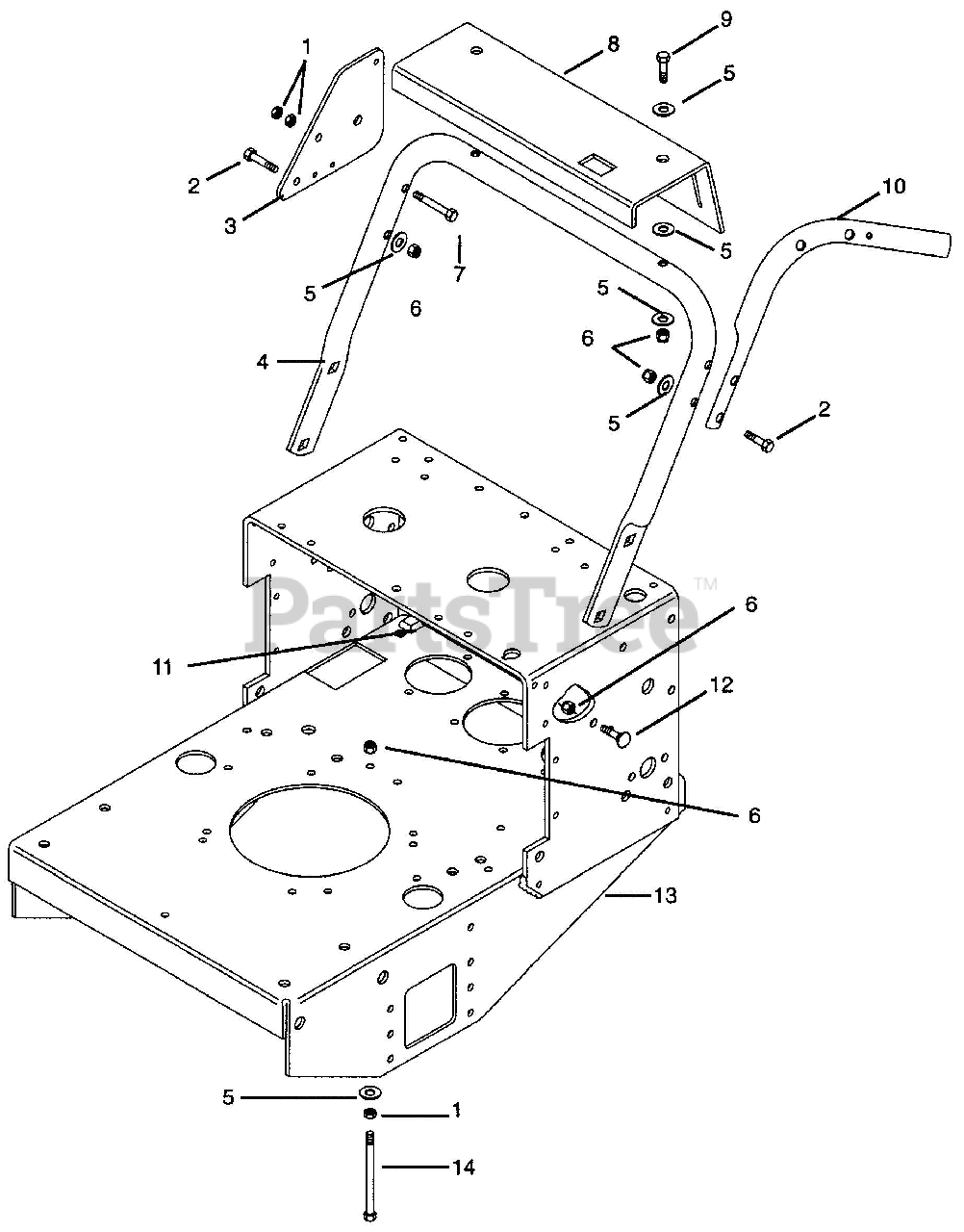

Frame Parts Diagram

  • Title

1

Gravely 120377

Nut-Hex .375-16
(Superseded to 06500917)

Note: Gravely Part Number

$1.49

$

In Stock, Qty 20+

0

2

Gravely 06529400

Bolt-Hex, .38-16 x 2.25 Grade 5
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 051126

Plate - Speed Control Lever
(Superseded to 08843600)

Note: Gravely Part Number

$

$

Not available

4

Gravely 049032

Tube - Handlrbar Mounting
(Superseded to 08868500)

Note: Gravely Part Number

$

$

Not available

5

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 05958400

Bolt-Hex .38-16 x 2.50 Grade 5
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

8

Gravely 08898100

Panel - Instrument

$20.99

$

Usually ships in 4-12 days

0

9

Gravely 05962900

Bolt-Hex .38-16 x 2.00 Grade 5
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

10

Gravely 052622

Handlebar - Left Hand
(Superseded to 08847551)

Note: Gravely Part Number

$

$

Not available

10

Gravely 052623

Handlebar - Right Hand
(Superseded to 08847651)

Note: Gravely Part Number

$

$

Not available

11

Gravely 040176

Stop
(Superseded to 07525100)

Note: Gravely Part Number

$2.49

$

In Stock, only 2 left!

0

12

Gravely 06215500

Bolt-Round Head Square Neck .38-16 x 1.0
(Superseded to 06223600)

$2.99

$

In Stock, only 1 left!

0

13

Gravely 04900700

Weldment - Frame

Note: (HYDROPRO)

$284.99

$

Usually ships in 4-12 days

0

14

Gravely 05965400

Bolt-Hex .38-16 x 4.00

$3.99

$

In Stock, only 1 left!

0
