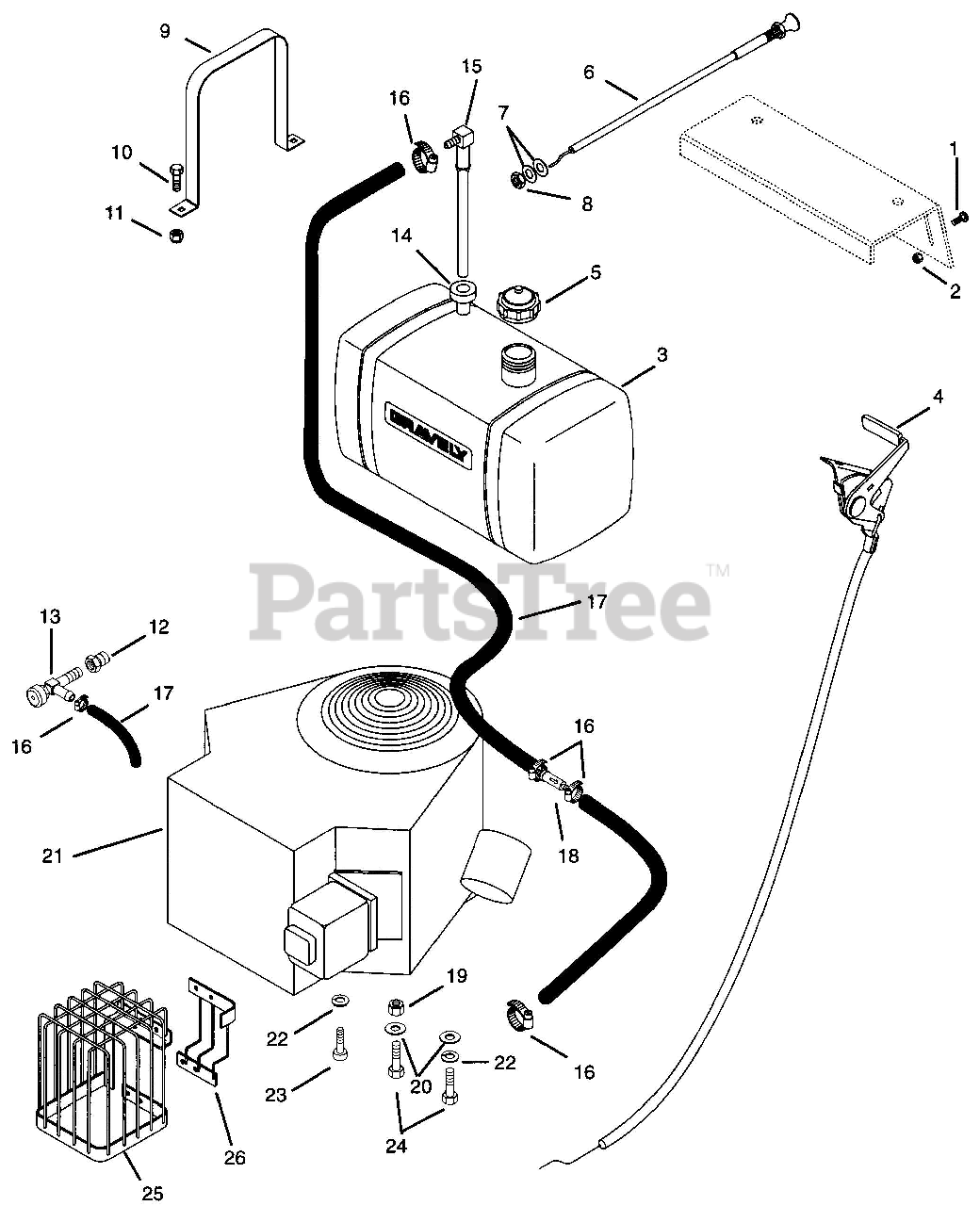

988084 - Gravely Pro 300 Walk-Behind Mower Power Unit, 20hp Kohler (SN: 000101 & Above) Fuel and Exhaust System Parts Diagram

Pro 300 Walk-Behind Mower Power Unit, 20hp Kohler

Fuel and Exhaust System Parts Diagram

  • Title

1

Gravely 06116700

Screw-Machine 10-32 x .50
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

2

0653600

Nut-Locking 10-32 Hex w/ Insert

$

$

Not available

3

Gravely 09112200

Fuel Tank

$75.99

$

Usually ships in 4-12 days

0

4

Gravely 06925700

Assembly - Throttle Control/Cable-B&S
(Superseded to 06941000)

Note: (988083, 307)

$65.99

$

Usually ships in 4-12 days

0

4

Gravely 06925800

Throttle Cable
(Superseded to 06943700)

Note: (988084)

$59.99

$

Usually ships in 4-12 days

0

5

Gravely 048856

Cap - Fuel Tank
(Superseded to 07533400)

Note: Gravely Part Number

$22.99

$

In Stock, only 1 left!

0

6

Gravely 06924800

Control - Choke

Note: (988083, 307)

$39.99

$

Usually ships in 4-12 days

0

6

Gravely 06936100

Choke for Kohler

Note: (988084)

$

$

Not available

7

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

8

065347

Nut-Jam .375-24

Note: Gravely Part Number

$

$

Not available

9

Gravely 04933800

Strap - Fuel Tank

$13.99

$

Usually ships in 4-12 days

0

10

Gravely 05947900

Bolt-Hex .25-20 x .63
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

11

Gravely 06529700

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 041831

Adapter - Oil Drain
(Superseded to 08757700)

Note: Gravely Part Number

$14.99

$

Usually ships in 4-12 days

0

13

Gravely 035329

Cock - Oil Drain
(Superseded to 00429000)

Note: Gravely Part Number

$39.99

$

In Stock, only 1 left!

0

14

Gravely 050246

Bushing
(Superseded to 07511400)

Note: Gravely Part Number

$3.49

$

In Stock, Qty 20+

0

15

Gravely 09112300

Fitting - Tank
(Superseded to 03875300)

$14.99

$

In Stock, Qty 9

0

16

Gravely 032045

Hose Clamp
(Superseded to 06924300)

Note: Gravely Part Number

$6.99

$

Usually ships in 4-12 days

0

17

Gravely 021134

Gas Line - Bulk
(Superseded to 03278100)

Note: Gravely Part Number

$0.99

$

In Stock, Qty 20+

0

18

Gravely 08811700

Filter - Fuel

$10.99

$

Usually ships in 4-12 days

0

19

Gravely 06529800

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0

21

Gravely 08252100

Engine - 16 HP B & S Vanguard

Note: (988083, 307)

$

$

Not available

21

Gravely 08248200

Engine - 20 HP Kohler

Note: (988084)

$

$

Not available

22

Gravely 06308600

Washer-Lock .313 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

23

05166600

Screw-Socket Head M8 x 1.25 x 20mm

$

$

Not available

24

Gravely 021914

Bolt-Hex M8 x 1.25 x 30mm
(Superseded to 05968200)

Note: Gravely Part Number

$3.99

$

Usually ships in 4-12 days

0

25

Gravely 08898400

Weldment - Muffler Guard

Note: (988307)

$

$

Not available

26

Gravely 08898300

Weldment - Muffler Guard

Note: (988307)

$75.99

$

Usually ships in 4-12 days

0

27

Gravely 09205200

Heat Shield
(Superseded to 08898000)

Note: (988084) (NOT SHOWN)

$55.99

$

Usually ships in 4-12 days

0

28

Gravely 09204700

Muffler

Note: (988084) (NOT SHOWN)

$335.99

$

Usually ships in 4-12 days

0
