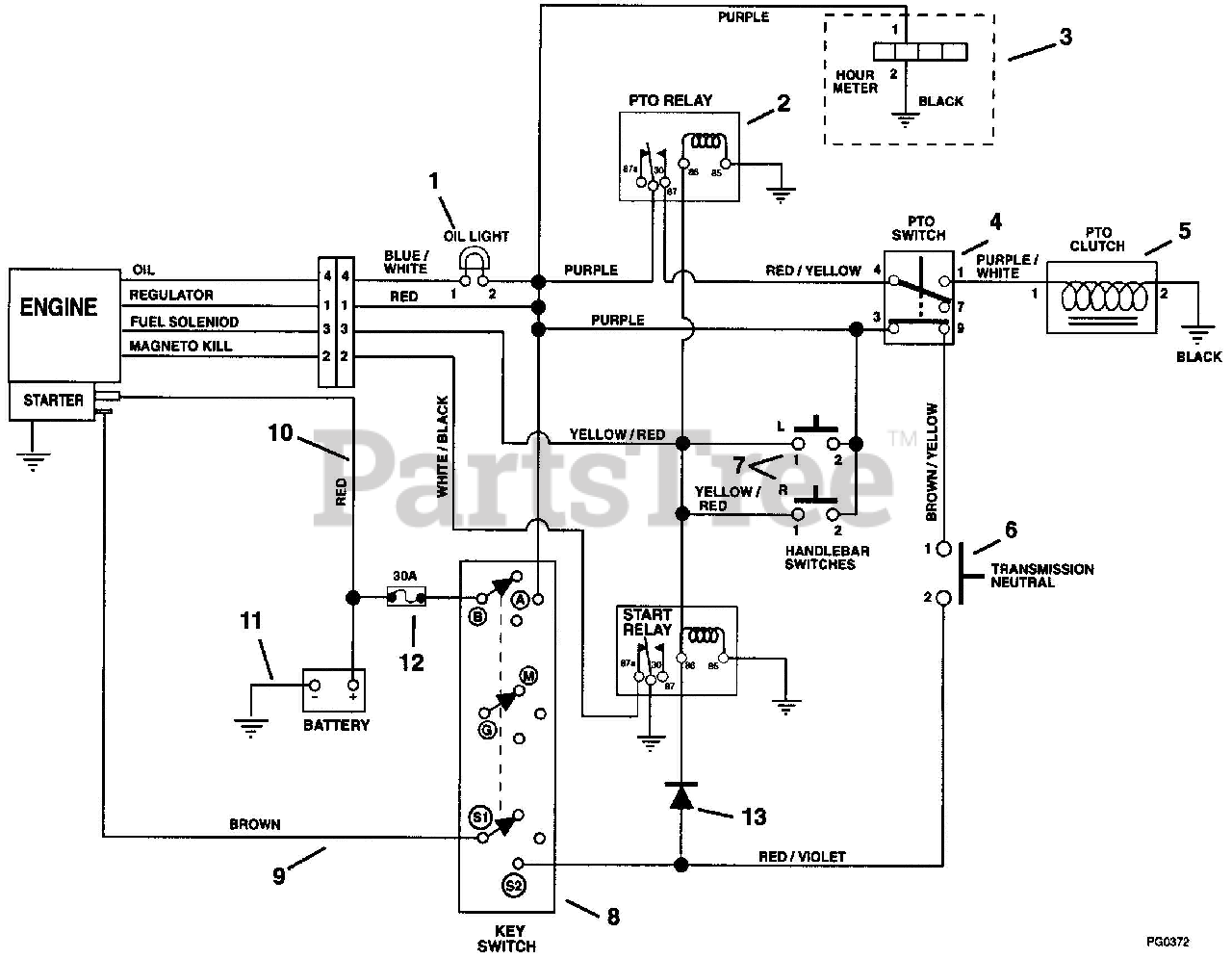

988084 - Gravely Pro 300 Walk-Behind Mower Power Unit, 20hp Kohler (SN: 000101 & Above) Wiring Diagram Parts Diagram

Pro 300 Walk-Behind Mower Power Unit, 20hp Kohler

Wiring Diagram Parts Diagram

  • Title

1

Gravely 050673

Light - Indicator
(Superseded to 05128700)

Note: Gravely Part Number

$7.99

$

In Stock, Qty 9

0

2

Gravely 03042800

Relay
(Superseded to 00432101)

$25.99

$

In Stock, Qty 20+

0

3

Gravely 038256

Hour Meter
(Superseded to 09497400)

Note: Gravely Part Number

$25.99

$

In Stock, only 4 left!

0

4

Gravely 00522100

Switch - Clutch with Retainer
(Superseded to 01545600)

$27.99

$

In Stock, Qty 20+

0

5

Gravely 03357900

Clutch - Electric

$501.99

$

In Stock, only 1 left!

0

6

Gravely 03657100

Switch

$9.99

$

In Stock, Qty 14

0

7

Gravely 08828300

Switch - Interlock

$

$

Not available

8

Gravely 03602300

Key Switch

$26.99

$

In Stock, Qty 20+

0

9

Gravely 047649

Cable - Starter
(Superseded to 03492500)

Note: Gravely Part Number

$25.99

$

In Stock, only 1 left!

0

10

Gravely 042129

Cable - Battery to Starter
(Superseded to 08816700)

Note: Gravely Part Number

$

$

Not available

11

Gravely 050383

Cable - Negative Battery
(Superseded to 08840400)

Note: Gravely Part Number

$18.99

$

Usually ships in 4-12 days

0

12

Gravely 00524600

Fuse 30 AMP

$

$

Not available

13

Gravely 03081700

Diode

$29.99

$

In Stock, Qty 6

0
