988085 - Gravely Pro 200 Walk-Behind Mower Power Unit, 18hp Robin Subaru (SN: 010000 & Above) Fuel And Exhaust System - 18 H.P. Units Parts Diagram

Pro 200 Walk-Behind Mower Power Unit, 18hp Robin Subaru

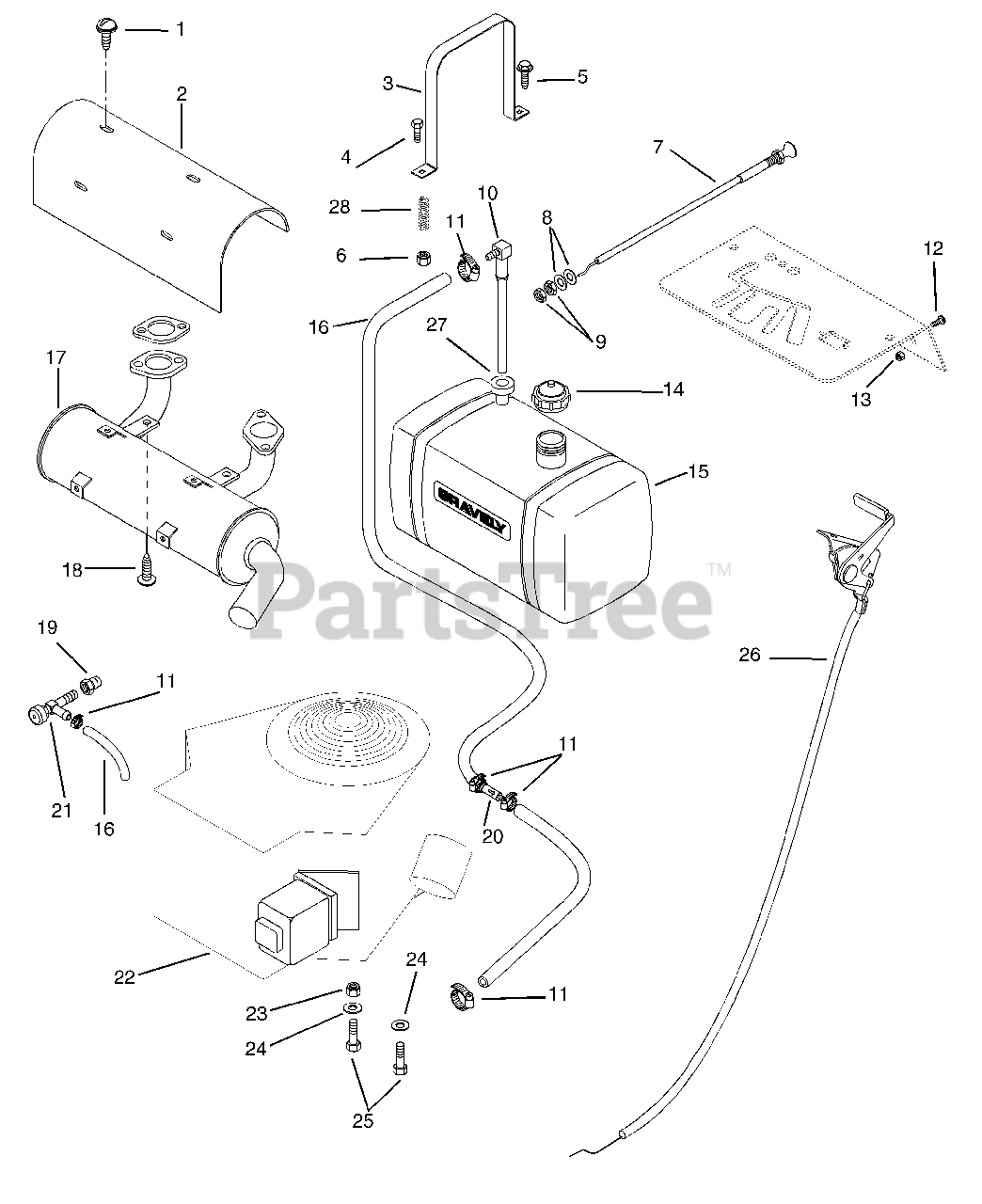

Fuel And Exhaust System - 18 H.P. Units Parts Diagram

  • Title

1

Gravely 07413200

Screw-Tap with Washer

$4.99

$

In Stock, only 2 left!

0

2

Gravely 08898000

Heat Shield

$55.99

$

Usually ships in 4-12 days

0

3

Gravely 049338

Strap-Fuel Tank
(Superseded to 08835900)

$90.99

$

In Stock, only 1 left!

0

4

Gravely 05964700

Bolt-Hex .25-20 x 1.75 Grade 5
(Superseded to 05901935)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

6

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 035137

Control-Choke
(Superseded to 06924800)

$39.99

$

Usually ships in 4-12 days

0

8

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06534700

Nut-Jam .375-24
(Superseded to 06500739)

$2.49

$

In Stock, Qty 5

0

10

Gravely 088936

Fitting-Tank
(Superseded to 08893600)

$20.99

$

Usually ships in 4-12 days

0

11

Gravely 06939100

Clamp-Hose Wire .490 x .510 x .116

$3.99

$

In Stock, Qty 20+

0

12

Gravely 06116700

Screw-Machine 10-32 x .50
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06536000

Nut-Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, only 1 left!

0

14

Gravely 048856

Cap-Fuel Tank
(Superseded to 07533400)

$22.99

$

In Stock, only 1 left!

0

15

Gravely 088933

Tank-Fuel
(Superseded to 08893300)

$

$

Not available

16

Gravely 021134

Gas Line-Bulk 1/4" I.D.
(Superseded to 03278100)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 09208900

Muffler

$

$

Not available

18

Gravely 07413100

Screw-Tap 6-1 x 25

$

$

Not available

19

Gravely 035328

Adapter-Oil Drain
(Superseded to 03493100)

$5.99

$

Usually ships in 4-12 days

0

20

Gravely 040742

Filter-Fuel
(Superseded to 08811700)

$10.99

$

Usually ships in 4-12 days

0

21

Gravely 035329

Cock-Oil Drain
(Superseded to 00429000)

$39.99

$

Usually ships in 4-12 days

0

22

Gravely 08256600

Engine-Robin 18HP

$

$

Not available

23

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 11

0

25

Gravely 05957400

Bolt-Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

26

Gravely 06943700

Cable-Control

$59.99

$

Usually ships in 4-12 days

0

27

Gravely 050246

Bushing
(Superseded to 07511400)

$3.49

$

In Stock, Qty 16

0

28

Gravely 011779

Spring-Compression .125 x .78 x 1.00
(Superseded to 08327000)

$15.99

$

In Stock, only 3 left!

0
