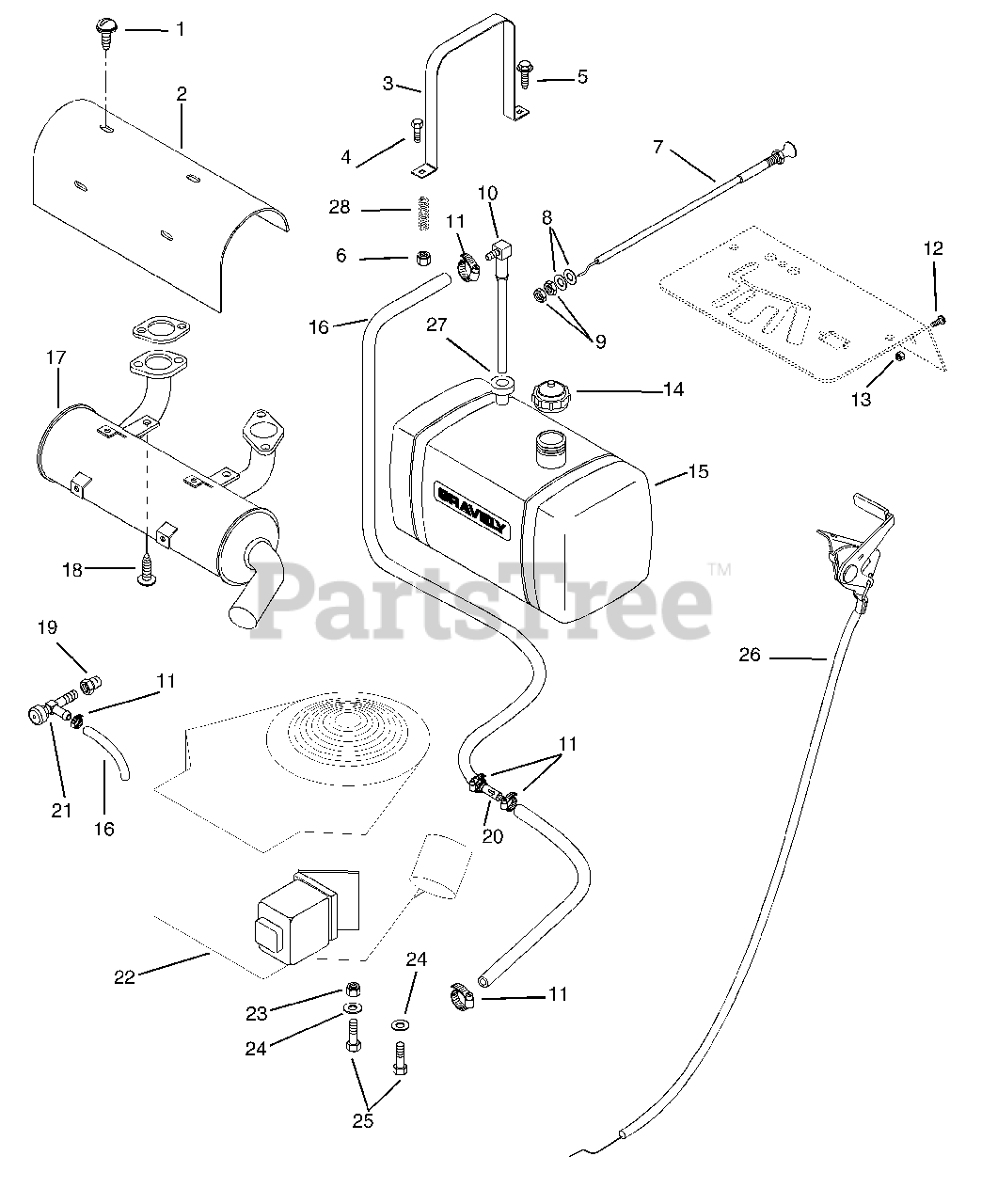

988085 - Gravely Pro 200 Walk-Behind Mower Power Unit, 18hp Robin Subaru (SN: 010000 & Above) Fuel And Exhaust System - 18 H.P. Units Parts Diagram

Pro 200 Walk-Behind Mower Power Unit, 18hp Robin Subaru

Fuel And Exhaust System - 18 H.P. Units Parts Diagram

  • Title

1

Gravely 07413200

SCR-TAP W/ WASHER (BULK)

$5.49

$

Usually ships in 4-12 days

0

2

Gravely 08898000

HEAT SHIELD, CV18-25

$56.99

$

Usually ships in 4-12 days

0

3

Gravely 049338

STRP,FUEL TANK
(Superseded to 08835900)

$120.99

$

In Stock, only 1 left!

0

4

Gravely 05964700

BLT-HEX .25-20X1.75 GR5 YWZC
(Superseded to 05901935)

$2.49

$

In Stock, Qty 12

0

5

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

6

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 035137

CONTROL,CHOKE
(Superseded to 06924800)

$

$

Not available

8

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, only 3 left!

0

10

Gravely 088936

FITTING, TANK
(Superseded to 08893600)

$21.99

$

Usually ships in 4-12 days

0

11

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 20+

0

12

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 048856

CAP, FUEL TANK
(Superseded to 07533400)

$23.99

$

Usually ships in 4-12 days

0

15

Gravely 088933

FUEL TANK
(Superseded to 08893300)

$

$

Not available

16

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 09208900

MUFFLER

$

$

Not available

18

Gravely 07413100

SCR-TAP M6-1 X 25MM (BULK)

$

$

Not available

19

Gravely 035328

ADAPTER, OIL DRAIN
(Superseded to 03493100)

$6.49

$

Usually ships in 4-12 days

0

20

Gravely 040742

FILTER,FUEL
(Superseded to 08811700)

$10.99

$

Usually ships in 4-12 days

0

21

Gravely 035329

DRAIN, 1/2" OIL
(Superseded to 00429000)

$40.99

$

In Stock, only 3 left!

0

22

Gravely 08256600

ENGINE, ROBIN 18HP EH63V

$

$

Not available

23

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 10

0

26

Gravely 06943700

CABLE, CONTROL

$62.99

$

Usually ships in 4-12 days

0

27

Gravely 050246

BSHG-FLG .375 X 1.062 X .625 R
(Superseded to 07511400)

$3.99

$

In Stock, Qty 20+

0

28

Gravely 011779

SG-COMP .125X.78X1.00 YWZ
(Superseded to 08327000)

$16.99

$

In Stock, only 3 left!

0
