988085 - Gravely Pro 200 Walk-Behind Mower Power Unit, 18hp Robin Subaru (SN: 010000 & Above)

Pro 200 Walk-Behind Mower Power Unit, 18hp Robin Subaru

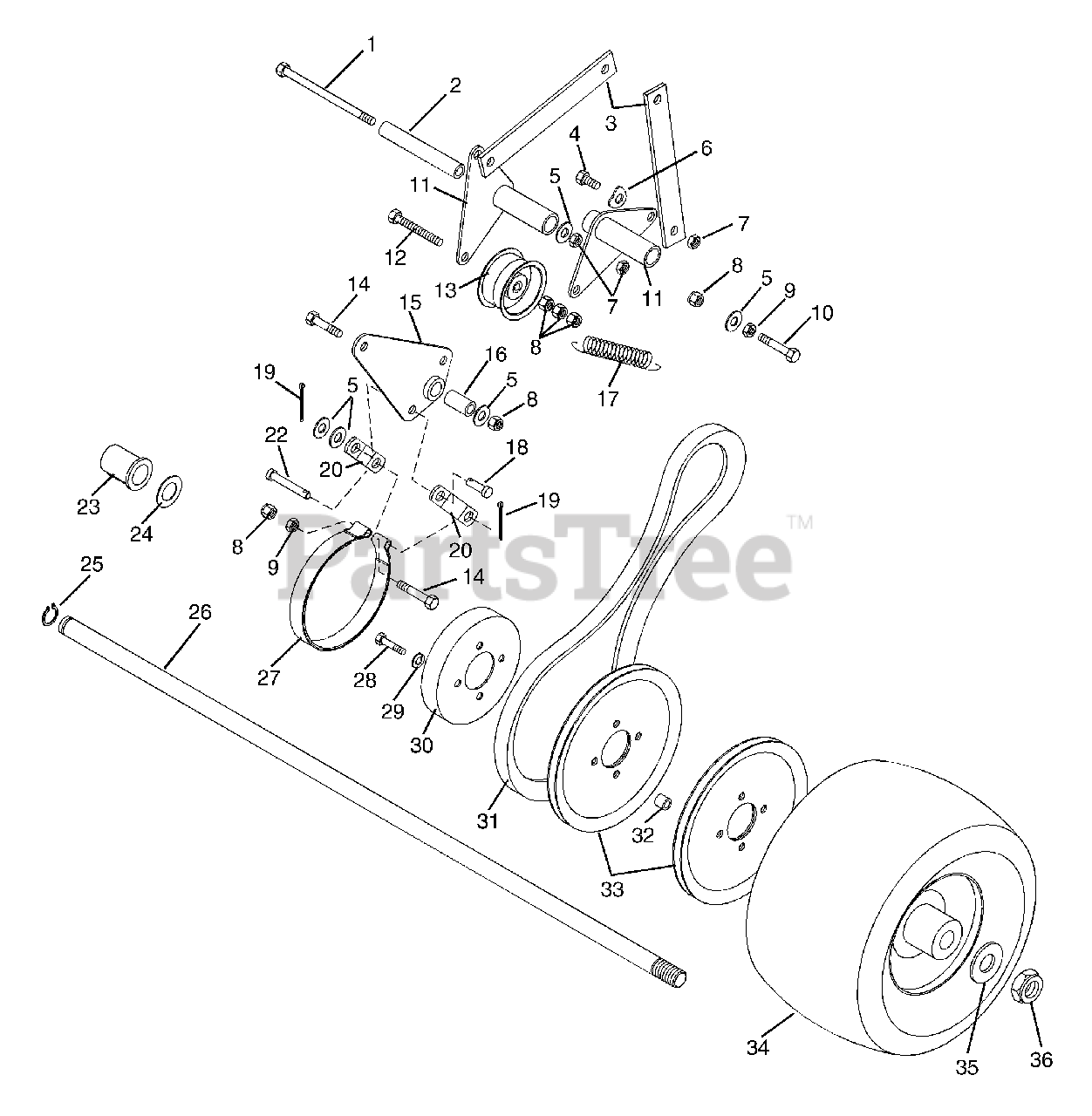

988085 - Gravely Pro 200 Walk-Behind Mower Power Unit, 18hp Robin Subaru (SN: 010000 & Above) > Parts Diagrams (14) > Wheel Drive

  • Title
05957700

1

Bolt-Hex .38-16 x 5.00

Part# 05957700

OEM Warranty Repair Part for Gravely

Not available

049665

2

Bush, Steel .385 x .610 x 3.85

Part# 049665 (Superseded to 08836700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $40.53

049668

3

Strap, Wheel Clutch

Part# 049668 (Superseded to 08836800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

05959400

4

Bolt-Hex .38-16 x .75 Grade 5

Part# 05959400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

06436200

5

Washer-Flat-Steel .406 x .812 x .065

Part# 06436200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

041623

6

Washer-Spring .375

Part# 041623 (Superseded to 06433000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06535300

7

Nut-Locking-Center .625-10

Part# 06535300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

06529600

8

Nut-Locking-Nylon .375-16

Part# 06529600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06529400

9

Nut-Hex .375-16

Part# 06529400 (Superseded to 06500917)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

05962900

10

Bolt-Hex .38-16 x 2.25 Grade 5

Part# 05962900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

049266

11

Weldment, Wheel Clutch Arm

Part# 049266 (Superseded to 08834100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $39.69

05957800

12

Bolt-Hex .38-16 x 3.0 Grade 5

Part# 05957800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

048870

13

Sheave 3.25 x 1.25

Part# 048870 (Superseded to 07318400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $22.25

05963300

14

Bolt-Hex .38-16 x 2.00 Grade 5

Part# 05963300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

049036

15

Weldment, Brake Arm

Part# 049036 (Superseded to 08832500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

049027

16

Bushing, Sleeve .391 x .622 x .950

Part# 049027 (Superseded to 08833400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

034400

17

Spring-Tension .069 x .62 x 3.50

Part# 034400 (Superseded to 08332000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $11.12

06814800

18

Pin-Clevis .38 x .75

Part# 06814800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06707300

19

Pin-Cotter .12 x .75

Part# 06707300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

049026

20

Link, Brake Arm

Part# 049026 (Superseded to 08831951)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

06535400

21

Nut, Locking 3/4 -10

Part# 06535400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

011718

22

Pin-Clevis .372 x 1.25

Part# 011718 (Superseded to 06814900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

049969

23

Bushing-Flange 1.010 x 1.38 x 1.4 x 1.65

Part# 049969 (Superseded to 05517900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

017959

24

Washer-Thrust 1.55 x 1.002 x .093

Part# 017959 (Superseded to 06426500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

017980

25

Ring-Retaining-External .906 x .078

Part# 017980 (Superseded to 05707300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

049034

26

Shaft, Axle

Part# 049034 (Superseded to 08832300)

OEM Warranty Repair Part for Gravely

Not available

088806

27

Assembly, Brake Band, Pro

Part# 088806 (Superseded to 08880600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $46.12

05952400

28

Bolt-Hex .31-18 x 1.50 Grade 5

Part# 05952400

OEM Warranty Repair Part for Gravely

Not available

120214

29

Washer-Lock External .375 x .050

Part# 120214 (Superseded to 06308600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

049015

30

Drum, Brake

Part# 049015 (Superseded to 08863900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $27.89

049029

31

V-Belt, Wheel Drive Set (2)

Part# 049029 (Superseded to 07222400)

Note: (2)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $53.61

048868

32

Bushing, Sleeve .385 x .625 x .475

Part# 048868 (Superseded to 08809500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

049033

33

Pulley-V 9.00 x 3.75

Part# 049033 (Superseded to 07319700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $43.55

07147300

34

Tire/Wheel Assembly 13 x 6.50-6

Part# 07147300 (Superseded to 07100239)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $111.74

06441500

35

Washer-Flat-Steel .813 x 1.370 x .100

Part# 06441500

OEM Warranty Repair Part for Gravely

Not available

06535400

36

Nut-Locking-Center .75-10

Part# 06535400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53
