988085 - Gravely Pro 200 Walk-Behind Mower Power Unit, 18hp Robin Subaru (SN: 010000 & Above) Wiring Diagram - 18 H.P. Parts Diagram

Pro 200 Walk-Behind Mower Power Unit, 18hp Robin Subaru

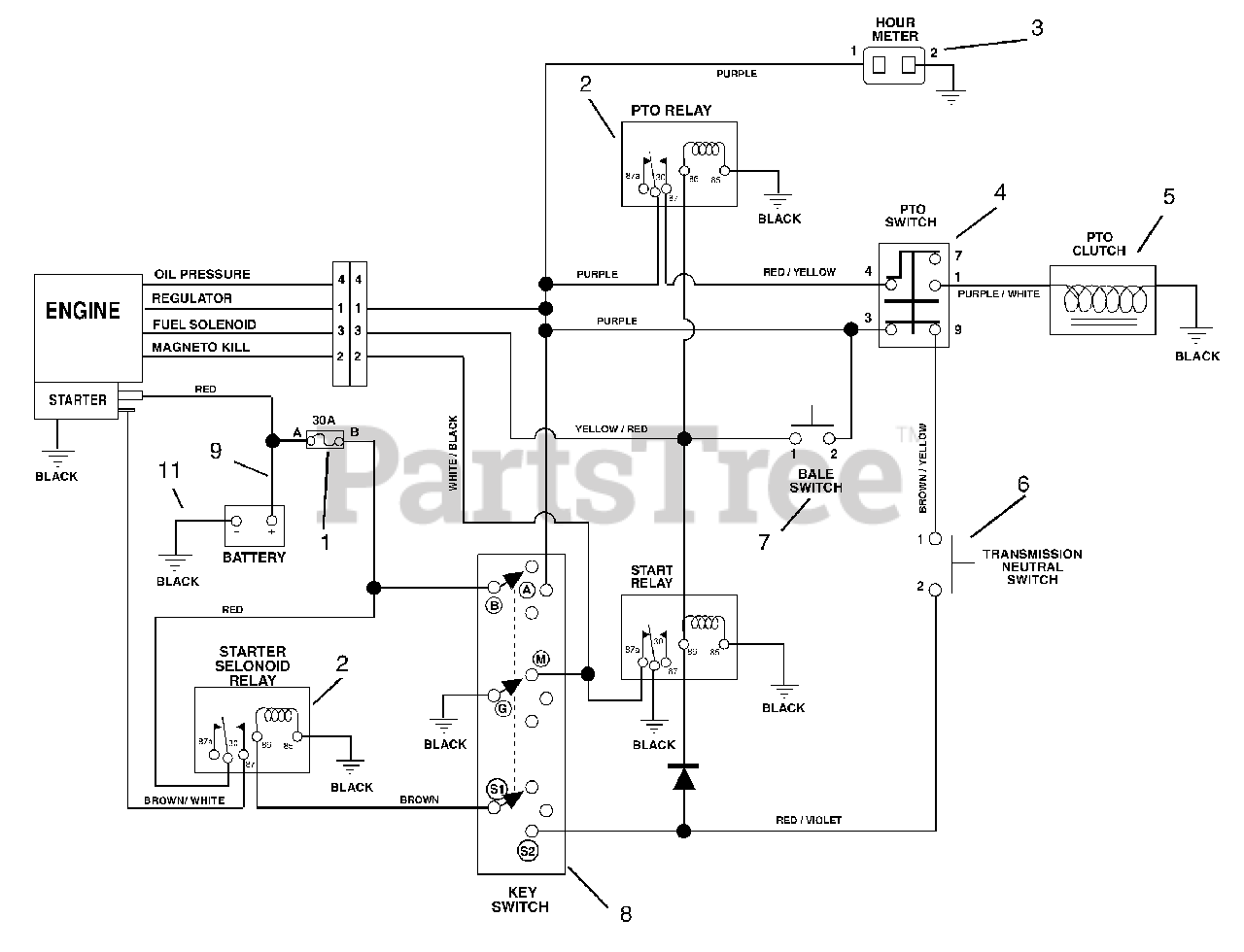

Wiring Diagram - 18 H.P. Parts Diagram

  • Title

1

Fuse 30 AMP

$

$

Not available

2

Gravely 03042800

RELAY
(Superseded to 00432101)

$27.99

$

In Stock, Qty 20+

0

3

Gravely 038256

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$26.99

$

In Stock, Qty 20+

0

4

Gravely 00522100

SWITCH, CLUTCH WITH RETAINER
(Superseded to 01545600)

$28.99

$

In Stock, Qty 20+

0

5

Gravely 03357900

CLUTCH, ELECTRIC - WARNER

$523.99

$

Usually ships in 4-12 days

0

6

Gravely 034640

SWITCH, NEUTRAL START N.C.
(Superseded to 08803700)

Note: (N.C.)

$37.99

$

Usually ships in 4-12 days

0

7

Gravely 09251900

SWITCH-SINGLE POLE N.O.W/COVER

$23.99

$

Usually ships in 4-12 days

0

8

Gravely 03602300

KEY SWITCH

$26.99

$

In Stock, Qty 9

0

9

Gravely 08987000

CBL,BATTERY TO SOLENOID

$51.99

$

Usually ships in 4-12 days

0

10

Gravely 049101

CBL,BATTERY TO SOLENOID
(Superseded to 08987000)

$51.99

$

Usually ships in 4-12 days

0

11

Gravely 050383

CBL,NEGATIVE BATTERY 20.00
(Superseded to 08840400)

$19.99

$

Usually ships in 4-12 days

0
