988087 - Gravely Pro 200 Walk-Behind Mower Power Unit, 14hp Kawasaki (SN: 000101 - 009999) PTO Clutch Linkage Parts Diagram

Pro 200 Walk-Behind Mower Power Unit, 14hp Kawasaki

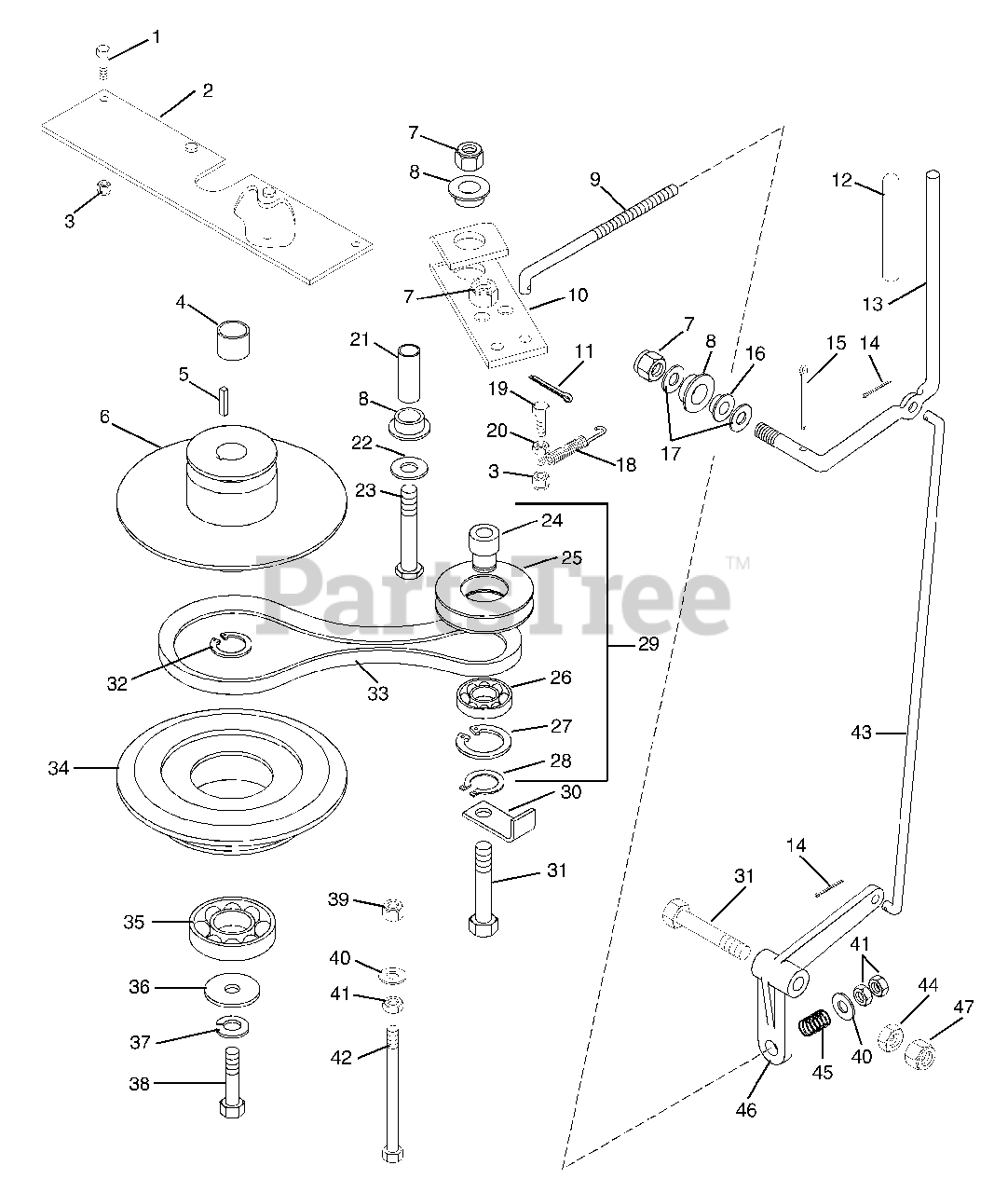

PTO Clutch Linkage Parts Diagram

  • Title

1

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 16

0

2

Gravely 050777

Weldment, Belt Guide
(Superseded to 08841500)

$26.99

$

Usually ships in 4-12 days

0

3

Gravely 06529800

Nut-Locking-Nylon .312-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 042540

Spacer, Manual Start
(Superseded to 08839000)

$5.99

$

Usually ships in 4-12 days

0

5

Gravely 018345

Key-Square .248 x 1.25 x .248
(Superseded to 06606900)

$2.99

$

Usually ships in 4-12 days

0

6

Gravely 041839

Hub, PTO & Drive Clutch
(Superseded to 08814600)

$543.99

$

In Stock, only 1 left!

0

7

Gravely 06536300

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06500827)

$3.99

$

In Stock, only 3 left!

0

8

Gravely 010174

Bushing-Flange .762 x 1.0 x .580 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

9

Gravely 041334

Rod, PTO Clutch Actuating
(Superseded to 08876200)

$200.99

$

In Stock, only 1 left!

0

10

Gravely 051887

Arm, Idler Pivot
(Superseded to 08846200)

$

$

Not available

11

Gravely 06707300

Pin-Cotter .12 x .75

$0.99

$

In Stock, Qty 9

0

12

Gravely 043196

Grip, PTO Lever
(Superseded to 07528200)

$9.99

$

Usually ships in 4-12 days

0

13

Gravely 049291

Lever, PTO Actuating
(Superseded to 08878400)

$

$

Not available

14

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 5

0

15

Gravely 06706900

Pin-Cotter .188 x 1.25

$0.99

$

In Stock, Qty 5

0

16

Gravely 034738

Bushing-Flange .515 x .750 x .745 x 1.00
(Superseded to 05521100)

$2.49

$

In Stock, Qty 9

0

17

Gravely 06441000

Washer-Flat-Steel .531 x .750 x .100
(Superseded to 06401202)

$2.99

$

In Stock, Qty 16

0

18

Gravely 034385

Spring-Tension .061 x .50 x 3.5
(Superseded to 08331900)

$30.99

$

In Stock, only 1 left!

0

19

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

20

Gravely 06529200

Nut-Hex .312-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

21

Gravely 041992

Bushing, Steel .560 x .745 x 2.04
(Superseded to 08815100)

$21.99

$

Usually ships in 4-12 days

0

22

Gravely 06441900

Washer-Flat-Steel .531 x 1.062 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 05965500

Bolt,Hex 1/2-13 x 2.75
(Superseded to 05901720)

$4.99

$

Usually ships in 4-12 days

0

24

Gravely 039327

Bushing, Flange .515 x .787 x 1.41
(Superseded to 08810700)

$102.99

$

Usually ships in 4-12 days

0

25

Gravely 038896

Sheave, Idler
(Superseded to 08744300)

$129.99

$

Usually ships in 4-12 days

0

26

Gravely 038898

Bearing-Ball 1.85 x .787 x .55
(Superseded to 05425100)

$51.99

$

In Stock, only 2 left!

0

27

Gravely 018960

Ring-Retaining-Internal 2.054 x .062
(Superseded to 05713100)

$3.99

$

Usually ships in 4-12 days

0

28

Gravely 039331

Ring-Retaining-Truarc
(Superseded to 00102214)

$3.49

$

In Stock, only 1 left!

0

29

Gravely 039336

Assembly, Idler Sheave
(Superseded to 08810900)

$262.99

$

Usually ships in 4-12 days

0

30

Gravely 039330

Guard, Belt
(Superseded to 08810800)

$55.99

$

Usually ships in 4-12 days

0

31

Gravely 05966600

Bolt-Hex .50-13 x 2.50 Grade 5
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

32

Gravely 031624

Ring-Retaining
(Superseded to 05717200)

$2.99

$

Usually ships in 4-12 days

0

33

Gravely 043213

V-Belt A-Section
(Superseded to 07225000)

$34.99

$

In Stock, only 1 left!

0

34

Gravely 041353

Sheave, Mower Clutch
(Superseded to 08814000)

$339.99

$

Usually ships in 4-12 days

0

35

Gravely 035330

Bearing-Ball 1.57 x 3.15 x .71
(Superseded to 05420900)

$193.99

$

In Stock, only 1 left!

0

36

Gravely 044379

Washer-Special .469 x 2.000 x .250
(Superseded to 06401111)

$6.99

$

In Stock, Qty 20+

0

37

Gravely 06309300

Washer-Lock .44 Reg.
(Superseded to 06300121)

$2.99

$

In Stock, only 2 left!

0

38

Gravely 05968300

Bolt-Hex 10MM x 1.5 x 60MM

$3.99

$

Usually ships in 4-12 days

0

38

Gravely 05964600

Bolt-Hex .44-20 x 2.50
(Superseded to 05902017)

$2.49

$

In Stock, only 1 left!

0

39

Gravely 06529600

Nut-Locking-Nylon .375-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

41

Gravely 06529400

Nut-Hex .375-16
(Superseded to 06500917)

$0.99

$

In Stock, only 1 left!

0

42

Gravely 06529400

Bolt-Hex .38-16 x 4.00
(Superseded to 06500917)

$0.99

$

In Stock, only 1 left!

0

43

Gravely 049345

Rod, PTO Control
(Superseded to 08836400)

$32.99

$

Usually ships in 4-12 days

0

44

Gravely 06537300

Nut-Jam .50-13
(Superseded to 06500814)

$3.99

$

In Stock, only 2 left!

0

45

Gravely 011779

Spring-Compression .125 x .78 x 1.00
(Superseded to 08327000)

$15.99

$

In Stock, Qty 5

0

46

Gravely 049271

Lever, PTO Clutch
(Superseded to 08834400)

$

$

Not available

47

Gravely 06536300

Nut-Locking .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 3 left!

0
