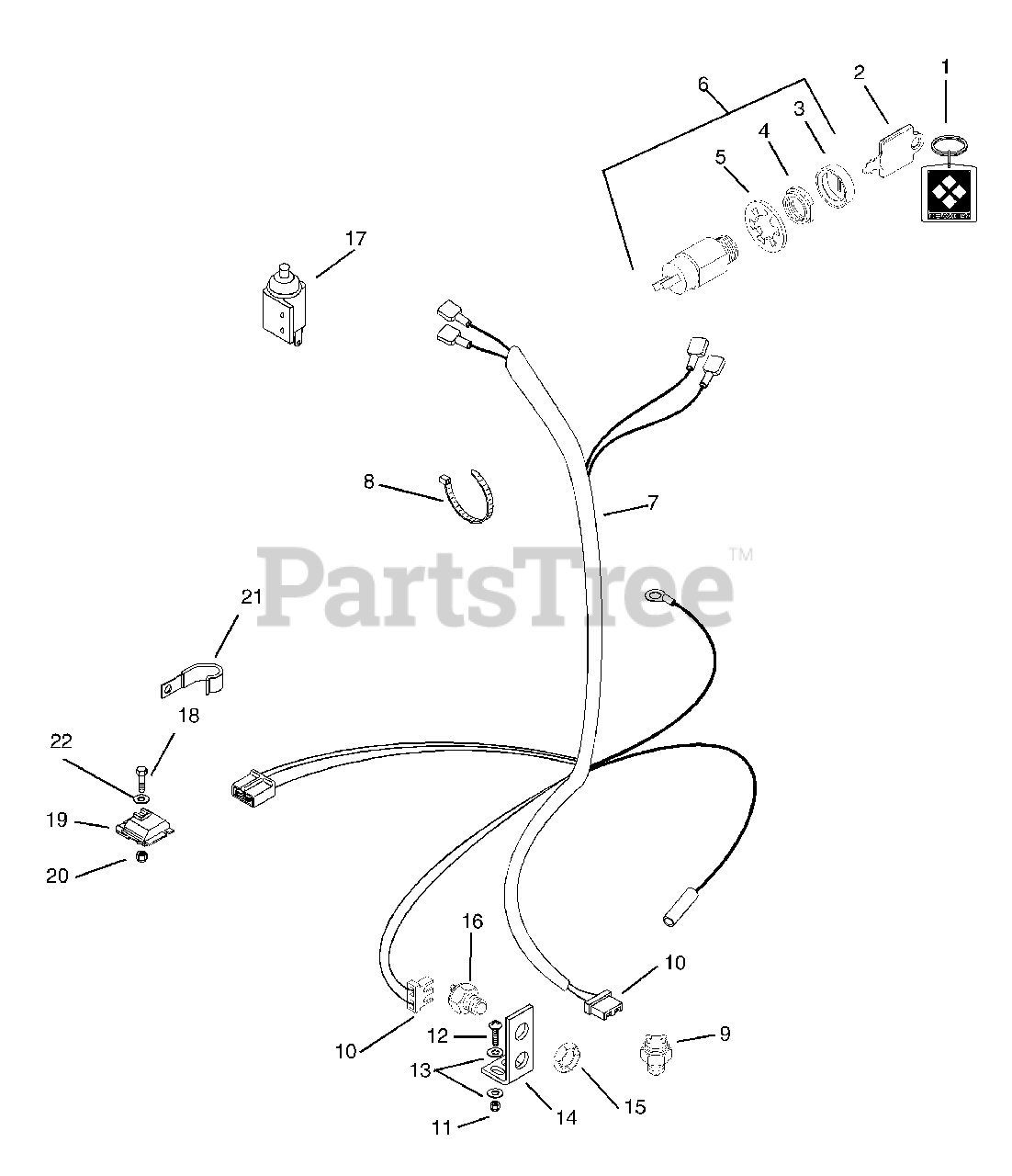

988087 - Gravely Pro 200 Walk-Behind Mower Power Unit, 14hp Kawasaki (SN: 010000 & Above) Electrical System - 14 H.P. Units Parts Diagram

Pro 200 Walk-Behind Mower Power Unit, 14hp Kawasaki

Electrical System - 14 H.P. Units Parts Diagram

  • Title

1

Gravely 045842

Key Chain
(Superseded to 03490000)

$

$

Not available

2

Gravely 045488

Ignition Switch Key
(Superseded to 02460700)

$10.99

$

In Stock, Qty 20+

0

3

Gravely 045490

Cap-Ignition Switch
(Superseded to 07517700)

$3.99

$

In Stock, Qty 19

0

4

Gravely 045497

Nut-Panel .625-32
(Superseded to 06517300)

$9.49

$

Usually ships in 4-12 days

0

5

Gravely 063019

Washer-Lock-Internal .625 x .045
(Superseded to 06306900)

$4.99

$

Usually ships in 4-12 days

0

6

Gravely 52406900

Key Switch Assembly

$39.99

$

In Stock, only 2 left!

0

7

Gravely 052881

Harness, Wiring Pro Recoil
(Superseded to 08851600)

$

$

Not available

8

Gravely 041634

Tie Wrap, Black
(Superseded to 07519900)

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 034640

Switch-Neutral Start N.C.
(Superseded to 08803700)

$35.99

$

Usually ships in 4-12 days

0

10

Gravely 042176

Connector, 2-Wire Switch
(Superseded to 08550000)

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 06536000

Nut-Locking 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06116900

Screw-Machine 10-24 x .750
(Superseded to 05901837)

$2.49

$

In Stock, only 4 left!

0

13

Gravely 06442700

Washer-Flat-Steel .219 x ..50 x .049
(Superseded to 06401123)

$1.49

$

Usually ships in 4-12 days

0

14

Gravely 034637

Bracket, Interlock Switch
(Superseded to 08803600)

$

$

Not available

15

Gravely 107354

Nut, Stamped .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 020916

Switch-Neutral Start
(Superseded to 02913100)

$46.99

$

In Stock, Qty 6

0

17

Gravely 09251900

Single Pole N.O. with Cover

$23.99

$

Usually ships in 4-12 days

0

18

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

19

Gravely 04901900

Module

$

$

Not available

20

Gravely 06529700

Nut-Locking-Center .250-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06916000

J-Clamp

$2.99

$

Usually ships in 4-12 days

0

22

Gravely 06412300

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0
