988087 - Gravely Pro 200 Walk-Behind Mower Power Unit, 14hp Kawasaki (SN: 010000 & Above) Frame Parts Diagram

Pro 200 Walk-Behind Mower Power Unit, 14hp Kawasaki

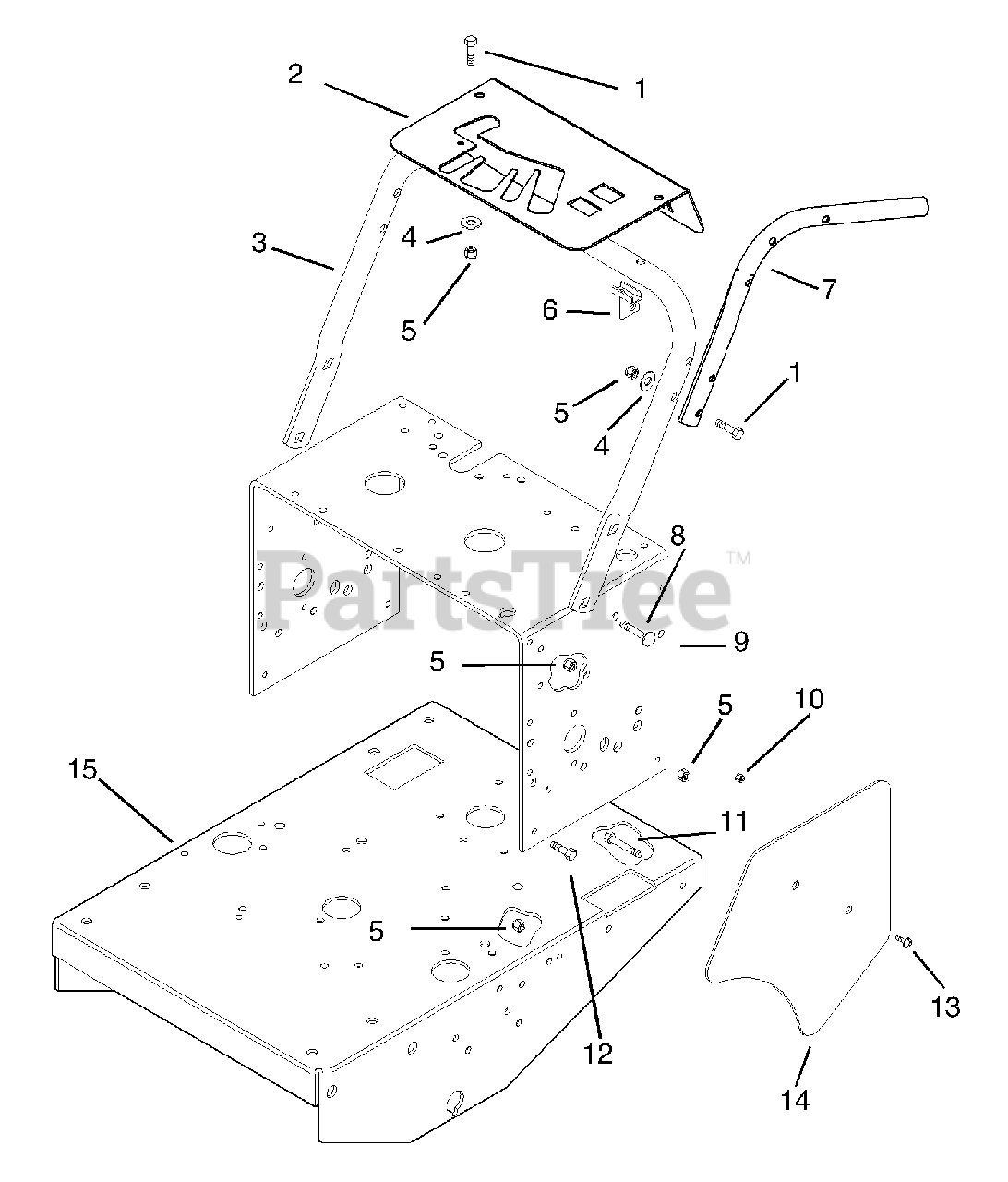

Frame Parts Diagram

  • Title

1

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

2

Gravely 049290

PNL,INSTRUMENT
(Superseded to 08835500)

Note: (Model 087)

$

$

Not available

Gravely 04905851

PANEL, INSTRUMENT

Note: (Model 085)

$14.99

$

Usually ships in 4-12 days

0

3

Gravely 049032

TUBE, HANDLEBAR MOUNTING
(Superseded to 08868500)

$

$

Not available

4

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 049272

WLDMT,PTO LEVER MTG
(Superseded to 08834500)

Note: (Model 087)

$17.99

$

Usually ships in 4-12 days

0

7

Gravely 04904851

HANDLE, L.H.

$176.99

$

Usually ships in 4-12 days

0

Gravely 04904751

HANDLE, R.H.

$176.99

$

Usually ships in 4-12 days

0

8

Gravely 06215500

BLT-RDHDSQNK .38-16X1.00 G2YZ
(Superseded to 06223600)

$2.99

$

In Stock, Qty 20+

0

9

Gravely 049031

SPRT,HANDLEBAR
(Superseded to 08832100)

$

$

Not available

10

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06118000

SCR-MCH .25-20X.75 HWH YWZC
(Superseded to 05901824)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 04901700

GUARD, BELT

$14.99

$

Usually ships in 4-12 days

0

15

Gravely 051938

WLDMT,PRO FRAME
(Superseded to 08866300)

$159.99

$

Usually ships in 4-12 days

0
