988087 - Gravely Pro 200 Walk-Behind Mower Power Unit, 14hp Kawasaki (SN: 010000 & Above) Steering Control Parts Diagram

Pro 200 Walk-Behind Mower Power Unit, 14hp Kawasaki

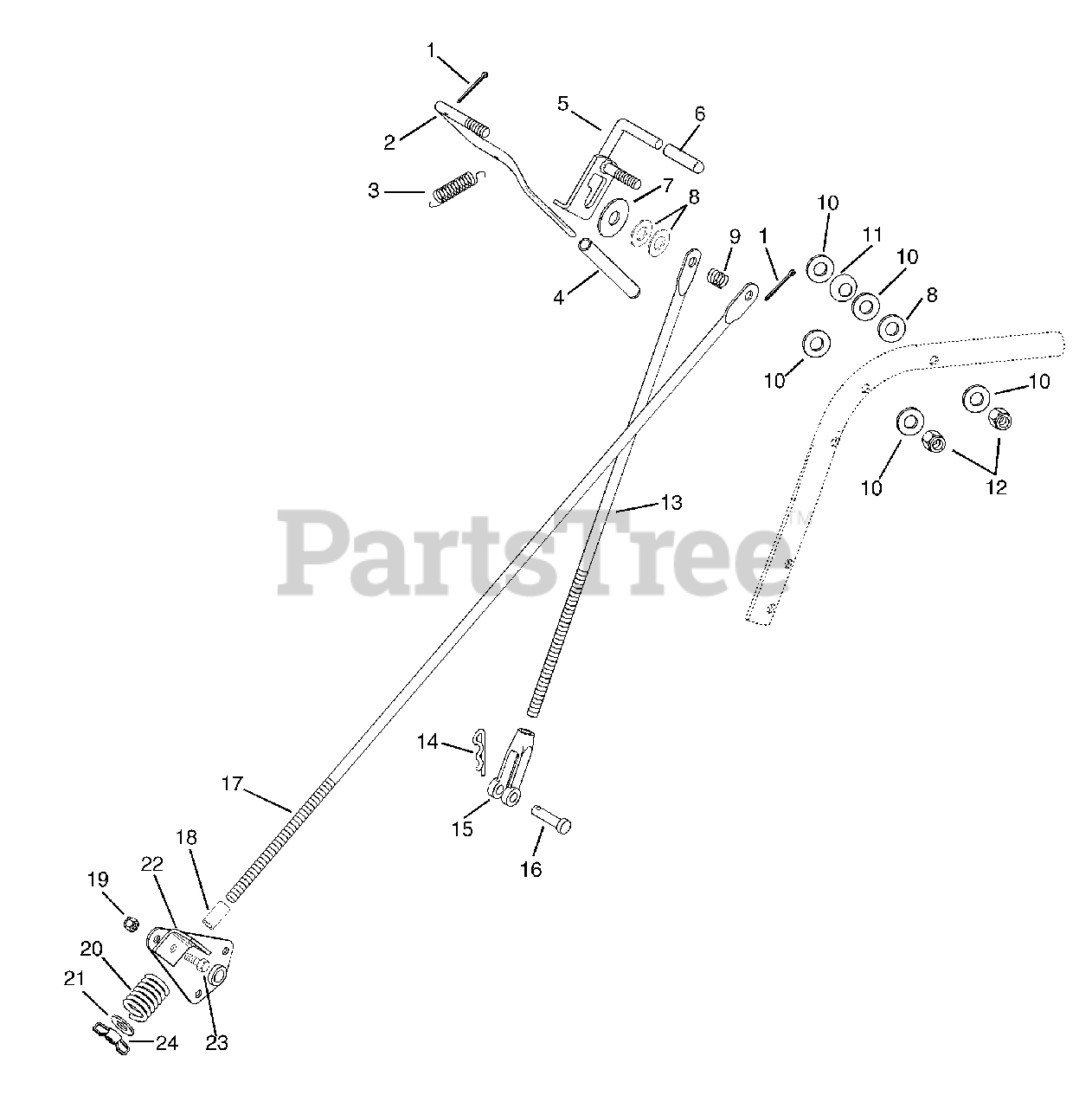

Steering Control Parts Diagram

  • Title

1

Gravely 06706900

PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, only 2 left!

0

2

Gravely 04905200

LEVER, HAND CONTROL LH

$81.99

$

In Stock, only 1 left!

0

3

Gravely 08339300

SG-TENS .041X.500X1.750

$6.49

$

In Stock, Qty 5

0

4

Gravely 043197

GRIP,HAND CLUTCH LEVER
(Superseded to 07528300)

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 042990

WLDMT,CLUTCH-BRAKE LOCK
(Superseded to 08820600)

$

$

Not available

6

Gravely 043192

TIP - BRAKE LOCK LEVER
(Superseded to 07503800)

$1.99

$

In Stock, only 2 left!

0

7

Gravely 06442600

WSHR-FL-STL 1.38X2.50X.136 YZ

$

$

Not available

8

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 043193

SG-COMP .045X.600X.750 WLD7.5
(Superseded to 08338800)

$7.49

$

Usually ships in 4-12 days

0

10

Gravely 020775

WSHR-FL-NY .375X.75X.060
(Superseded to 06433600)

$0.99

$

In Stock, only 4 left!

0

11

Gravely 041623

WSHR-SG .375 ID
(Superseded to 06433000)

$

$

Not available

12

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 049705

ROD,CLUTCH ACTUATING
(Superseded to 08878600)

$56.99

$

Usually ships in 4-12 days

0

14

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 034633

YOKE, .312-24 X 2.25
(Superseded to 07014700)

$15.99

$

Usually ships in 4-12 days

0

16

Gravely 121741

PIN-CLEV .31X.937 FLHD YWZC
(Superseded to 06814000)

$

$

Not available

17

Gravely 049337

ROD,BRAKE
(Superseded to 08878500)

$

$

Not available

18

Gravely 050094

BUSH .327X.411X2.0 ST
(Superseded to 08841300)

$

$

Not available

19

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 011779

SG-COMP .125X.78X1.00 YWZ
(Superseded to 08327000)

$16.99

$

In Stock, only 3 left!

0

21

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 049704

BRKT,BRAKE ROD
(Superseded to 08837000)

$5.99

$

Usually ships in 4-12 days

0

23

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

24

Gravely 06537100

NUT-NYLK WING .312-18 YWZC

$6.49

$

In Stock, only 1 left!

0
