988087 - Gravely Pro 200 Walk-Behind Mower Power Unit, 14hp Kawasaki (SN: 010000 & Above) Traction Clutch Linkage Parts Diagram

Pro 200 Walk-Behind Mower Power Unit, 14hp Kawasaki

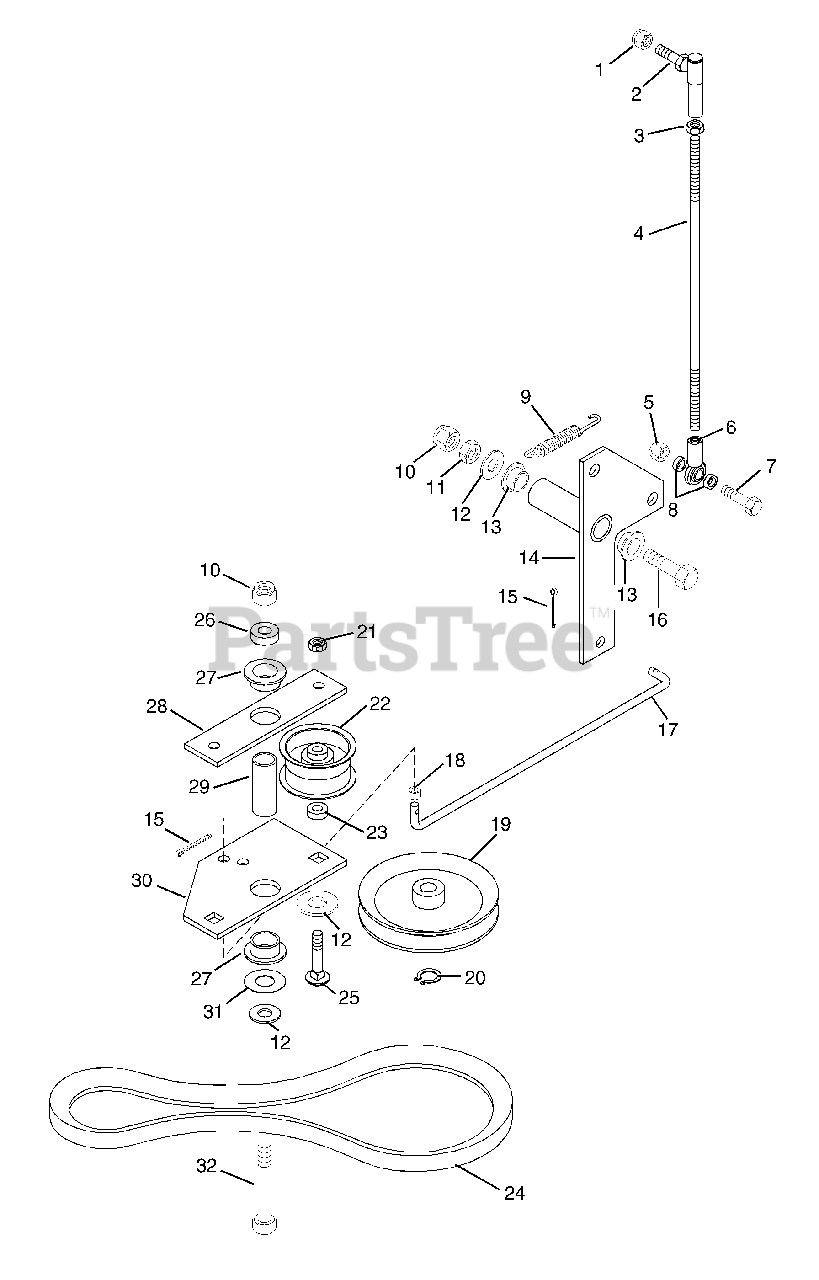

Traction Clutch Linkage Parts Diagram

  • Title

1

Gravely 06538800

NUT-LK-NYL .375-24 W/INSR YWZC

$2.49

$

Usually ships in 4-12 days

0

2

Gravely 021084

BALL JOINT
(Superseded to 02917100)

$29.99

$

In Stock, Qty 12

0

3

Gravely 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, only 3 left!

0

4

Gravely 043248

ROD,CLUTCH ACTUATING
(Superseded to 08877500)

$

$

Not available

5

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 043249

ROD END, 3/8 LH
(Superseded to 08821700)

$16.99

$

Usually ships in 4-12 days

0

7

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

8

Gravely 042989

BSHG-SLV .383X.50X.165
(Superseded to 05526700)

$

$

Not available

9

Gravely 011263

SG-TENS .095X.500X5.5 WLD60 YZ
(Superseded to 08353300)

$15.99

$

Usually ships in 4-12 days

0

10

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

11

Gravely 06537300

NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$4.99

$

Usually ships in 4-12 days

0

12

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 034738

BSHG-FLG .515X.750X.745X1.00NY
(Superseded to 05521100)

$2.99

$

In Stock, Qty 20+

0

14

Gravely 049094

WLDMT,CLUTCH ARM
(Superseded to 08833600)

$17.99

$

Usually ships in 4-12 days

0

15

Gravely 06706900

PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, only 2 left!

0

16

Gravely 05962300

BLT-HEX .50-13X4.50 GR5 YWZC
(Superseded to 05901932)

$6.99

$

In Stock, Qty 11

0

17

Gravely 049269

ROD,TRACTON CLUTCH
(Superseded to 08878100)

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 010155

BUSH.,S.380X.495X.437 ST
(Superseded to 08813800)

$3.49

$

Usually ships in 4-12 days

0

19

Gravely 034331

SHEAVE,TRANSMISSION
(Superseded to 07319400)

$60.99

$

Usually ships in 4-12 days

0

20

Gravely 015338

RG-RTNG-EXT .579X.035
(Superseded to 05711900)

$1.49

$

In Stock, Qty 15

0

21

Gravely 06535300

NUT-LK-CTR .62-11 YWZC

$2.99

$

In Stock, only 1 left!

0

22

Gravely 027829

IDLER-FLAT 2.25X.38
(Superseded to 07317200)

$35.99

$

Usually ships in 4-12 days

0

23

Gravely 014672

BUSHING .406 X .750 X .188
(Superseded to 03488200)

$6.49

$

In Stock, only 2 left!

0

24

Gravely 052776

V-BELT, HA-RAW EDGE
(Superseded to 07223800)

$28.99

$

In Stock, only 2 left!

0

25

Gravely 126416

BLT-RDHDSQNK .38-16X1.75 G5YZ
(Superseded to 06200417)

$4.99

$

In Stock, Qty 11

0

26

Gravely 041324

BUSH.,S.790X1.00X.320 ST
(Superseded to 08841700)

$5.99

$

Usually ships in 4-12 days

0

27

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

$5.49

$

In Stock, Qty 15

0

28

Gravely 043199

PLT,IDLER
(Superseded to 08821300)

$5.99

$

Usually ships in 4-12 days

0

29

Gravely 041992

BUSH.,S.560X.745X2.04 ST
(Superseded to 08815100)

$22.99

$

Usually ships in 4-12 days

0

30

Gravely 04905951

PLATE, IDLER

$5.99

$

Usually ships in 4-12 days

0

31

Gravely 014998

WSHR-HDND-THRST .760X1.25X.094
(Superseded to 06413300)

$6.49

$

Usually ships in 4-12 days

0

32

Gravely 05959900

BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$5.49

$

In Stock, Qty 14

0
