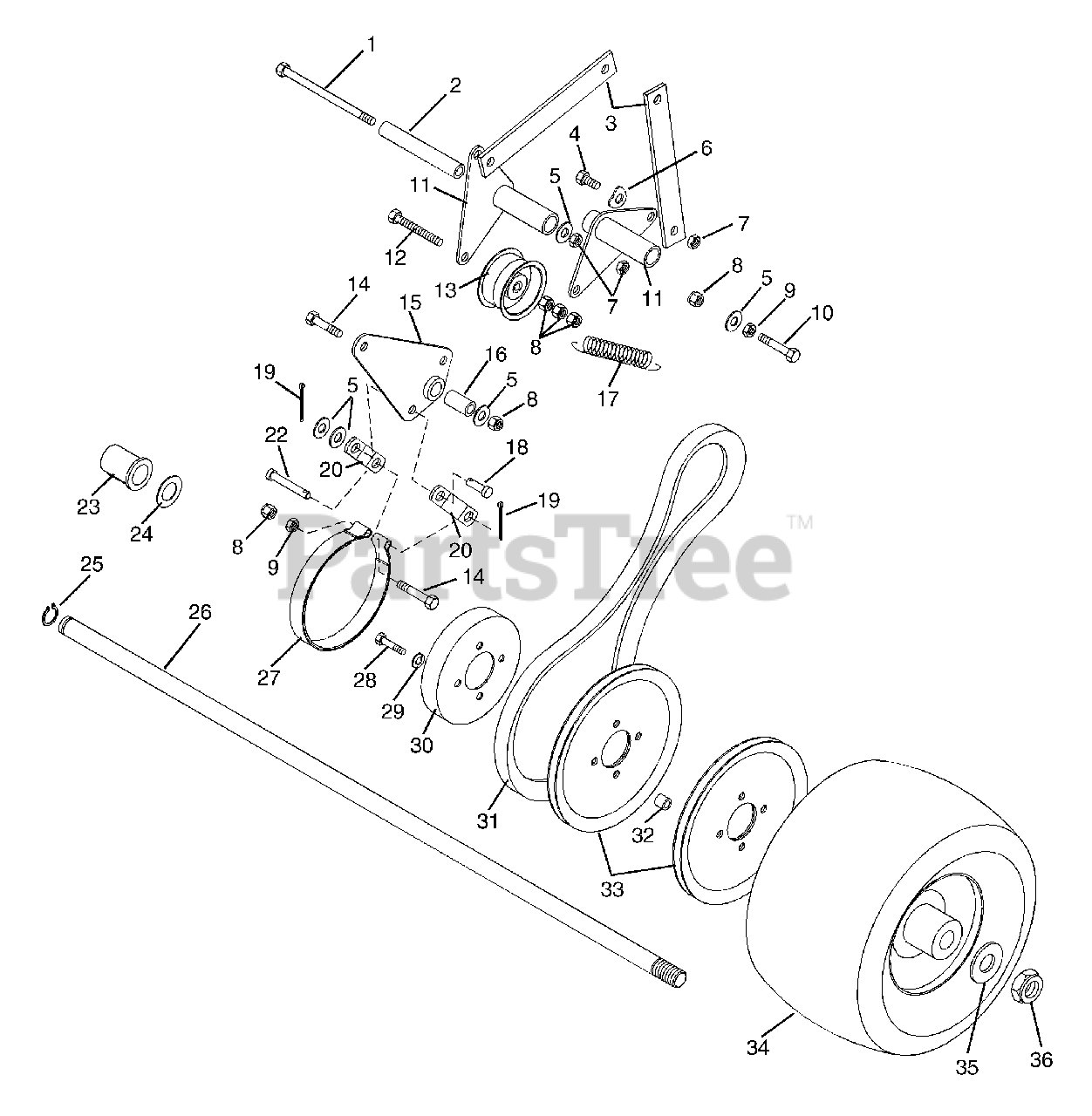

988087 - Gravely Pro 200 Walk-Behind Mower Power Unit, 14hp Kawasaki (SN: 010000 & Above) Wheel Drive Parts Diagram

Pro 200 Walk-Behind Mower Power Unit, 14hp Kawasaki

Wheel Drive Parts Diagram

  • Title

1

Gravely 05957700

BLT-HEX .38-16X5.00 GR5 YWZC
(Superseded to 05901927)

$2.99

$

Usually ships in 4-12 days

0

2

Gravely 049665

BUSH.,S.385X.610X3.85 ST
(Superseded to 08836700)

$

$

Not available

3

Gravely 049668

STRAP,WHEEL CLUTCH
(Superseded to 08836800)

$5.99

$

Usually ships in 4-12 days

0

4

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

5

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 041623

WSHR-SG .375 ID
(Superseded to 06433000)

$

$

Not available

7

Gravely 06535300

NUT-LK-CTR .62-11 YWZC

$2.99

$

In Stock, only 1 left!

0

8

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

11

Gravely 049266

WLDMT,WHL CLUTCH ARM
(Superseded to 08834100)

$

$

Not available

12

Gravely 05957800

BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.99

$

In Stock, Qty 13

0

13

Gravely 048870

IDLER 2.75X1.25
(Superseded to 07318400)

$23.99

$

In Stock, only 3 left!

0

14

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

15

Gravely 049036

WLDMT,BRAKE ARM
(Superseded to 08832500)

$11.99

$

Usually ships in 4-12 days

0

16

Gravely 049027

BUSH.,S.391X.622X.950 ST
(Superseded to 08833400)

$6.49

$

In Stock, Qty 5

0

17

Gravely 034400

SG-TENS .069X.62X3.50 WLD20
(Superseded to 08332000)

$11.99

$

Usually ships in 4-12 days

0

18

Gravely 06814800

PIN-CLEV .38X.75 YWZC

$3.99

$

In Stock, only 2 left!

0

19

Gravely 06707300

PIN-CTR .12X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 6

0

20

Gravely 049026

LINK,BRAKE ARM
(Superseded to 08831951)

$15.99

$

Usually ships in 4-12 days

0

21

Gravely 06535400

NUT-LK-CTR .75-10 YWZC

$6.49

$

Usually ships in 4-12 days

0

22

Gravely 011718

PIN-CLEV .38X1.25 YWZC
(Superseded to 06814900)

$4.99

$

In Stock, only 2 left!

0

23

Gravely 049969

BSHG-FLG 1.010X1.38X1.4X1.65
(Superseded to 05517900)

$6.49

$

In Stock, Qty 9

0

24

Gravely 017959

WSHR-THRST 1.55X1.002X.093
(Superseded to 06426500)

$25.99

$

In Stock, only 2 left!

0

25

Gravely 017980

RG-RTNG-EXT 1.00X.078
(Superseded to 05707300)

$3.49

$

In Stock, Qty 9

0

26

Gravely 049034

SHFT,AXLE
(Superseded to 08832300)

$

$

Not available

27

Gravely 088806

ASM, BRAKE BAND, PRO
(Superseded to 08880600)

$59.99

$

In Stock, Qty 7

0

28

Gravely 05952400

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.99

$

In Stock, Qty 15

0

29

Gravely 120214

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 049015

DRUM,BRAKE
(Superseded to 08863900)

$46.99

$

In Stock, only 1 left!

0

31

Gravely 049029

V-BELT, HA-COGGED (SET)
(Superseded to 07222400)

Note: (2)

$83.99

$

In Stock, only 4 left!

0

32

Gravely 048868

BUSH.,S.385X.625X.475 ST
(Superseded to 08809500)

$

$

Not available

33

Gravely 049033

PLY-V 9.00X3.75
(Superseded to 07319700)

$58.99

$

Usually ships in 4-12 days

0

34

Gravely 07147300

TIRE/WHEEL ASSY, 13X6.50-6
(Superseded to 07100239)

$162.99

$

In Stock, only 2 left!

0

35

Gravely 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, Qty 20+

0

36

Gravely 06535400

NUT-LK-CTR .75-10 YWZC

$6.49

$

Usually ships in 4-12 days

0
