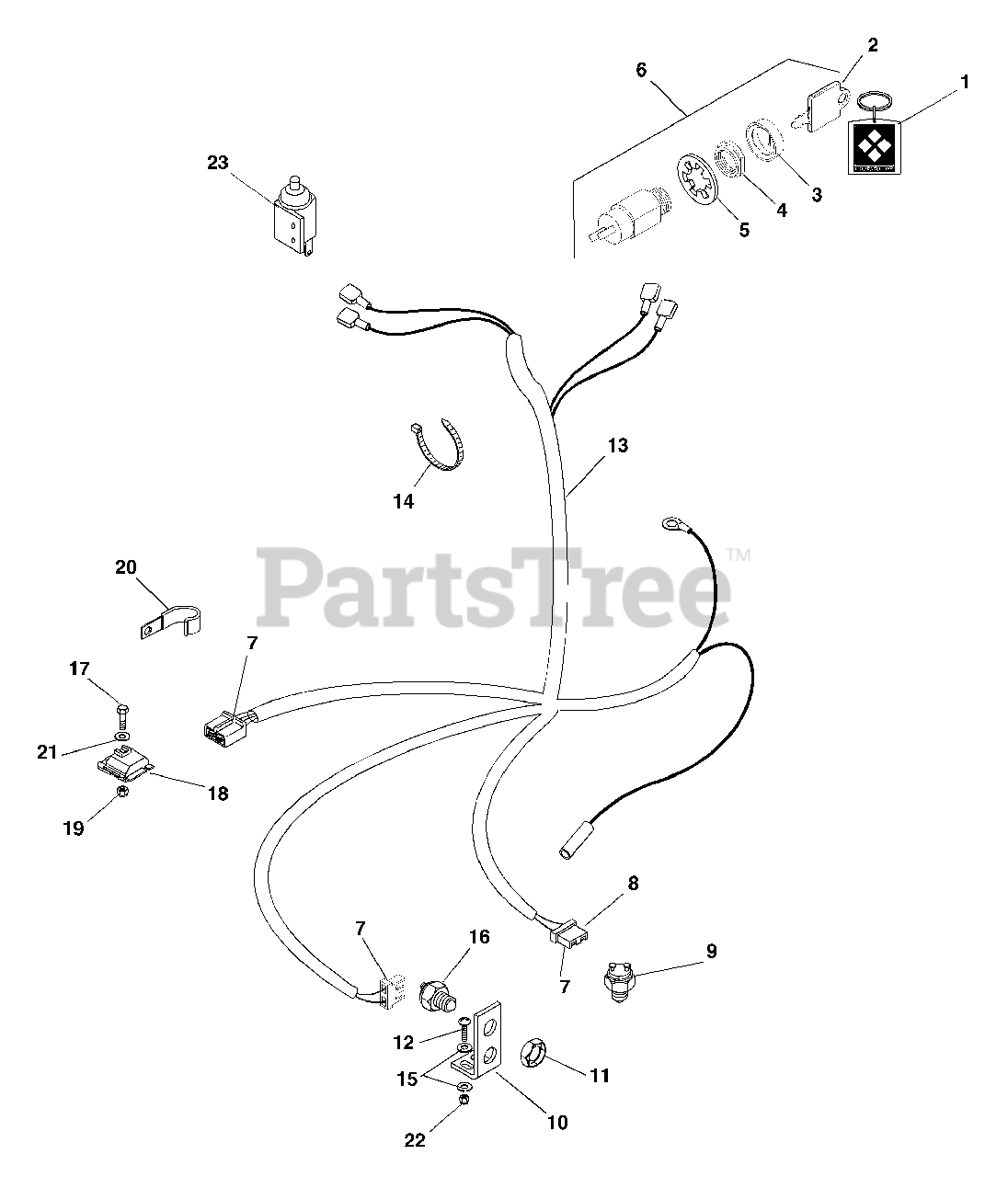

988088 - Gravely Pro 150 Walk-Behind Mower Power Unit, 14hp Kawasaki (SN: 010000 & Above) Electrical System Parts Diagram

Pro 150 Walk-Behind Mower Power Unit, 14hp Kawasaki

Electrical System Parts Diagram

  • Title

1

Gravely 045842

Key Chain
(Superseded to 03490000)

$

$

Not available

2

Gravely 045488

Ignition Switch Key
(Superseded to 02460700)

$7.99

$

In Stock, Qty 16

0

3

Gravely 045490

Cap, Ignition Switch
(Superseded to 07517700)

$3.99

$

In Stock, Qty 9

0

4

Gravely 045497

Nut, Panel .625-32
(Superseded to 06517300)

$7.99

$

In Stock, only 1 left!

0

5

Gravely 018586

Washer-Lock .625 Internal Tooth
(Superseded to 06306900)

$3.99

$

In Stock, only 1 left!

0

6

Gravely 02456500

Key Switch Assembly
(Superseded to 52406900)

$39.99

$

In Stock, only 1 left!

0

7

Gravely 038059

Terminal
(Superseded to 08540001)

$3.99

$

In Stock, only 4 left!

0

8

Gravely 042176

Connector, 2-Wire Switch
(Superseded to 08550000)

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 034640

Switch, Neutral Start (N.C.)
(Superseded to 08803700)

Note: (N.C.)

$34.99

$

In Stock, only 3 left!

0

10

Gravely 034637

Bracket, Interlock Switch
(Superseded to 08803600)

$

$

Not available

11

Gravely 107354

Nut, Stamped .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 06116900

Screw-Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 04905600

Wire Harness, Pro Recoil

$

$

Not available

14

Gravely 041634

Tie Wrap, Black
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 06442700

Washer-Flat-Steel .219 x .50 x .049
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

16

Gravely 020916

Switch-Neutral Start (N.O.)
(Superseded to 02913100)

Note: (N.O.)

$45.99

$

In Stock, only 1 left!

0

17

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

18

Gravely 08885800

Module, Interlock, Electric

$71.99

$

Usually ships in 4-12 days

0

19

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06916000

J-Clamp

$2.49

$

Usually ships in 4-12 days

0

21

Gravely 06412300

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06437200)

$0.99

$

In Stock, Qty 9

0

22

Gravely 06536000

Nut-Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

23

Gravely 09251900

Switch-Single Pole (N.O.) with Cover

Note: (N.O.) with Cover

$22.99

$

Usually ships in 4-12 days
