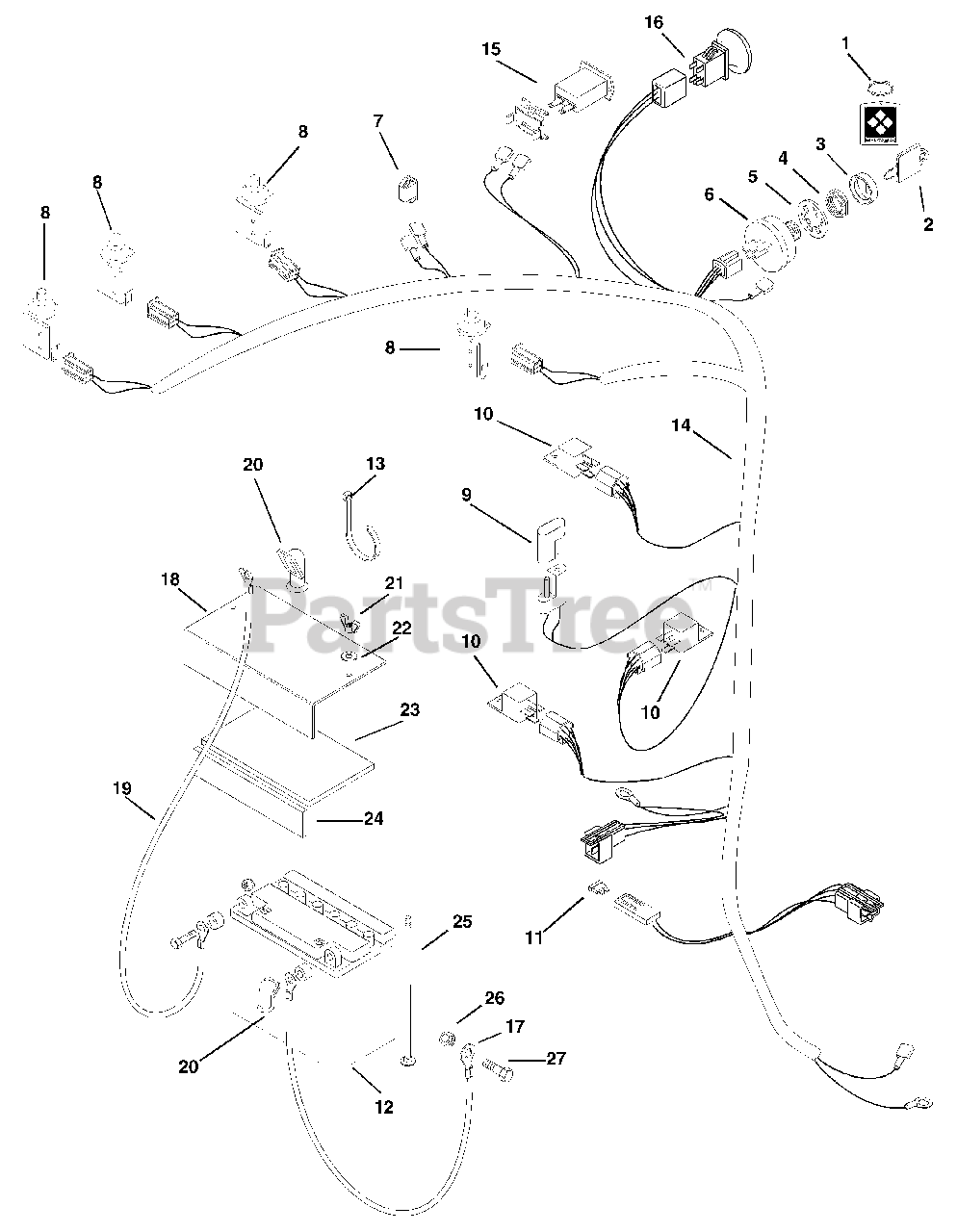

988090 - Gravely Pro 300 Walk-Behind Mower Power Unit, 22hp Robin Subaru (SN: 000101 & Above) Electrical System Parts Diagram

Pro 300 Walk-Behind Mower Power Unit, 22hp Robin Subaru

Electrical System Parts Diagram

  • Title

1

Gravely 045842

KEY CHAIN
(Superseded to 03490000)

$

$

Not available

2

Gravely 045488

KEY -W/CAP
(Superseded to 02460700)

$10.99

$

In Stock, Qty 20+

0

3

Gravely 045490

CAP - IGNITION SWITCH
(Superseded to 07517700)

$3.99

$

In Stock, Qty 19

0

4

Gravely 045497

NUT-PANEL .625-32 GRECO
(Superseded to 06517300)

$9.49

$

Usually ships in 4-12 days

0

5

Gravely 06301900

WSHR-LK-INT .625X.045 PL
(Superseded to 06306900)

$4.99

$

Usually ships in 4-12 days

0

6

Gravely 03602300

KEY SWITCH

$26.99

$

In Stock, Qty 20+

0

7

Gravely 050673

LIGHT, INDICATOR (RED)
(Superseded to 05128700)

$7.99

$

In Stock, Qty 9

0

8

Gravely 09251900

SWITCH-SINGLE POLE N.O.W/COVER

$23.99

$

Usually ships in 4-12 days

0

9

Gravely 03081700

MOLDED DIODE PLUG 1 AMP

$29.99

$

In Stock, Qty 6

0

10

Gravely 03042800

RELAY
(Superseded to 00432101)

$25.99

$

In Stock, Qty 20+

0

11

Gravely 00524600

FUSE, 30 AMP.

$

$

Not available

12

Gravely 041358

BATTERY,12 VOLT
(Superseded to 78801800)

$

$

Not available

13

Gravely 041634

TIE WRAP, BLACK LG 7.31
(Superseded to 07519900)

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 04905500

WIRE HARNESS

$

$

Not available

15

Gravely 038256

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$25.99

$

In Stock, only 4 left!

0

16

Gravely 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 20+

0

17

Gravely 050383

CBL,NEGATIVE BATTERY 20.00
(Superseded to 08840400)

$18.99

$

Usually ships in 4-12 days

0

18

Gravely 049294

CVR,BATTERY
(Superseded to 08835800)

$

$

Not available

19

Gravely 049101

CBL,BATTERY TO SOLENOID
(Superseded to 08987000)

$51.99

$

In Stock, only 1 left!

0

20

Gravely 033847

BOOT, INSULATOR
(Superseded to 03384700)

$

$

Not available

21

Gravely 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$5.49

$

Usually ships in 4-12 days

0

22

Gravely 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

23

Gravely 050417

PAD,BATTERY
(Superseded to 08803400)

$7.49

$

Usually ships in 4-12 days

0

24

Gravely 050418

PAD,BATTERY
(Superseded to 08800600)

$

$

Not available

25

Gravely 06220400

@BLT-RDHDSQNK .25-20X7.00 G2YZ
(Superseded to 06200229)

$5.49

$

In Stock, only 2 left!

0

26

Gravely 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0
