988090 - Gravely Pro 300 Walk-Behind Mower Power Unit, 22hp Robin Subaru (SN: 000101 & Above) Gear Selector Parts Diagram

Pro 300 Walk-Behind Mower Power Unit, 22hp Robin Subaru

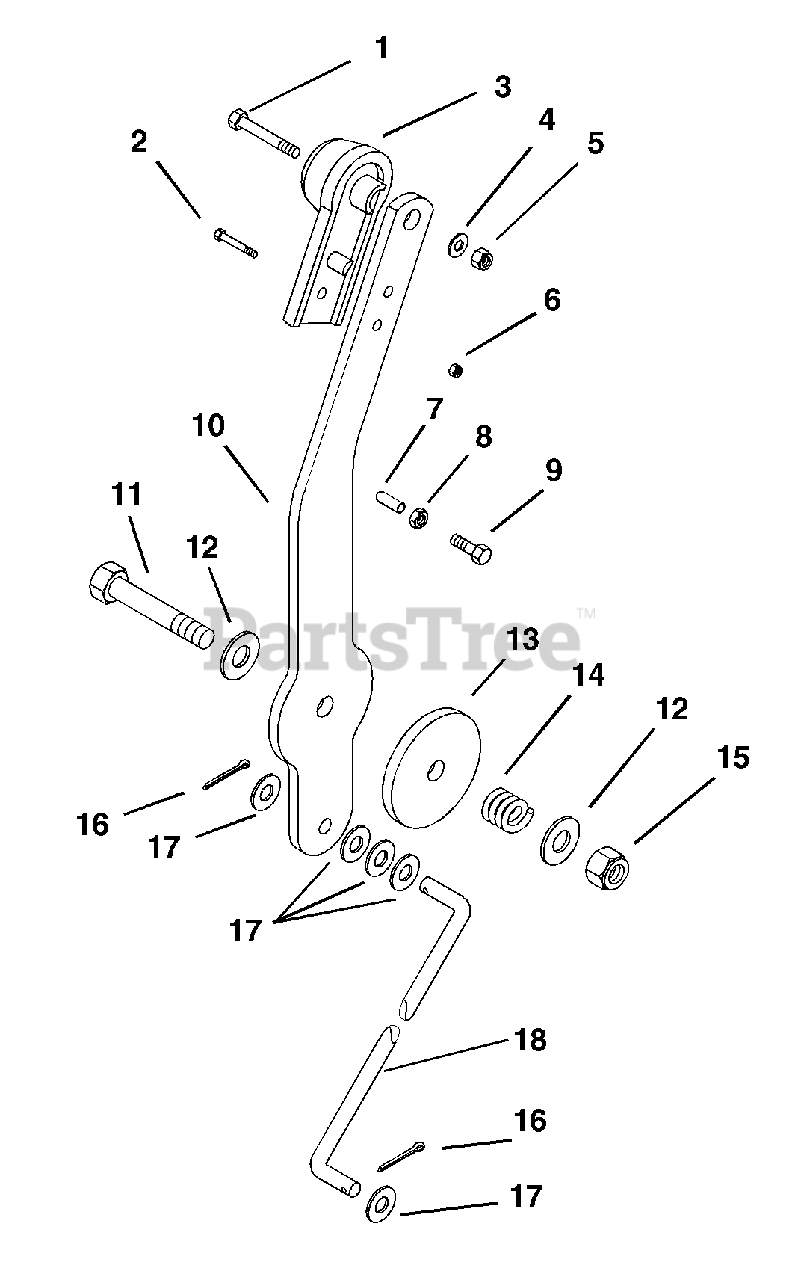

Gear Selector Parts Diagram

  • Title

1

Gravely 05952500

@BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.49

$

In Stock, Qty 8

0

2

Gravely 06110700

SCR-MCH 6-32X.625

$1.99

$

Usually ships in 4-12 days

0

3

Gravely 041252

KNOB,HANDLE CONTROL
(Superseded to 07525800)

$15.99

$

Usually ships in 4-12 days

0

4

Gravely 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

5

Gravely 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06538900

@NUT-LK-NYL 6-32 W/INSRT YWZC

$0.99

$

Usually ships in 4-12 days

0

7

Gravely 019362

CAP,
(Superseded to 07520600)

$

$

Not available

8

Gravely 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 7

0

9

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

10

Gravely 051128

LVR,SPEED CTL
(Superseded to 08843700)

$22.99

$

Usually ships in 4-12 days

0

11

Gravely 05966600

@BLT-HEX .50-13X2.50 GR5 YWZC
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

12

Gravely 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 051230

DISC,FRICTION MAT'L
(Superseded to 08844900)

$

$

Not available

14

Gravely 011779

SG-COMP .125X.78X1.00 YWZ
(Superseded to 08327000)

$15.99

$

In Stock, Qty 5

0

15

Gravely 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 3 left!

0

16

Gravely 06707000

@PIN-CTR .09X1.00 EXTPRSQCT YZ
(Superseded to 121224)

$0.99

$

Usually ships in 4-12 days

0

17

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 051718

ROD,SPEED CONTROL
(Superseded to 08879100)

$

$

Not available
