988090 - Gravely Pro 300 Walk-Behind Mower Power Unit, 22hp Robin Subaru (SN: 000101 & Above) Hydraulic System Parts Diagram

Pro 300 Walk-Behind Mower Power Unit, 22hp Robin Subaru

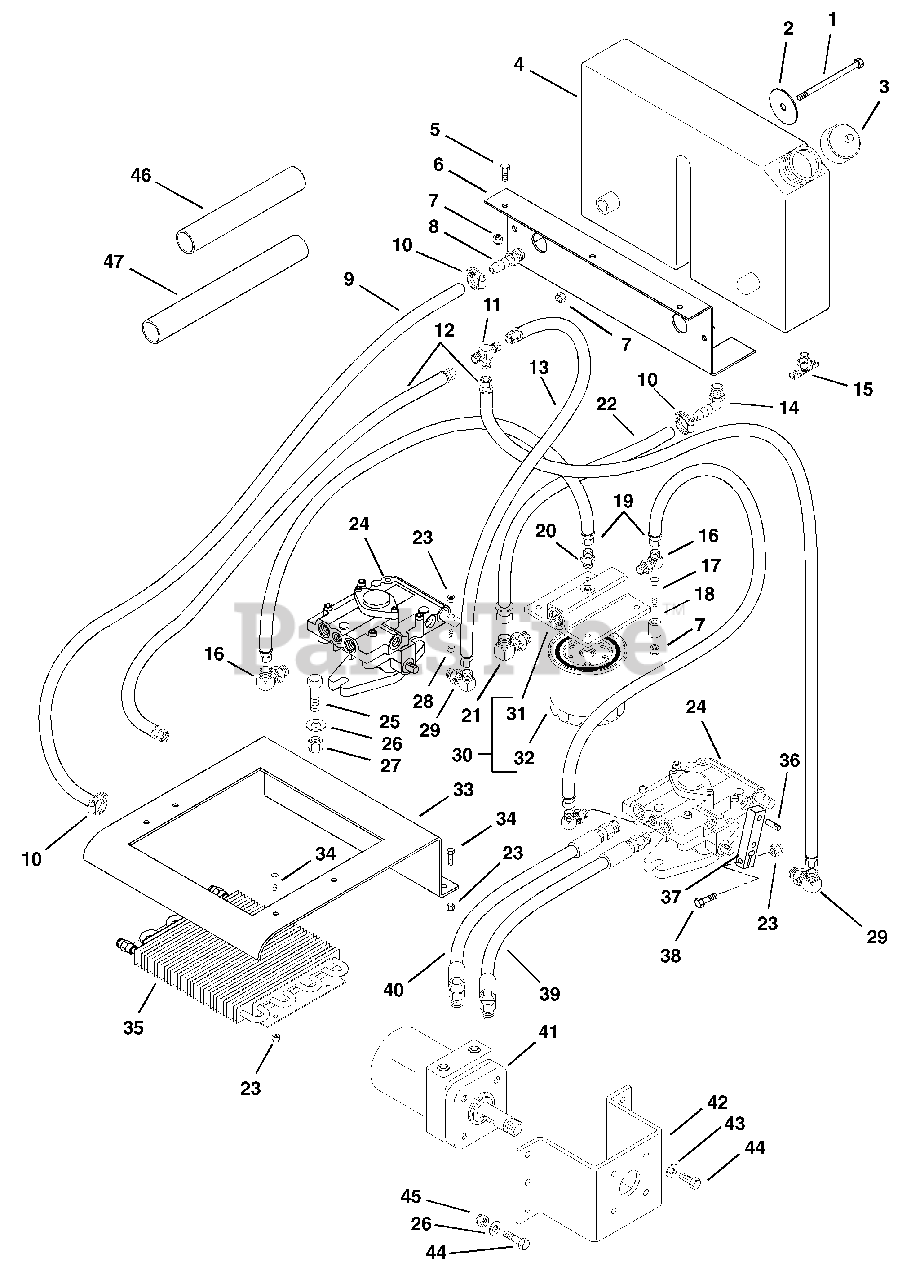

Hydraulic System Parts Diagram

  • Title

1

Gravely 05948000

@BLT-HEX .31-18X3.50 GR5 YWZC

$2.49

$

Usually ships in 4-12 days

0

2

Gravely 053122

WSHR,FL .344X3.0X .060
(Superseded to 08857300)

$

$

Not available

3

Gravely 044877

CAP,TANK
(Superseded to 08826200)

$21.99

$

Usually ships in 4-12 days

0

4

Gravely 053021

TANK,HYDRAULIC
(Superseded to 08868400)

$

$

Not available

5

Gravely 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 19

0

6

Gravely 053121

BRKT,HYD TANK MTG
(Superseded to 08857200)

$

$

Not available

7

Gravely 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 07032400

ADAPTOR, MALE 3/8X1/2

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 053105

HOSE, HYDRAULIC
(Superseded to 08856600)

$

$

Not available

10

Gravely 021247

CLAMP,.88 DIA. HOSE
(Superseded to 06923500)

$1.99

$

Usually ships in 4-12 days

0

11

Gravely 021799

ADPT-TEE .56-18
(Superseded to 07021500)

$30.99

$

Usually ships in 4-12 days

0

12

Gravely 039847

HOSE,HYD VALVE TO TANK
(Superseded to 08811300)

$39.99

$

Usually ships in 4-12 days

0

13

Gravely 053103

HOSE,PUMP TO TEE
(Superseded to 08856400)

$45.99

$

Usually ships in 4-12 days

0

14

Gravely 046116

FTG-ELBOW .50X.50
(Superseded to 07019800)

$

$

Not available

15

Gravely 053099

COCK-DRAIN .38X.69X1.25
(Superseded to 07018700)

$22.99

$

Usually ships in 4-12 days

0

16

Gravely 018826

ADPT 2503-4-4
(Superseded to 08800700)

$22.99

$

Usually ships in 4-12 days

0

17

Gravely 05957200

@BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.49

$

In Stock, Qty 14

0

18

Gravely 08880800

BUSH.,SPLIT .328X.462X.75 ST

$3.49

$

Usually ships in 4-12 days

0

19

Gravely 051281

HOSE,OIL FILTER TO PUMP
(Superseded to 08845200)

$

$

Not available

20

Gravely 021286

ADPT 0503-4-4
(Superseded to 08801500)

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 050961

ADPTR-HYD EL 3/4 "O" TO 3/4
(Superseded to 07018200)

$6.99

$

Usually ships in 4-12 days

0

22

Gravely 053104

HOSE,TANK TO OIL FILTER
(Superseded to 08856500)

$

$

Not available

23

Gravely 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 053330

PUMP, BDP-10L
(Superseded to 09279900)

$1238.99

$

Usually ships in 4-12 days

0

25

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 05967100

@BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$2.49

$

In Stock, only 2 left!

0

29

Gravely 018828

FTG, 90 9/16 MOR X 9/16 MJIC
(Superseded to 00313270)

$9.49

$

In Stock, only 1 left!

0

30

Gravely 051142

ASM,SPIN-ON LUBE
(Superseded to 08844700)

$

$

Not available

31

Gravely 051143

ASM,HEAD
(Superseded to 08157900)

$

$

Not available

32

Gravely 050968

ELEMENT
(Superseded to 08841800)

$39.99

$

Usually ships in 4-12 days

0

33

Gravely 08897700

OIL COOLER BRACKET

$20.99

$

Usually ships in 4-12 days

0

34

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

35

Gravely 053101

COOLER,OIL
(Superseded to 08856200)

$

$

Not available

36

Gravely 051889

PIN-DWL .312X1.25
(Superseded to 05808000)

$5.99

$

Usually ships in 4-12 days

0

37

Gravely 08880700

ARM, PUMP ACTUATING

$

$

Not available

38

Gravely 05947400

@BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$1.99

$

Usually ships in 4-12 days

0

39

Gravely 051232

KIT, PRO300 WHEEL MTR HOSE-SH
(Superseded to 58803900)

$168.99

$

Usually ships in 4-12 days

0

40

Gravely 051231

KIT, PRO300 WHEEL MTR HOSE -LG
(Superseded to 58803800)

$149.99

$

Usually ships in 4-12 days

0

41

Gravely 091117

MOTOR, HYD WHL (MF160933AAFB)
(Superseded to 09111700)

$626.99

$

Usually ships in 4-12 days

0

42

Gravely 051106

BRKT,WHEEL MOTOR
(Superseded to 08842400)

$14.99

$

Usually ships in 4-12 days

0

43

Gravely 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

44

Gravely 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, only 4 left!

0

45

Gravely 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

46

Gravely 052780

SLEEVE 12"
(Superseded to 09011400)

Note: (Models 307, 310)

$

$

Not available

47

Gravely 050692

SLEEVE 18"
(Superseded to 08787200)

Note: (Models 307, 310)

$

$

Not available
