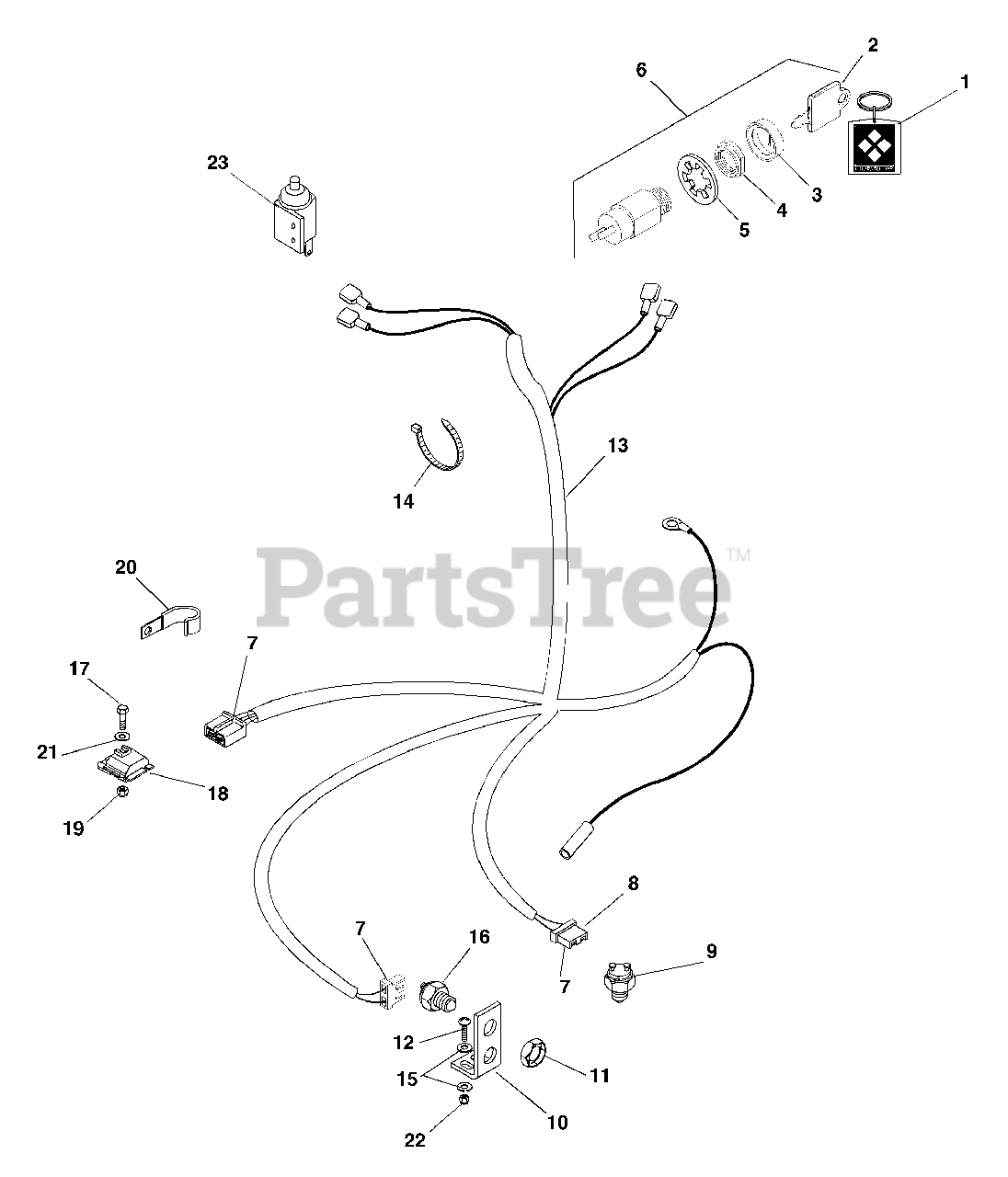

988091 - Gravely Pro 150 Walk-Behind Mower Power Unit, 12.5hp Kawasaki (SN: 010000 & Above) Electrical System Parts Diagram

Pro 150 Walk-Behind Mower Power Unit, 12.5hp Kawasaki

Electrical System Parts Diagram

  • Title

1

Gravely 045842

KEY CHAIN
(Superseded to 03490000)

$

$

Not available

2

Gravely 045488

KEY -W/CAP
(Superseded to 02460700)

$7.99

$

In Stock, Qty 16

0

3

Gravely 045490

CAP - IGNITION SWITCH
(Superseded to 07517700)

$3.99

$

In Stock, Qty 9

0

4

Gravely 045497

NUT-PANEL .625-32 GRECO
(Superseded to 06517300)

$7.99

$

In Stock, only 1 left!

0

5

Gravely 018586

WSHR-LK-INT .625X.045 YWZC
(Superseded to 06306900)

$3.99

$

In Stock, only 1 left!

0

6

Gravely 02456500

KEY SWITCH ASSEMBLY
(Superseded to 52406900)

$39.99

$

In Stock, only 1 left!

0

7

Gravely 038059

TERMINAL
(Superseded to 08540001)

$3.99

$

In Stock, only 4 left!

0

8

Gravely 042176

CONN,2-WIRE SWITCH
(Superseded to 08550000)

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 034640

SWITCH, NEUTRAL START N.C.
(Superseded to 08803700)

Note: (N.C.)

$34.99

$

In Stock, only 3 left!

0

10

Gravely 034637

BRKT,INTERLOCK SWITCH
(Superseded to 08803600)

$

$

Not available

11

Gravely 107354

NUT-STAMPED .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 04905600

WIRE HARNESS, PRO RECOIL

$

$

Not available

14

Gravely 041634

TIE WRAP, BLACK LG 7.31
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 06442700

@WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

16

Gravely 020916

SWITCH-NEUTRAL START N.O.
(Superseded to 02913100)

Note: (N.O.)

$45.99

$

In Stock, only 1 left!

0

17

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

18

Gravely 08885800

MODULE,INTERLOCK,ELEC, 1601

$71.99

$

Usually ships in 4-12 days

0

19

Gravely 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

21

Gravely 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 9

0

22

Gravely 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

23

Gravely 09251900

SWITCH-SINGLE POLE N.O.W/COVER

Note: (N.O.) with Cover

$22.99

$

Usually ships in 4-12 days

0
