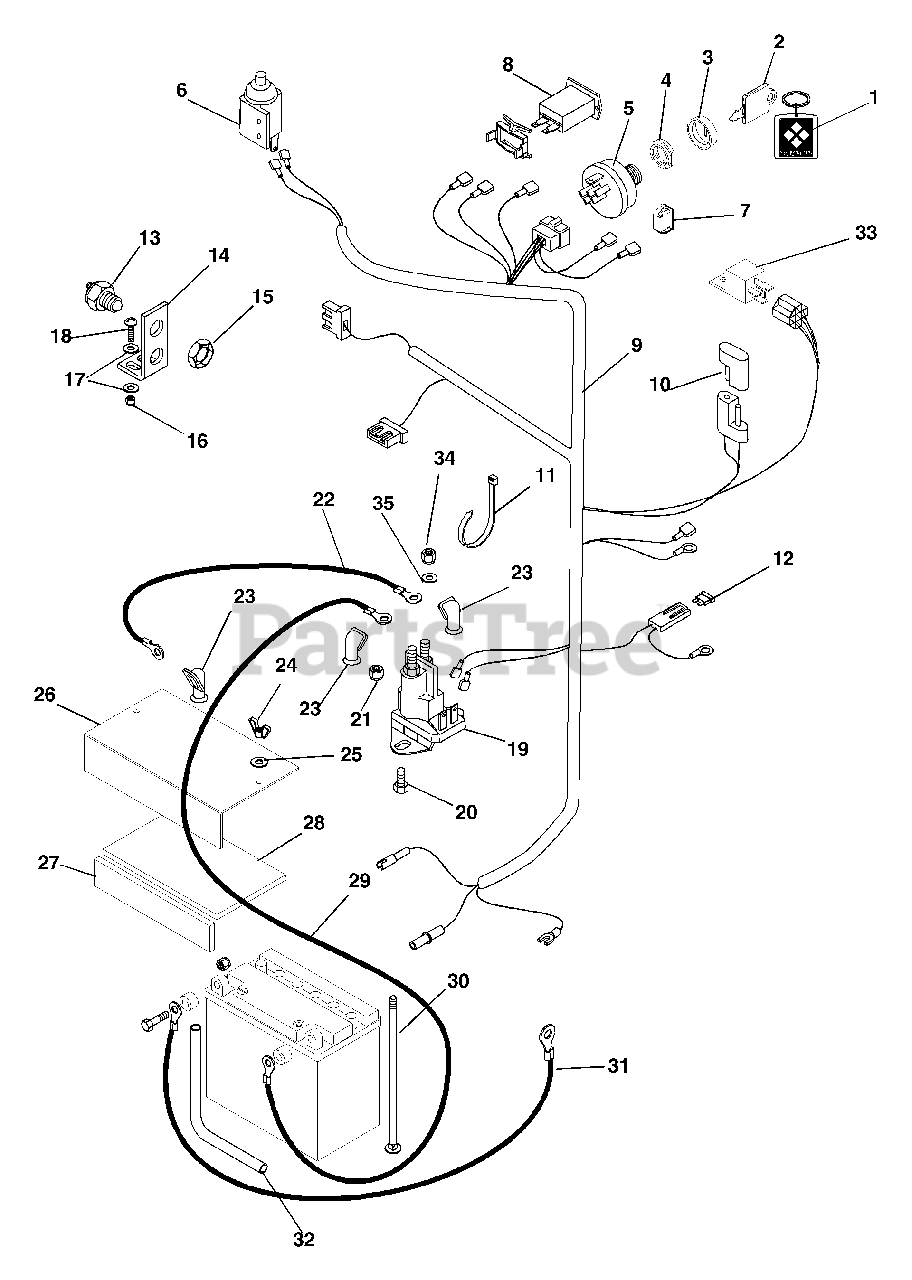

988092 - Gravely Pro 150 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton (SN: 010000 & Above) Electrical System Parts Diagram

Pro 150 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton

Electrical System Parts Diagram

  • Title

1

Gravely 045842

KEY CHAIN
(Superseded to 03490000)

$

$

Not available

2

Gravely 045488

KEY -W/CAP
(Superseded to 02460700)

$7.99

$

In Stock, Qty 16

0

3

Gravely 045490

CAP - IGNITION SWITCH
(Superseded to 07517700)

$3.99

$

In Stock, Qty 9

0

4

Gravely 06517400

NUT- PANEL .562-24 GRECO

$13.99

$

In Stock, only 1 left!

0

5

Gravely 027396

SWITCH ASSEMBLY
(Superseded to 52709300)

$56.99

$

In Stock, only 3 left!

0

6

Gravely 09251900

SWITCH-SINGLE POLE N.O.W/COVER

Note: (N.O.) with Cover

$22.99

$

Usually ships in 4-12 days

0

7

Gravely 050673

LIGHT, INDICATOR (RED)
(Superseded to 05128700)

$11.99

$

Usually ships in 4-12 days

0

8

Gravely 038256

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$22.99

$

In Stock, only 1 left!

0

9

Gravely 04908500

WIRE HARNESS, PRO-150 16 B&S

$

$

Not available

10

Gravely 03081700

MOLDED DIODE PLUG 1 AMP

$26.99

$

In Stock, only 1 left!

0

11

Gravely 041634

TIE WRAP, BLACK LG 7.31
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

12

Gravely 00524600

FUSE, 30 AMP.

$

$

Not available

13

Gravely 020916

SWITCH-NEUTRAL START N.O.
(Superseded to 02913100)

Note: (N.O.)

$45.99

$

In Stock, only 1 left!

0

14

Gravely 034637

BRKT,INTERLOCK SWITCH
(Superseded to 08803600)

$

$

Not available

15

Gravely 107354

NUT-STAMPED .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

17

Gravely 06442700

@WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

18

Gravely 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 03679000

SOLENOID
(Superseded to 59223400)

$60.99

$

In Stock, Qty 12

0

20

Gravely 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

21

Gravely 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 042696

STARTER CABLE 6.75"
(Superseded to 00145900)

$13.99

$

In Stock, only 2 left!

0

23

Gravely 033847

BOOT, INSULATOR
(Superseded to 03384700)

$

$

Not available

24

Gravely 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$4.99

$

In Stock, Qty 9

0

25

Gravely 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

26

Gravely 049294

CVR,BATTERY
(Superseded to 08835800)

$

$

Not available

27

Gravely 050418

PAD,BATTERY
(Superseded to 08800600)

$

$

Not available

28

Gravely 050417

PAD,BATTERY
(Superseded to 08803400)

$6.99

$

Usually ships in 4-12 days

0

29

Gravely 02743300

START CABLE 22"
(Superseded to 03287200)

$17.99

$

In Stock, only 3 left!

0

30

Gravely 06220400

@BLT-RDHDSQNK .25-20X7.00 G2YZ
(Superseded to 06200229)

$4.49

$

In Stock, Qty 7

0

31

Gravely 08940600

CABLE, NEGATIVE BATTERY 24.00
(Superseded to 03288100)

$17.99

$

In Stock, only 1 left!

0

32

Gravely 041358

BATTERY,12 VOLT
(Superseded to 78801800)

$

$

Not available

33

Relay

$

$

Not available

34

Gravely 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$0.99

$

In Stock, Qty 8

0

35

Gravely 06310500

WSHR-LOCK INT .31 YWZC

$0.99

$

In Stock, only 3 left!

0
