988093 - Gravely Pro 300 Walk-Behind Mower Power Unit, 18hp Robin (SN: 000101 & Above) Frame Parts Diagram

Pro 300 Walk-Behind Mower Power Unit, 18hp Robin

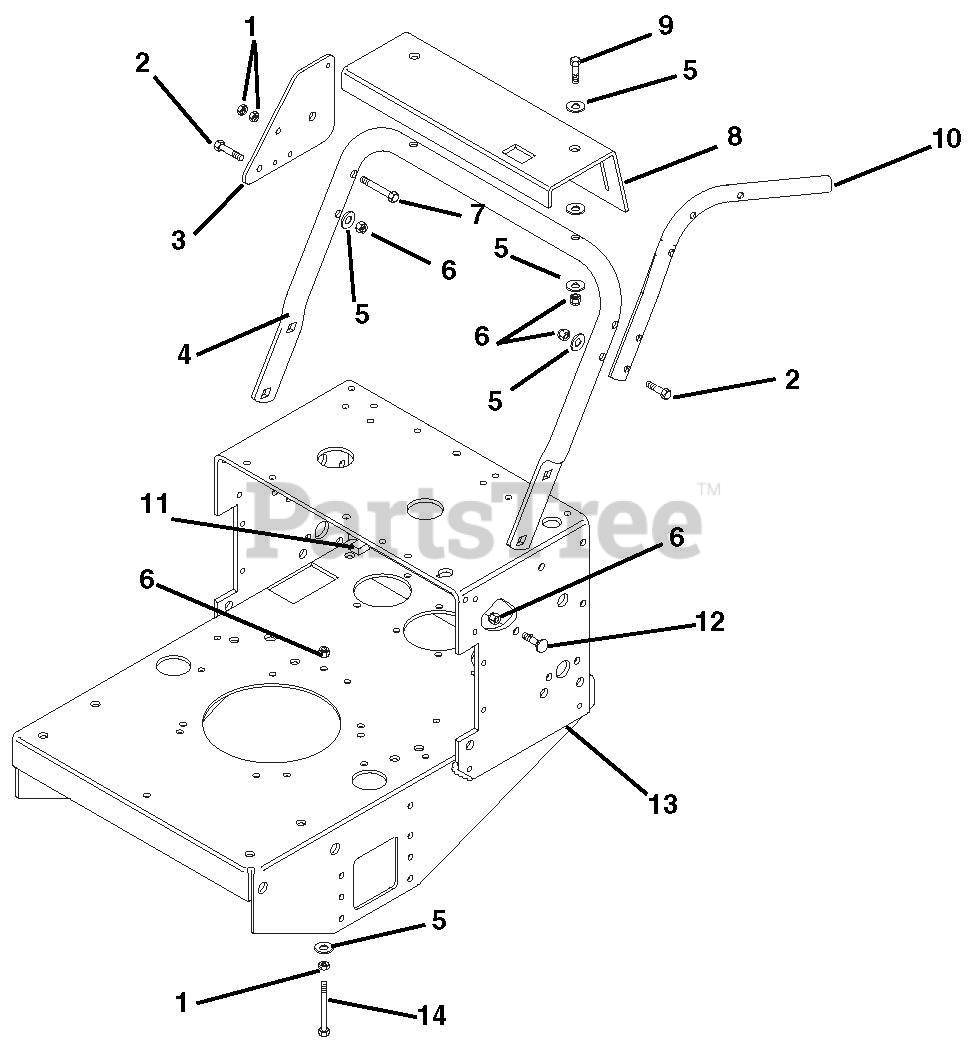

Frame Parts Diagram

  • Title

1

Gravely 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 8

0

2

Gravely 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, only 3 left!

0

3

Gravely 051126

PLT,SPEED CTL LEVER
(Superseded to 08843600)

Note: Gravely Part Number

$

$

Not available

4

Gravely 049032

TUBE, HANDLEBAR MOUNTING
(Superseded to 08868500)

Note: Gravely Part Number

$

$

Not available

5

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 6

0

8

Gravely 08898100

INSTRUMENT PANEL, PRO-300

$20.99

$

Usually ships in 4-12 days

0

9

Gravely 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, only 3 left!

0

10

Gravely 04904851

HANDLE, L.H.

Note: (988093, 310)

$176.99

$

Usually ships in 4-12 days

0

10

Gravely 08847551

HANDLEBAR, L.H.

$

$

Not available

10

Gravely 04904751

HANDLE, R.H.

$176.99

$

Usually ships in 4-12 days

0

10

Gravely 08847651

HANDLEBER, R.H.

$

$

Not available

11

Gravely 040176

STOP
(Superseded to 07525100)

Note: Gravely Part Number

$2.49

$

In Stock, only 3 left!

0

12

Gravely 06215500

@BLT-RDHDSQNK .38-16X1.00 G2YZ
(Superseded to 06223600)

$2.99

$

In Stock, Qty 8

0

13

Gravely 04900700

WELDMENT, FRAME

$284.99

$

Usually ships in 4-12 days

0

14

Gravely 05965400

@BLT-HEX .38-16X4.00 GR5 YWZC

$3.99

$

In Stock, only 1 left!

0
