988102 (GR 1548 FX) - Gravely Pro-Gear 48" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki (SN: 000101 - 002999) Traction Controls Parts Diagram

Pro-Gear 48" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki

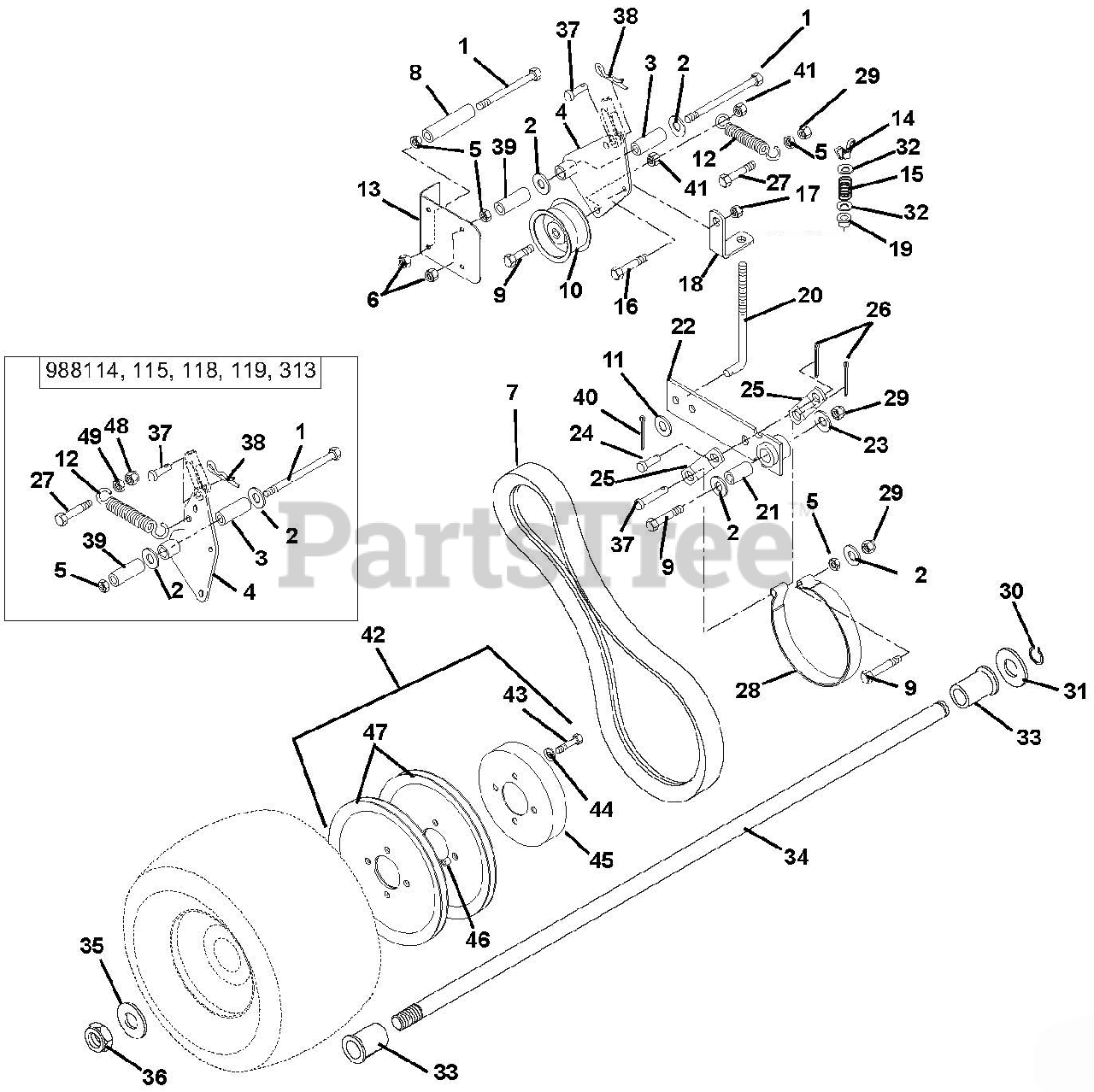

Traction Controls Parts Diagram

  • Title

1

Gravely 05970400

Bolt-Hex .38-16 x 4.50 Grade 5
(Superseded to 05901938)

$5.49

$

Usually ships in 4-12 days

0

2

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 08831500

Bushing, Steel .385 x .610 x 1.80

$6.49

$

In Stock, only 2 left!

0

4

Gravely 04934500

Weldment- Wheel Clutch Arm

Note: (988100, 101 - 104, 110, 112, 311) (Serial # 101-2999)

$

$

Not available

4

Gravely 04938700

Weldment- Wheel Clutch Arm

Note: (988114, 115, 118, 119, 313) (Serial # 101-2999)

$

$

Not available

4

Gravely 04946200

Weldment- Wheel Clutch Arm

Note: (Serial # 3000 and up)

$94.99

$

Usually ships in 4-12 days

0

5

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06542000

Nut-Locking-Flange .375-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07239600

Belt, Traction Drive

Note: (Serial # 101-2999)

$96.99

$

In Stock, only 2 left!

0

7

Gravely 07243600

Belt, Traction Drive

Note: (Serial # 3000 and up)

$113.99

$

In Stock, Qty 8

0

8

Gravely 08875300

Bushing, Spacer, 3.25 x .38 I.D. x .63 O.D.

$6.49

$

Usually ships in 4-12 days

0

9

Gravely 05963300

Bolt-Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

10

Gravely 07318400

Sheave 3.25 x 1.25

$23.99

$

In Stock, Qty 12

0

11

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 08346800

Spring-Tension .105 x 1.00 x 5.00

$15.99

$

In Stock, Qty 5

0

13

Gravely 58805200

Kit-Belt Cover with Decals

$69.99

$

Usually ships in 4-12 days

0

14

Gravely 06537100

Nut-Nylock Wing .31-18

$6.49

$

In Stock, only 1 left!

0

15

Gravely 08327000

Spring-Compression .125 x .78 x 1.00

$16.99

$

In Stock, only 4 left!

0

16

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

17

Gravely 06531000

Nut-Locking-Nylon .25-20
(Superseded to 06500832)

$5.49

$

In Stock, only 2 left!

0

18

Gravely 04928900

Bracket, Brake Link

$

$

Not available

19

Gravely 05517500

Bushing-Flange .32 x .62 x .312 Nylon

$18.99

$

Usually ships in 4-12 days

0

20

Gravely 04935500

Rod, Brake

$

$

Not available

21

Gravely 08833400

Bushing Sleeve .39 x .622 x .95 Steel

$6.49

$

In Stock, only 4 left!

0

22

Gravely 08831600

Weldment, Brake Arm

$76.99

$

Usually ships in 4-12 days

0

23

Gravely 06444000

Washer-Flat-Steel .406 x 1.00 x .188
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

24

Gravely 06814800

Pin-Clevis .38 x .75

$3.99

$

In Stock, only 4 left!

0

25

Gravely 08831951

Link, Brake Arm

$23.99

$

In Stock, only 1 left!

0

26

Gravely 06707300

Pin-Cotter .12 x .75

$0.99

$

In Stock, Qty 5

0

27

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

Note: (988100 - 104, 110, 112, 311)

$1.99

$

In Stock, Qty 10

0

27

Gravely 05957200

Bolt-Hex .31-18 x 2.00 Grade 5
(Superseded to 05901805)

Note: (988114, 115, 118, 119, 313)

$1.99

$

In Stock, Qty 12

0

28

Gravely 08880600

Assembly, Pro Brake Band

$59.99

$

In Stock, Qty 9

0

29

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

30

Gravely 05707300

Ring-Retaining-External .906 x .078

$3.49

$

In Stock, Qty 17

0

31

Gravely 06436300

Washer-Flat-Steel 1.01 x 1.50 x .062
(Superseded to 06401132)

$1.99

$

In Stock, Qty 15

0

32

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

33

Gravely 05517900

Bushing-Flange 1.01 x 1.38 x 1.4 x 1.65

$6.49

$

In Stock, Qty 12

0

34

Gravely 04923400

Shaft, Axle

$191.99

$

Usually ships in 4-12 days

0

35

Gravely 06439000

Washer-Flat-Steel .812 x 1.50 x .135
(Superseded to 06401140)

$1.99

$

In Stock, Qty 17

0

36

Gravely 06537900

Nut-Locking-Jam-Nylon .75-10

$17.99

$

Usually ships in 4-12 days

0

37

Gravely 06814900

Pin-Clevis .38 x 1.25

$4.99

$

In Stock, only 2 left!

0

38

Gravely 06713500

Pin-Hair Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

39

Gravely 04923300

Bushing, Spacer

$3.99

$

Usually ships in 4-12 days

0

40

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 8

0

41

Gravely 06537200

Nut-Locking-Jam-Center .38-16
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0

42

Gravely 07326900

Assembly, Pulley and Drum

Note: (Includes 43 - 47)

$211.99

$

In Stock, Qty 6

0

43

Gravely 05952400

Bolt-Hex .31-18 x 1.50 Grade 5
(Superseded to 05901710)

$1.99

$

In Stock, Qty 6

0

44

Gravely 06308600

Washer-Locking .31 x .078 Regular
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

45

Gravely 08809500

Drum, Brake

$

$

Not available

46

Gravely 08809500

Bushing, Sleeve .385 x .625 x .475 Steel

$

$

Not available

47

Gravely 07326901

Sheave 8"

$34.99

$

In Stock, only 2 left!

0

48

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

Note: (988114, 115, 118, 119, 313)

$1.99

$

In Stock, Qty 20+

0

49

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

Note: (988114, 115, 118, 119, 313)

$1.49

$

In Stock, Qty 8

0
