988102 (GR 1548 FX) - Gravely Pro-Gear 48" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki (SN: 006000 & Above) 48" Discharge Chute And Baffles Parts Diagram

Pro-Gear 48" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki

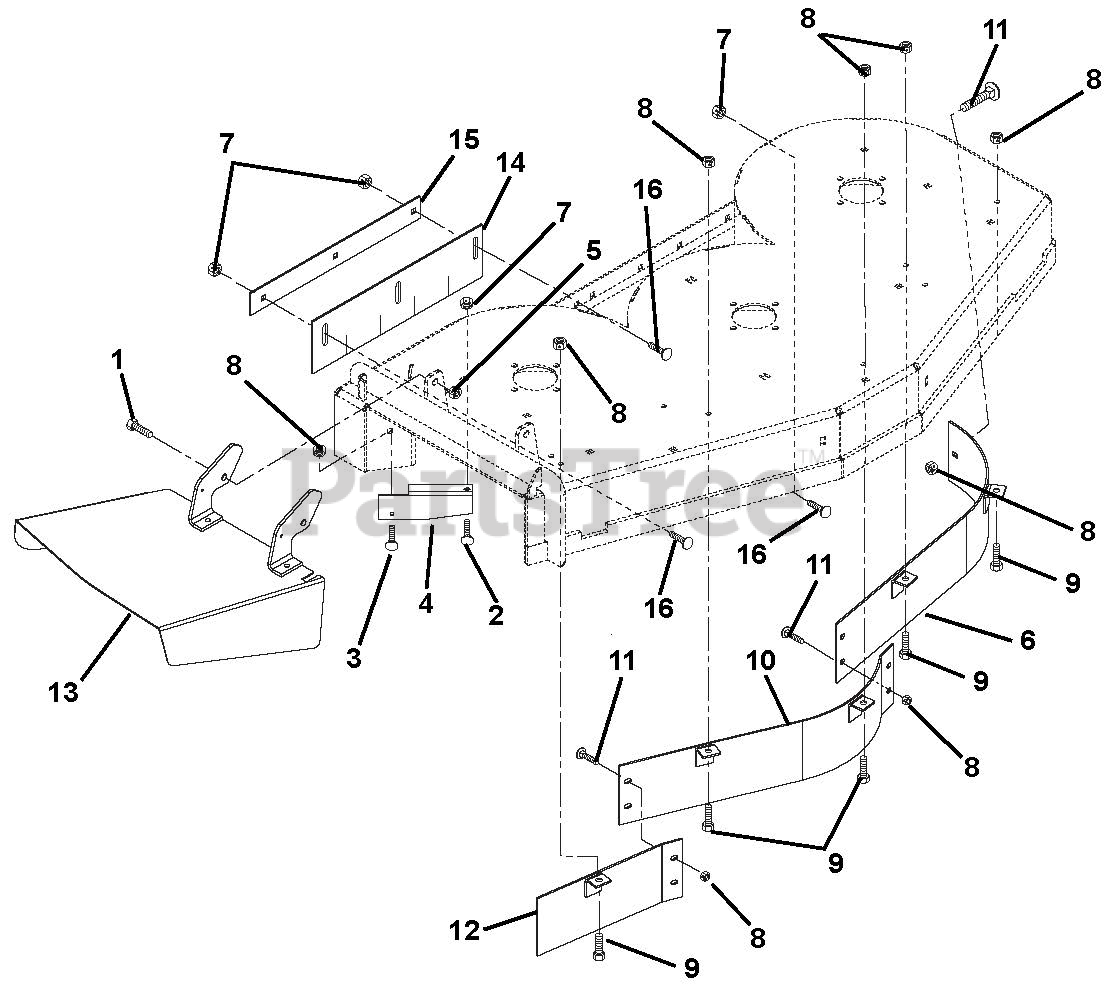

48" Discharge Chute And Baffles Parts Diagram

  • Title

1

Gravely 05958900

Bolt, Hex .50-13 x 1.25 Grade 5
(Superseded to 05901637)

$3.49

$

Usually ships in 4-12 days

0

2

Gravely 06223900

Bolt, Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06200312)

$1.49

$

In Stock, only 3 left!

0

3

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 8

0

4

Gravely 04939853

Deflector 44"/48"

$58.99

$

Usually ships in 4-12 days

0

5

Gravely 06540600

Nut, Locking-Nylon .50-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

6

Gravely 04918953

Weldment, Upper Baffle Left

$75.99

$

Usually ships in 4-12 days

0

7

Gravely 06542000

Nut, Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06543100

Nut, Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 10

0

10

Gravely 04919053

Weldment, Upper Baffle Center

$60.99

$

Usually ships in 4-12 days

0

11

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 8

0

12

Gravely 04919653

Weldment, Right Hand Baffle-Upper

$34.99

$

Usually ships in 4-12 days

0

13

Gravely 04917853

Chute, Discharge

$187.99

$

Usually ships in 4-12 days

0

14

Gravely 04919300

Skirt, Rubber

$39.99

$

Usually ships in 4-12 days

0

15

Gravely 04919251

Strip, Striper Mount

$

$

Not available

16

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 19

0
