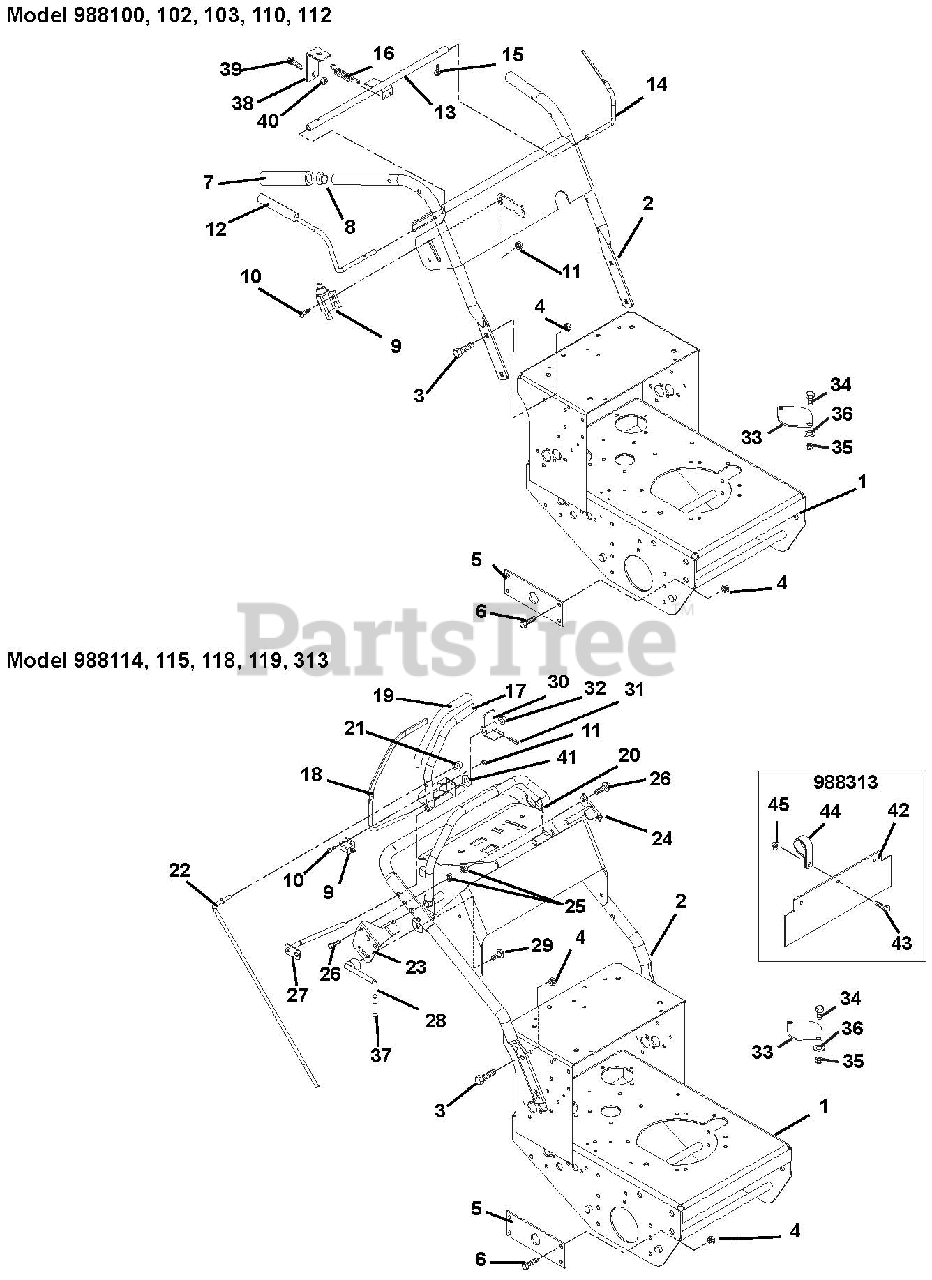

988103 (GR 1548 FL) - Gravely Pro-Gear 48" Walk-Behind Mower, Float Deck, 15hp Kawasaki (SN: 003000 & Above) Frame And Handlebars Parts Diagram

Pro-Gear 48" Walk-Behind Mower, Float Deck, 15hp Kawasaki

Frame And Handlebars Parts Diagram

  • Title

1

Gravely 58804200

Kit-Frame with Decals

$

$

Not available

2

Gravely 58805300

Kit-Handlebar with Decals GR13

Note: (988100, 110)

$

$

Not available

2

Gravely 58805400

Kit-Handlebar with Decals GR15

Note: (988102, 103, 112)

$

$

Not available

2

Gravely 58807000

Kit, Handlebar with Decals GR13/15-Pro Steer

Note: (988114, 115, 118, 119, 313)

$

$

Not available

3

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

5

Gravely 04922300

Plate, Support

$17.99

$

Usually ships in 4-12 days

0

6

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 04928800

Grip, Handlebar

Note: (988100, 102, 103, 110,112)

$10.99

$

In Stock, Qty 12

0

8

Gravely 07533300

Caplug, Handlebar

Note: (988100, 102, 103, 110,112)

$2.99

$

In Stock, only 3 left!

0

9

Gravely 03606600

Switch, Double Pole

Note: (988100, 102, 103, 110,112)

$17.99

$

In Stock, Qty 20+

0

9

Gravely 03657100

Switch, Single Pole

Note: (988114, 115)

$9.99

$

In Stock, Qty 14

0

10

Gravely 06116900

Screw, Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

Note: (988100, 102, 103, 110,112)

$2.49

$

In Stock, only 4 left!

0

10

Gravely 06116900

Screw-Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

Note: (988114, 115, 118, 119, 313)

$2.49

$

In Stock, only 4 left!

0

11

Gravely 06536000

Nut-Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

Note: (988100, 102, 103, 110, 112)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06536000

Nut-Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

Note: (988114, 115, 118, 119, 313)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 04924100

Lever, Right Hand-Operator Presence
(Superseded to 78806400)

$237.99

$

Usually ships in 4-12 days

0

13

Gravely 04924000

Weldment, Pivot Tube
(Superseded to 78806400)

$237.99

$

Usually ships in 4-12 days

0

14

Gravely 04924200

Lever, Left Hand-Operator Presence
(Superseded to 78806400)

$237.99

$

Usually ships in 4-12 days

0

15

Gravely 07415600

Screw-Tapping 8-32 x .50 Hex Washer Head

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 08337000

Spring-Tension .047 x .438 x 1.45

$6.49

$

In Stock, Qty 10

0

17

Gravely 04944351

Weldment, Lever-Right Hand Speed Control

Note: (988114, 115, 118, 119, 313)

$332.99

$

Usually ships in 4-12 days

0

17

Gravely 04944451

Weldment-Lever-Left Hand Speed Control

Note: (988114, 115, 118, 119, 313)

$316.99

$

Usually ships in 4-12 days

0

18

Gravely 04944100

Lever- Operator Presence

Note: (988114, 115, 118, 119, 313)

$48.99

$

Usually ships in 4-12 days

0

19

Gravely 07534500

Grip- Handlebar

Note: (988114, 115, 118, 119, 313)

$27.99

$

In Stock, only 2 left!

0

20

Gravely 04944951

Weldment- Speed Control Stop

Note: (988114, 115, 118, 119, 313)

$261.99

$

Usually ships in 4-12 days

0

21

Gravely 05711300

Ring-Retaining-External .375 x .010

Note: (988114, 115, 118, 119, 313)

$0.99

$

In Stock, Qty 5

0

22

Gravely 04950500

Rod, Steering

Note: (988114, 115, 118, 119, 313)

$

$

Not available

23

Gravely 04944800

Weldment, Control Stop Limiter-Right Hand

Note: (988114, 115, 118, 119, 313)

$25.99

$

Usually ships in 4-12 days

0

24

Gravely 04938300

Weldment, Control Stop Limiter-Left Hand

Note: (988114, 115, 118, 119, 313)

$

$

Not available

25

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

Note: (988114, 115, 118, 119, 313)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 05957400

Bolt-Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

Note: (988114, 115, 118, 119, 313)

$3.49

$

In Stock, Qty 5

0

27

Gravely 04943200

Weldment, Speed Control Pivot- Right Hand

Note: (988114, 115, 118, 119, 313)

$

$

Not available

27

Gravely 04943300

Weldment, Speed Control Pivot- Left Hand

Note: (988114, 115, 118, 119, 313)

$

$

Not available

28

Gravely 04944700

Lever- Control Stop Lock

Note: (988114, 115, 118, 119, 313)

$34.99

$

Usually ships in 4-12 days

0

29

Gravely 06223900

Bolt-Round Head Square Neck .38-16 x .75 Grade 2
(Superseded to 06200312)

Note: (988114, 115, 118, 119, 313)

$1.99

$

In Stock, only 4 left!

0

30

Gravely 04936900

Actuator, Switch

Note: (988114, 115, 118, 119, 313)

$59.99

$

Usually ships in 4-12 days

0

31

Gravely 05803400

Pin-Roll .125 x .75

Note: (988114, 115, 118, 119, 313)

$0.99

$

Usually ships in 4-12 days

0

32

Gravely 06514900

Nut-Push .312

Note: (988114, 115, 118, 119, 313)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 04926053

Plate, Cover

$

$

Not available

34

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.99

$

In Stock, Qty 11

0

35

Gravely 06542000

Nut-Locking-Flange .375-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 07528300

Grip, Hand Clutch Lever

Note: (988114, 115, 118, 119, 313)

$3.99

$

In Stock, only 2 left!

0

38

Gravely 04928900

Bracket, Brake Link

Note: (988100, 102, 103, 110, 112)

$

$

Not available

39

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

Note: (988100, 102, 103, 110, 112)

$1.49

$

In Stock, Qty 12

0

40

Gravely 06531000

Nut, Locking Nylon .25-20
(Superseded to 06500832)

Note: (988100, 102, 103, 110, 112)

$5.49

$

In Stock, only 2 left!

0

41

Gravely 01320200

Washer, Wave

Note: (988114, 115, 118, 119, 313)

$3.99

$

In Stock, Qty 7

0

42

Gravely 04947000

Guard, Debris

Note: (988313)

$39.99

$

Usually ships in 4-12 days

0

43

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

Note: (988313)

$1.99

$

In Stock, Qty 11

0

44

Gravely 06917900

Clamp, Steel 1.0

Note: (988313)

$15.99

$

Usually ships in 4-12 days

0

45

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

Note: (988313)

$1.49

$

In Stock, Qty 20+

0
