988105 (HR 1536 FX) - Gravely Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki (SN: 006000 & Above) 32", 36" And 48" Fixed Deck And Mower Frame Parts Diagram

Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki

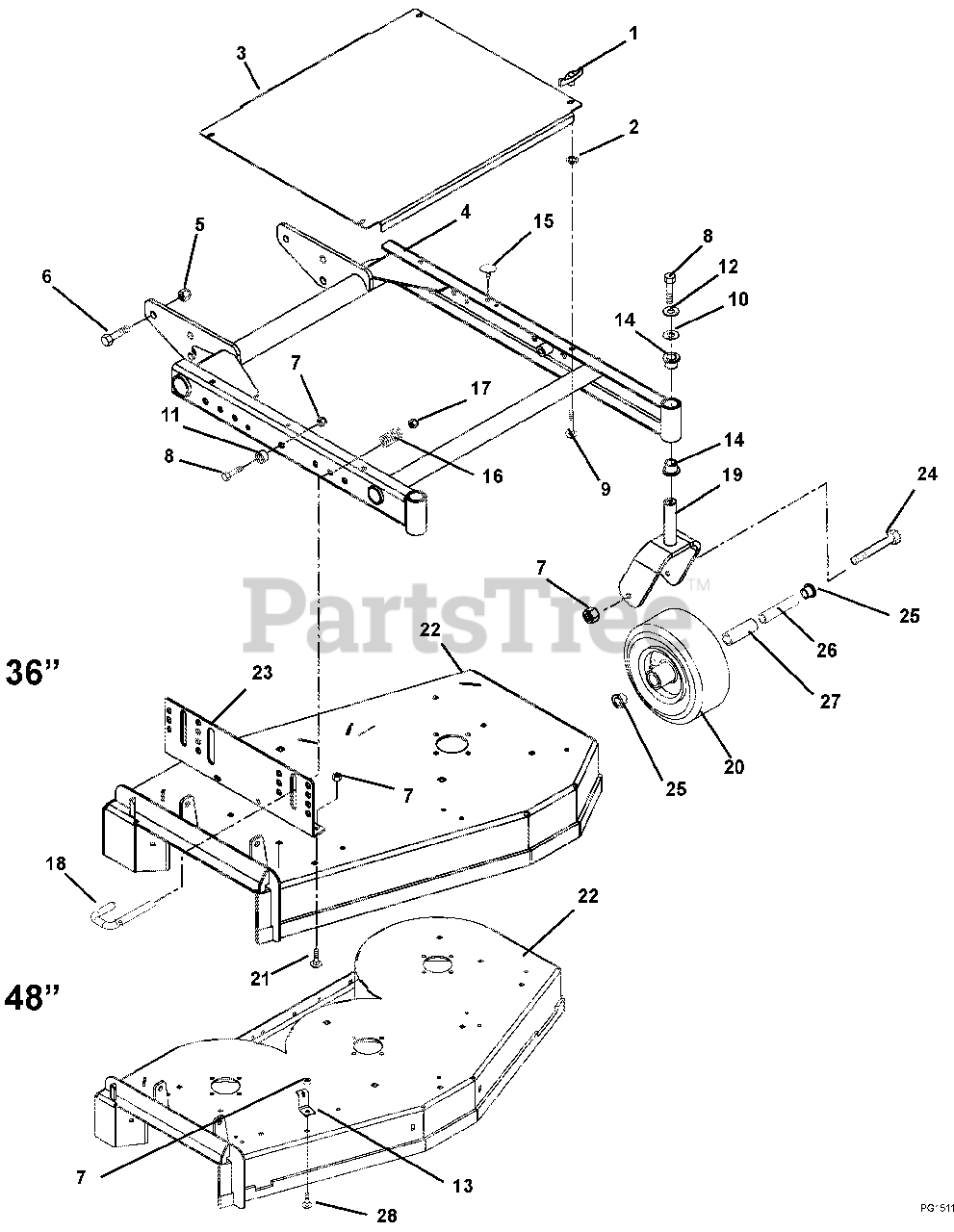

32", 36" And 48" Fixed Deck And Mower Frame Parts Diagram

  • Title

1

Gravely 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

Note: (105, 120, 123, 124)

$4.99

$

In Stock, Qty 20+

0

2

Gravely 06514900

NUT-PUSH .312

Note: (105, 120, 123, 124)

$1.49

$

In Stock, only 4 left!

0

3

Gravely 04916753

COVER - BELT - PRO MOWER

Note: (105, 120)

$

$

Not available

Gravely 04919853

COVER - BELT - PRO - 48"

Note: (123, 124)

$138.99

$

Usually ships in 4-12 days

0

4

Gravely 04916653

WMT - MOWER FRAME - 36"

Note: (105, 120)

$

$

Not available

Gravely 04919753

WMT - MOWER FRAME - 48"

Note: (123, 124)

$

$

Not available

5

Gravely 06540700

NUT-LK-NYL .625-11 YWZC

$5.49

$

In Stock, Qty 20+

0

6

Gravely 05968700

BLT-HEX .62-11X1.50 GR5 YWZC

$4.99

$

In Stock, Qty 9

0

7

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

Note: (105, 120)

$1.99

$

In Stock, Qty 20+

0

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

Note: (123, 124)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 06221800

BLT-RDHDSQNK .31-18X1.0 SHTYZ
(Superseded to 06200237)

Note: (105, 120, 123, 124)

$3.49

$

In Stock, only 2 left!

0

10

Gravely 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$4.99

$

In Stock, Qty 20+

0

11

Gravely 08553700

BSHG-SLV .391X.688X.52 PM

$6.99

$

In Stock, Qty 20+

0

12

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 09245353

ANCHOR, SPRING (RED)

$44.99

$

Usually ships in 4-12 days

0

14

Gravely 05533600

BSHG-FLG 1.00X1.25X1.50X1.50EP
(Superseded to 05500934)

$8.49

$

In Stock, Qty 20+

0

15

Gravely 07503100

BUMPER GROMMET

$4.99

$

In Stock, Qty 14

0

16

Gravely 08325900

SPRG, COMP .058X.65X2.13 WLD15

$

$

Not available

17

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$5.49

$

In Stock, Qty 16

0

18

Gravely 04920400

PIN - LATCH

$39.99

$

Usually ships in 4-12 days

0

19

Gravely 04917053

WMT - CASTER FORK

$157.99

$

Usually ships in 4-12 days

0

20

Gravely 07157200

WHEEL 9 X 3.50 SEMI-PNEUMATIC
(Superseded to 07100931)

$158.99

$

In Stock, only 3 left!

0

21

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

Note: (105, 120, 123, 124)

$3.49

$

In Stock, Qty 20+

0

22

Gravely 58804400

KIT-32" FX MOWER DECK W/DECALS

$

$

Not available

Gravely 58804500

KIT-36" FX MOWER DECK W/DECALS

Note: (105, 120)

$506.99

$

Usually ships in 4-12 days

0

Gravely 58804600

KIT-48" FX MOWER DECK W/DECALS

Note: (123, 124)

$

$

Not available

23

Gravely 58806600

KIT-MOWER SIDE SUPT BRKT-RH&LH

$168.99

$

Usually ships in 4-12 days

0

24

Gravely 05925400

BLT-HEX .38-16X5.50 YWZC
(Superseded to 05982000)

$4.99

$

In Stock, only 1 left!

0

25

Gravely 07000014

RTNR-BEARING-PRO

$43.99

$

Usually ships in 4-12 days

0

26

Gravely 04916900

BEARING .625 X .380 X 4.08

$76.99

$

Usually ships in 4-12 days

0

27

Gravely 05400003

BEARING, ROLLER--PRO

$23.99

$

In Stock, only 4 left!

0

28

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$2.49

$

In Stock, Qty 20+

0
