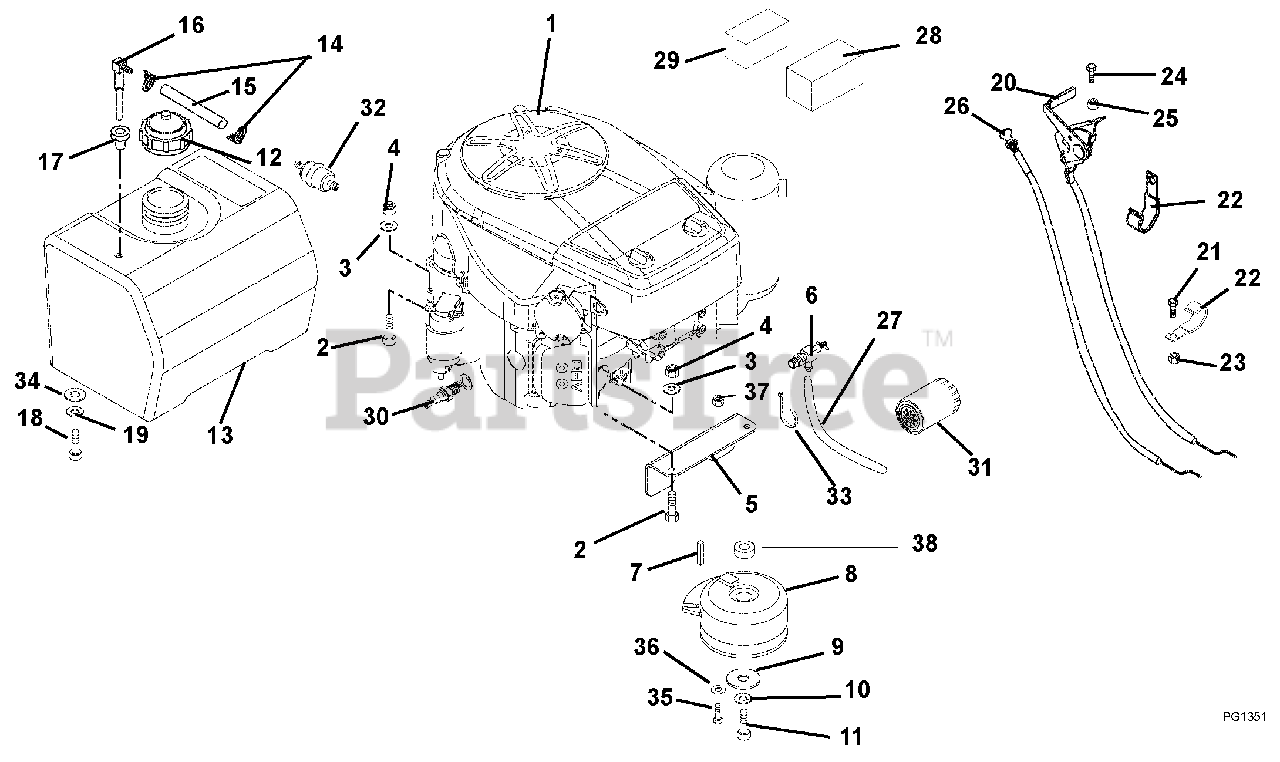

988105 (HR 1536 FX) - Gravely Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki (SN: 006000 & Above) Engine, Fuel And Exhaust System Parts Diagram

Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki

Engine, Fuel And Exhaust System Parts Diagram

  • Title

1

Gravely 08266800

ENGINE, 15 HP KAWASAKI

Note: (105, 120)

$

$

Not available

Gravely 08266900

ENGINE, 17 HP KAWASAKI FH500V

Note: (108, 123, 124, 125 SN - 000101 to 006999)

$

$

Not available

Gravely 08200049

19 HP KAWI PRO WALK ENGINE

Note: (126, 127)

$

$

Not available

Gravely 08200139

ENGINE, KAWASAKI 17HP

Note: (108, 123, 124, 125 SN - 007000 and up)

$

$

Not available

2

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 10

0

3

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

5

Gravely 03292451

BRACKET, CLUTCH STOP

$32.99

$

Usually ships in 4-12 days

0

6

Gravely 04923600

VALVE, OIL DRAIN

$53.99

$

Usually ships in 4-12 days

0

7

Gravely 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 11

0

8

Gravely 00191700

CLUTCH,ELECTRIC PTO

Note: (105, 120, 126, 127 SN 000101 and up) (108, 123, 124, 125 SN 000101

$382.99

$

Usually ships in 4-12 days

0

to 006999)

Note: to 006999)

$

$

Not available

Gravely 02999900

CLUTCH, ELECTRIC I-5219-93

Note: (108, 123, 124, 125 SN - 007000 and up)

$593.99

$

Usually ships in 4-12 days

0

9

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

10

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

11

Gravely 05965700

BLT-HEX .44-20X3.00 GR5 YWZC
(Superseded to 05900037)

Note: (105, 120, 126, 127 SN 000101 and up) (108, 123, 124, 125

$7.49

$

In Stock, Qty 14

0

SN - 000101 to 006999)

Note: SN - 000101 to 006999)

$

$

Not available

Gravely 05900039

BLT-HEX .44-20X1.50 G5 YZ EP80
(Superseded to 05902004)

Note: (108, 123, 124, 125 SN - 007000 and up)

$6.49

$

In Stock, Qty 10

0

12

Gravely 00273700

CAP - FUEL
(Superseded to 03859100)

$29.99

$

In Stock, Qty 20+

0

13

Gravely 04914000

TANK, FUEL

$

$

Not available

14

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 20+

0

15

Gravely 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 09112300

FITTING, TANK
(Superseded to 03875300)

$15.99

$

In Stock, only 2 left!

0

17

Gravely 07511400

BSHG-FLG .375 X 1.062 X .625 R

Note: (Black in color. Does not replace or interchange with orange colored grommet.)

$3.99

$

In Stock, Qty 20+

0

Gravely 00387300

GROMMET, DAPCO VITON #12240

Note: (Orange in color. Does not replace or interchange with black colored bushing.)

$9.99

$

In Stock, Qty 20+

0

18

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

19

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06949800

CABLE, THROTTLE--W/LINER

Note: (105, 108, 123, 126)

$59.99

$

In Stock, only 1 left!

0

Gravely 06949100

CABLE - THROTTLE W/LINER

Note: (120, 124, 125, 127)

$83.99

$

In Stock, only 2 left!

0

21

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06916000

J-CLAMP

$2.99

$

Usually ships in 4-12 days

0

23

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

24

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 11

0

25

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 06924800

CONTROL,CHOKE

$

$

Not available

27

Gravely 01590900

TUBE, OIL DRAIN 8" CLEAR VINYL

$6.49

$

Usually ships in 4-12 days

0

28

Gravely 21538000

AIR FLTR,PAPER KAWASAKI

Note: (105, 120)

$22.99

$

In Stock, Qty 20+

0

Gravely 21538200

AIR FLTR,PAPER

Note: (108, 123, 124, 125, 126, 127)

$21.99

$

In Stock, Qty 20+

0

29

Gravely 21538100

AIR FLTR,FOAM KAW

Note: (105, 120)

$13.99

$

In Stock, Qty 14

0

Gravely 21538300

FILTER, FOAM AIR PRE-

Note: (108, 123, 124, 125, 126, 127)

$11.99

$

Usually ships in 4-12 days

0

30

Gravely 21533600

PLUG, SPARK

$8.49

$

In Stock, Qty 20+

0

31

Gravely 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

$18.99

$

Usually ships in 2-5 days

0

32

Gravely 21538400

FUEL FILTER - KAWASAKI
(Superseded to 21573800)

$15.99

$

Usually ships in 4-12 days

0

33

Gravely 07517300

CABLE TIE LG 5-1/2

$1.49

$

Usually ships in 4-12 days

0

34

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 05980900

BLT-HEX .312-18X2.00 FTH GR5YZ
(Superseded to 05902003)

$3.49

$

In Stock, only 1 left!

0

36

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$1.49

$

In Stock, Qty 17

0

38

Gravely 00182500

BSHG, SPCR 1.032X1.25X.25 PM

Note: (105, 120, 126, 127 SN 000101 and up) (108, 123, 124, 125

$6.49

$

Usually ships in 4-12 days

0

SN - 000101 to 006999)

Note: SN - 000101 to 006999)

$

$

Not available
