988106 (HR 1548 FX) - Gravely Pro-Hydro 48" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki (SN: 000101 - 001999) Hydraulics Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki

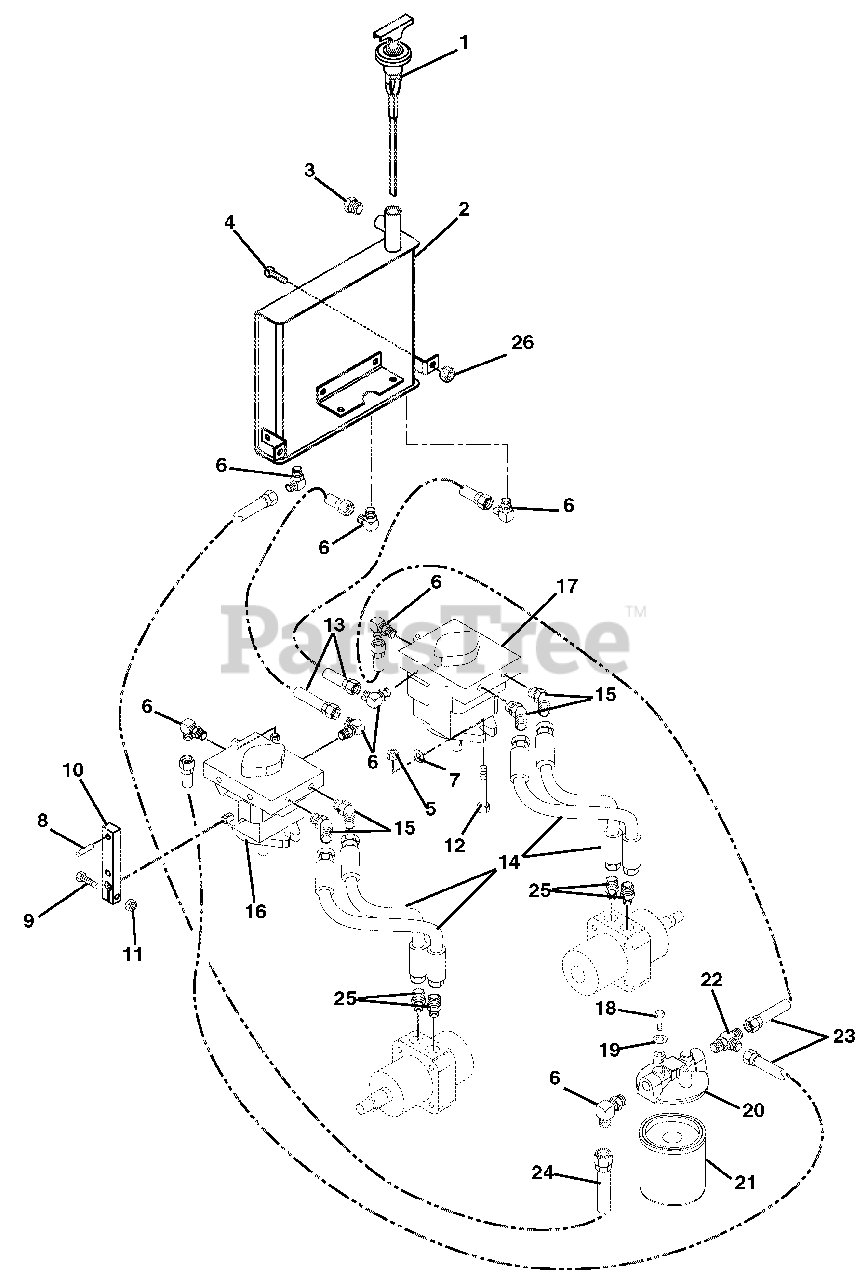

Hydraulics Parts Diagram

  • Title

1

Gravely 04935400

DIPSTICK, PRO-HYDRAULIC

$

$

Not available

2

Gravely 04915853

TANK ASSY, HYDRAULIC
(Superseded to 58806900)

$

$

Not available

3

Gravely 07050600

PLUG, BREATHER 3/8"

$

$

Not available

4

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 039413

NUT-LK-NYL .44-14 YWZC
(Superseded to 06527500)

$2.99

$

Usually ships in 4-12 days

0

6

Gravely 07063600

FITTING, HYD (6 C5OLO)

$35.99

$

Usually ships in 4-12 days

0

7

Gravely 06443800

WSHR,FL-STL.43X1.00X.160 ZC120

$3.99

$

In Stock, only 1 left!

0

8

Gravely 051889

PIN-DWL .312X1.25
(Superseded to 05808000)

$6.49

$

Usually ships in 4-12 days

0

9

Gravely 05947400

BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$2.49

$

In Stock, only 2 left!

0

10

Gravely 08880700

ARM, PUMP ACTUATING

$

$

Not available

11

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

12

Gravely 05962800

BLT-HEX .44-14X1.50 GR5 YWZC
(Superseded to 05901633)

$3.49

$

In Stock, Qty 6

0

13

Gravely 04925500

HOSE HYD .37-10-0K F06F0-F06F0

$86.99

$

Usually ships in 4-12 days

0

14

Gravely 04925900

HOSE,HYD .5-22-2K F08F0-F08F0

$100.99

$

In Stock, only 3 left!

0

15

Gravely 07066200

FTG,HYD 45DEG M8F-M80

$62.99

$

Usually ships in 4-12 days

0

16

Gravely 04915600

PUMP, HYDRAULIC RH

$716.99

$

Usually ships in 4-12 days

0

17

Gravely 04915700

PUMP, HYDRAULIC LH

$

$

Not available

18

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

19

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

20

Gravely 09072100

HEAD, FILTER

$62.99

$

In Stock, only 1 left!

0

21

Gravely 09246900

ELEMENT, FILTER BE-40-0

$28.99

$

In Stock, Qty 5

0

22

Gravely 07066100

FTG,HYD TEE M6F-M6F-M60

$

$

Not available

23

Gravely 04925600

HOSE,HYD .37-22-0K F06F0-F06F0

$

$

Not available

24

Gravely 04911500

HOSE HYD .37-13-0K F06F0-F06F9

$81.99

$

In Stock, only 1 left!

0

25

Gravely 07060000

ADPTR,FACE SEAL10X8 5/8 O-RING
(Superseded to 07062100)

$15.99

$

In Stock, only 2 left!

0

26

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0
