988106 (HR 1548 FX) - Gravely Pro-Hydro 48" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki (SN: 003000 & Above) 48" And 52" Discharge Chute And Baffles Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki

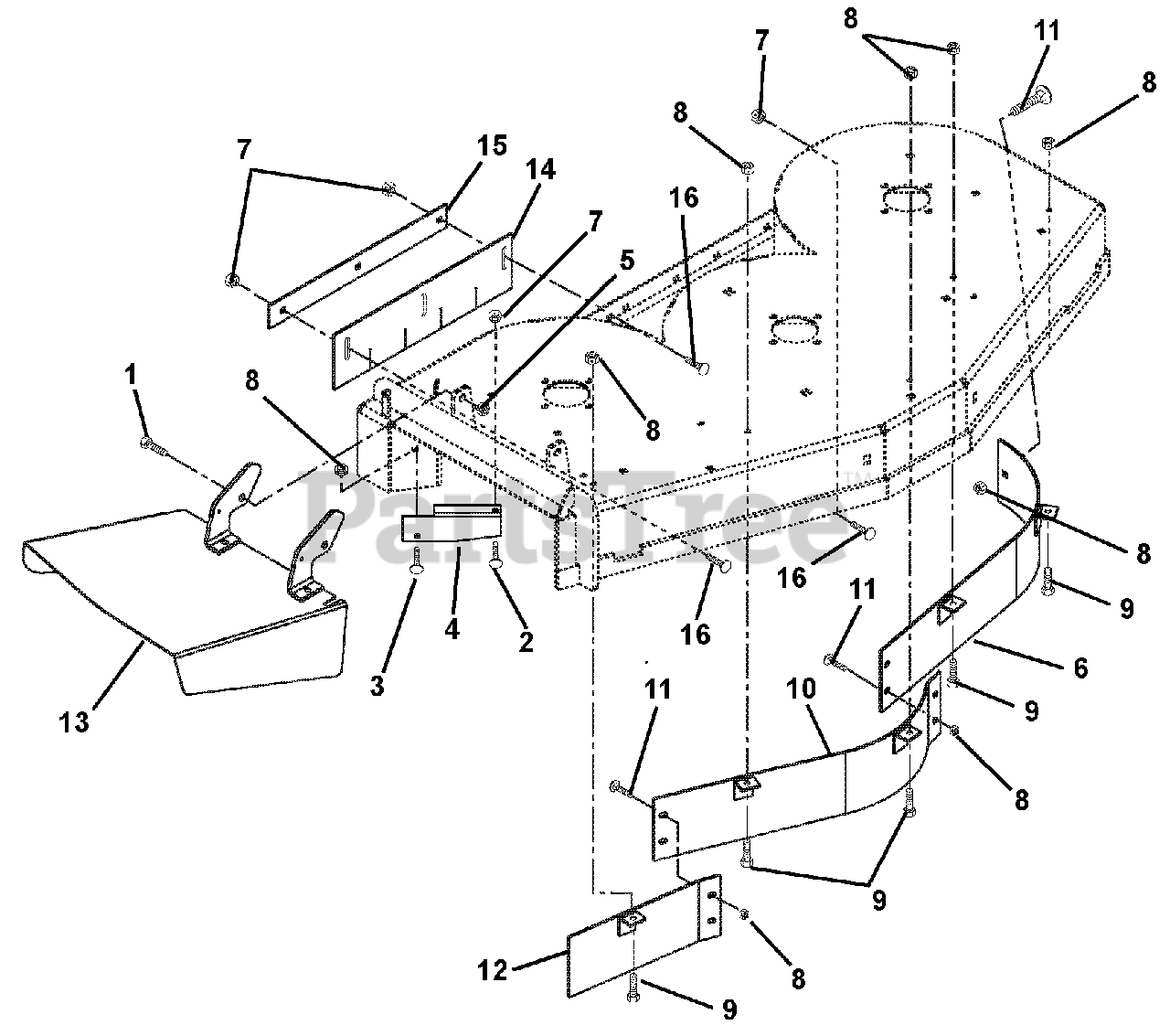

48" And 52" Discharge Chute And Baffles Parts Diagram

  • Title

1

Gravely 05958900

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, Qty 6

0

2

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, Qty 10

0

3

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

4

Gravely 04939851

DEFLECTOR - 44"/48"
(Superseded to 04939853)

Note: (106, 108)

$59.99

$

Usually ships in 4-12 days

0

Gravely 04921951

DEFLECTOR - 52"/34"
(Superseded to 04921953)

Note: (109)

$30.99

$

Usually ships in 4-12 days

0

5

Gravely 06540600

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

6

Gravely 04918951

BAFFLE - LEFT FRONT - 48"
(Superseded to 04918953)

Note: (106, 108)

$77.99

$

Usually ships in 4-12 days

0

Gravely 04921651

BAFFLE - LEFT FRONT - 52"
(Superseded to 04921653)

Note: (109)

$58.99

$

In Stock, only 2 left!

0

7

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 04919051

BAFFLE - CENTER FRONT - 48"
(Superseded to 04919053)

Note: (106, 108)

$62.99

$

Usually ships in 4-12 days

0

Gravely 04921751

BAFFLE - CENTER FRONT - 52"

Note: (109)

$75.99

$

Usually ships in 4-12 days

0

11

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 04919651

BAFFLE - RIGHT FRONT - 48"
(Superseded to 04919653)

Note: (106, 108)

$35.99

$

In Stock, only 2 left!

0

Gravely 04921851

BAFFLE - RIGHT FRONT - 52"
(Superseded to 04921853)

Note: (109)

$40.99

$

Usually ships in 4-12 days

0

13

Gravely 04917853

WMT - DISCHARGE CHUTE - PRO

$191.99

$

Usually ships in 4-12 days

0

14

Gravely 04919300

SKIRT- RUBBER

$43.99

$

Usually ships in 4-12 days

0

15

Gravely 04919251

STRIP - STRIPER MOUNT

$

$

Not available

16

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0
