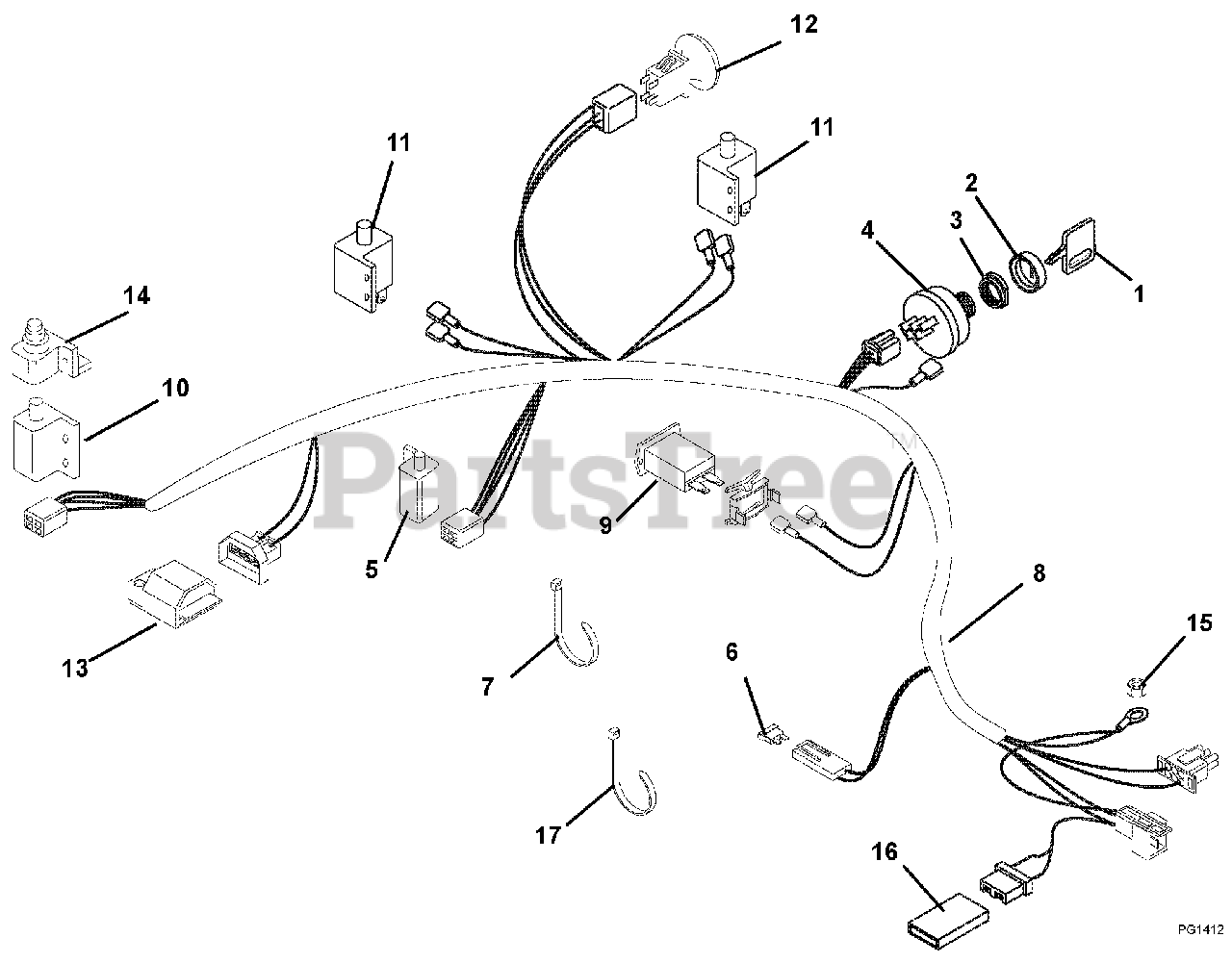

988106 (HR 1548 FX) - Gravely Pro-Hydro 48" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki (SN: 003000 & Above) Electrical System - Recoil Start - Pistol Grips Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki

Electrical System - Recoil Start - Pistol Grips Parts Diagram

  • Title

1

Gravely 02460700

KEY -W/CAP

$10.99

$

In Stock, Qty 20+

0

2

Gravely 045490

CAP - IGNITION SWITCH
(Superseded to 07517700)

$3.99

$

In Stock, Qty 12

0

3

Gravely 045489

NUT- PANEL .562-24 GRECO
(Superseded to 06517400)

$21.99

$

In Stock, Qty 6

0

4

Gravely 03602300

KEY SWITCH

$26.99

$

In Stock, Qty 15

0

5

Gravely 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, Qty 20+

0

6

Gravely 09351100

FUSE-25 AMP ATC TYPE
(Superseded to 08961800)

$3.99

$

In Stock, Qty 12

0

7

Gravely 036313

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$1.49

$

Usually ships in 4-12 days

0

8

Gravely 04928100

WIRE HARNESS, HYDRO RECOIL

$

$

Not available

9

Gravely 04935700

HOURMETER-QUARTZ 80VDCMAX
(Superseded to 59208200)

$63.99

$

Usually ships in 4-12 days

0

10

Gravely 046219

SWITCH,INTERLOCK
(Superseded to 08828100)

$21.99

$

In Stock, only 1 left!

0

11

Gravely 03657100

SWITCH- SINGLE POLE N.O.

Note: (N.O.)

$9.99

$

In Stock, Qty 18

0

12

Gravely 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 20+

0

13

Gravely 08885700

MODULE,INTERLOCK,RECOIL, 1201

$89.99

$

In Stock, only 4 left!

0

14

Gravely 07534400

BOOT, RUBBER

$6.49

$

Usually ships in 4-12 days

0

15

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$13.99

$

In Stock, Qty 20+

0

17

Gravely 04003800

TIE WRAP

$

$

Not available
