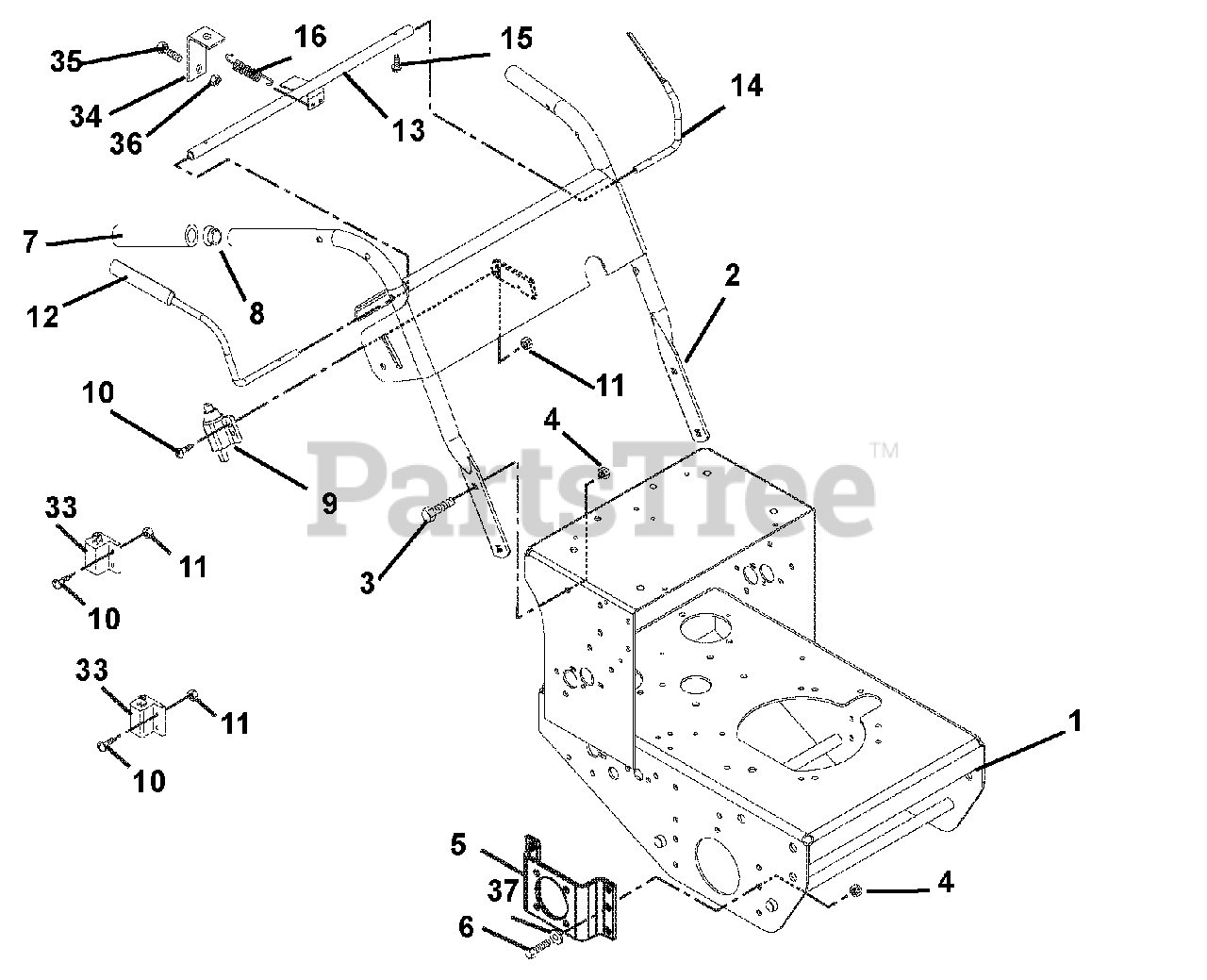

988106 (HR 1548 FX) - Gravely Pro-Hydro 48" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki (SN: 003000 & Above) Frame And Handlebars Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki

Frame And Handlebars Parts Diagram

  • Title

1

Gravely 58804200

Kit-Frame with Decals

$

$

Not available

2

Gravely 58805600

Kit-Handlebar with Decals HR15 (105, 106)

Note: (105, 106)

$

$

Not available

Gravely 58805700

Kit-Handlebar with Decals HE17 (108, 109)

Note: (108, 109)

$

$

Not available

Gravely 58806400

Kit, Handlebar with Decals 15-Pro Steer (120)

Note: (120)

$

$

Not available

3

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

5

Gravely 04926100

Bracket, Wheel Motor Left Hand (105, 108, 120)

Note: (105, 108, 120)

$

$

Not available

Gravely 04931300

Bracket, Wheel Motor Right Hand (105, 108, 120)

Note: (105, 108, 120)

$

$

Not available

Gravely 04929000

Bracket, Wheel Motor Left Hand (106, 109)

Note: (106, 109)

$

$

Not available

Gravely 04929100

Bracket, Wheel Motor Right Hand (106, 109)

Note: (106, 109)

$37.99

$

Usually ships in 4-12 days

0

6

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 04928800

Grip, Handlebar (105, 106, 108, 109)

Note: (105, 106, 108, 109)

$9.99

$

In Stock, only 1 left!

0

8

Gravely 07533300

Caplug, Handlebar (105, 106, 108, 109)

Note: (105, 106, 108, 109)

$2.49

$

In Stock, only 3 left!

0

9

Gravely 03606600

Switch, Double Pole (105, 106, 108, 109)

Note: (105, 106, 108, 109)

$15.99

$

In Stock, Qty 9

0

Gravely 03606600

Switch, Double Pole (120)

Note: (120)

$15.99

$

In Stock, Qty 9

0

10

Gravely 06116900

Screw, Machine 10-24 x .75 Hex Washer Head (105, 106, 108, 109)
(Superseded to 05901837)

Note: (105, 106, 108, 109)

$2.49

$

Usually ships in 4-12 days

0

Gravely 06116900

Screw-Machine 10-24 x .75 Hex Washer Head (120)
(Superseded to 05901837)

Note: (120)

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 06536000

Nut-Locking-Nylon 10-24 with Insert (105, 106, 108, 109)
(Superseded to 06500915)

Note: (105, 106, 108, 109)

$0.99

$

In Stock, only 3 left!

0

Gravely 06536000

Nut-Locking-Nylon 10-24 with Insert (120)
(Superseded to 06500915)

Note: (120)

$0.99

$

In Stock, only 3 left!

0

12

Gravely 04924100

Lever, Right Hand-Operator Presence (105, 106, 108, 109)
(Superseded to 78806400)

Note: (105, 106, 108, 109)

$206.99

$

In Stock, only 1 left!

0

13

Gravely 04924000

Weldment, Pivot Tube (105, 106, 108, 109)
(Superseded to 78806400)

Note: (105, 106, 108, 109)

$206.99

$

In Stock, only 1 left!

0

14

Gravely 04924200

Lever, Left Hand-Operator Presence (105, 106, 108, 109)
(Superseded to 78806400)

Note: (105, 106, 108, 109)

$206.99

$

In Stock, only 1 left!

0

15

Gravely 07415600

Screw-Tapping 8-32 x .50 Hex Washer Head (105, 106, 108, 109)

Note: (105, 106, 108, 109)

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 08337000

Spring-Tension .047 x .438 x 1.45 (105, 106, 108, 109)

Note: (105, 106, 108, 109)

$5.99

$

In Stock, only 2 left!

0

33

Gravely 03657100

Switch- Double Pole N.O./N.O. (105, 106, 108, 109)

Note: (105, 106, 108, 109)

$9.49

$

In Stock, Qty 7

0

34

Gravely 04928900

Bracket, Brake Link (105, 106, 108, 109)

Note: (105, 106, 108, 109)

$

$

Not available

35

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5 (105, 106, 108, 109)
(Superseded to 05901716)

Note: (105, 106, 108, 109)

$0.99

$

In Stock, Qty 12

0

36

Gravely 06531000

Nut, Locking Nylon .25-20 (105, 106, 108, 109)
(Superseded to 06500832)

Note: (105, 106, 108, 109)

$4.99

$

In Stock, only 2 left!

0

37

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065 (105, 106, 108, 109)
(Superseded to 06401013)

Note: (105, 106, 108, 109)

$0.99

$

In Stock, Qty 20+

0
