988106 (HR 1548 FX) - Gravely Pro-Hydro 48" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki (SN: 003000 & Above) Parking Brake Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki

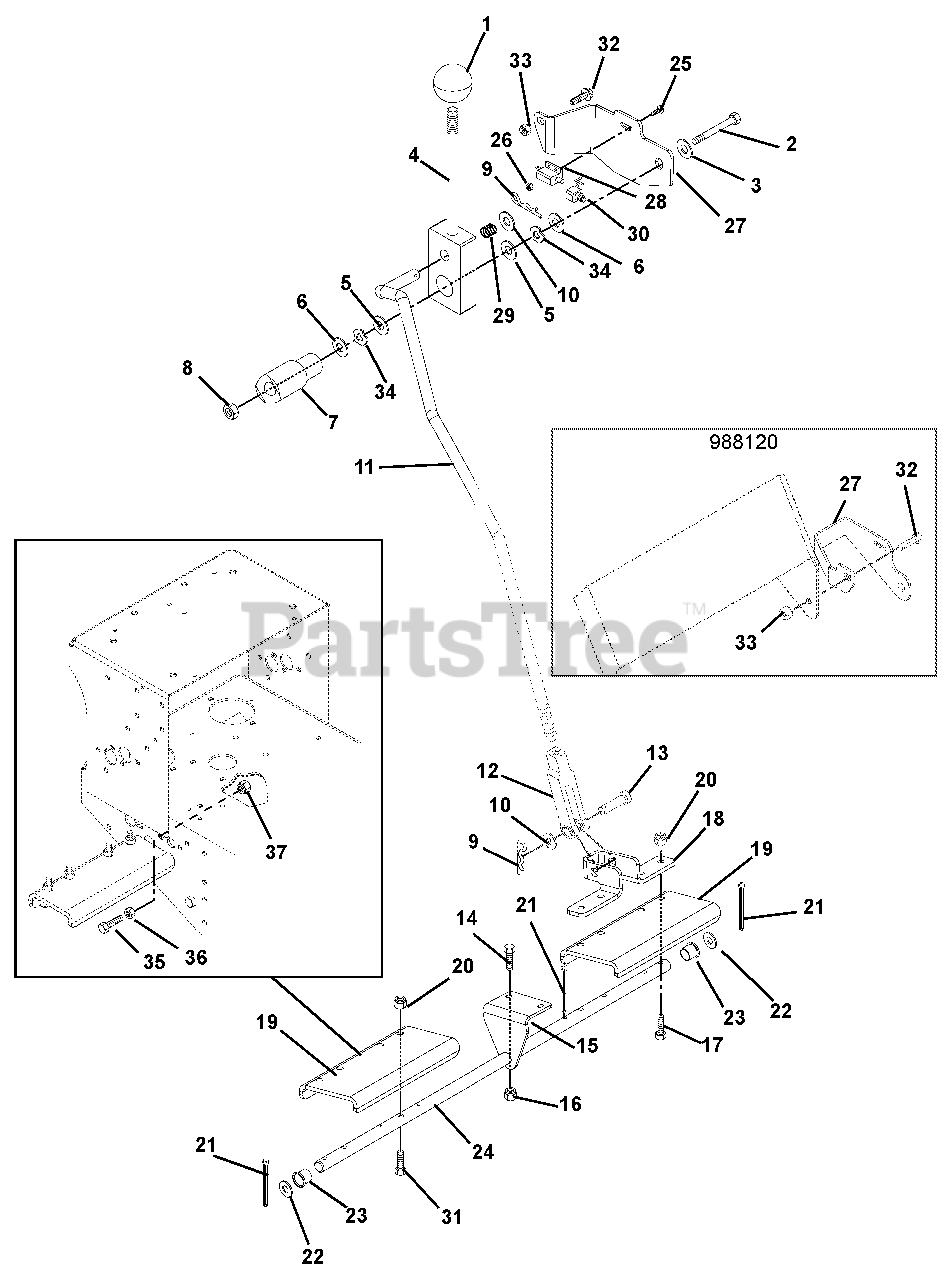

Parking Brake Parts Diagram

  • Title

1

Gravely 07533500

KNOB,BALL -BLACK 1.47" .375-16

$10.99

$

In Stock, Qty 6

0

2

Gravely 05976200

BLT-HEX .44-14X4.5 GR5 YWZC

$

$

Not available

3

Gravely 06441000

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06401202)

$3.49

$

In Stock, Qty 11

0

4

Gravely 04927400

WELDMENT- HANDLE

$

$

Not available

5

Gravely 06431600

WSHR-FL-NYL .760X1.25X.030

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, Qty 20+

0

7

Gravely 04927300

PIVOT, BRAKE

$

$

Not available

8

Gravely 039413

NUT-LK-NYL .44-14 YWZC
(Superseded to 06527500)

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 04927500

ROD, BRAKE

Note: (105, 106, 108, 109)

$69.99

$

Usually ships in 4-12 days

0

Gravely 04938200

ROD - BRAKE - HYDRO

Note: (120)

$

$

Not available

12

Gravely 018380

CLEVIS, .38-24 ADJ.
(Superseded to 08800400)

$11.99

$

Usually ships in 4-12 days

0

13

Gravely 06813300

PIN-CLEV .370X1.75

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 04927151

BRACKET, BRAKE SHAFT

$

$

Not available

16

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

17

Gravely 05952500

BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.99

$

In Stock, Qty 8

0

18

Gravely 04927751

BRAKE, ARM

$

$

Not available

19

Gravely 04927851

PAD, BRAKE
(Superseded to 03397151)

$49.99

$

Usually ships in 4-12 days

0

20

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

21

Gravely 06707100

PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 10

0

22

Gravely 06442800

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

23

Gravely 045787

BSHG-FLG .630X1.000X.625 NY
(Superseded to 05517400)

$7.49

$

Usually ships in 4-12 days

0

24

Gravely 04927600

BRAKE, SHAFT

$92.99

$

Usually ships in 4-12 days

0

25

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 11

0

26

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 04927951

BRACKET, PARKING BRAKE SWITCH

Note: (105, 106, 108, 109)

$

$

Not available

Gravely 04937751

BRACKET - BRAKE SWITCH

Note: (120)

$17.99

$

Usually ships in 4-12 days

0

28

Gravely 046219

SWITCH,INTERLOCK
(Superseded to 08828100)

$21.99

$

In Stock, only 1 left!

0

29

Gravely 08338800

SG-COMP .045X.600X.750 WLD7.5

$7.49

$

Usually ships in 4-12 days

0

30

Gravely 07534400

BOOT, RUBBER

$6.49

$

Usually ships in 4-12 days

0

31

Gravely 05947400

BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$2.49

$

In Stock, only 2 left!

0

32

Gravely 07049400

BLT-SERHFWH .25-20X.75 YWZC

Note: (105, 106, 108, 109)

$2.99

$

Usually ships in 4-12 days

0

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

Note: (120)

$1.99

$

In Stock, Qty 20+

0

33

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

Note: (105, 106, 108, 109)

$1.49

$

In Stock, Qty 15

0

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (120)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 09252000

WASHER-WAVE .760X1.120X.080

$3.99

$

Usually ships in 4-12 days

0

35

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

36

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0
