988107 (HE 1748 FL) - Gravely Pro-Hydro 48" Walk-Behind Mower, 17hp Kawasaki, Elect. Start (SN: 000101 - 001999) 44", 48" And 52" Belts, Idlers And Blades Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, 17hp Kawasaki, Elect. Start

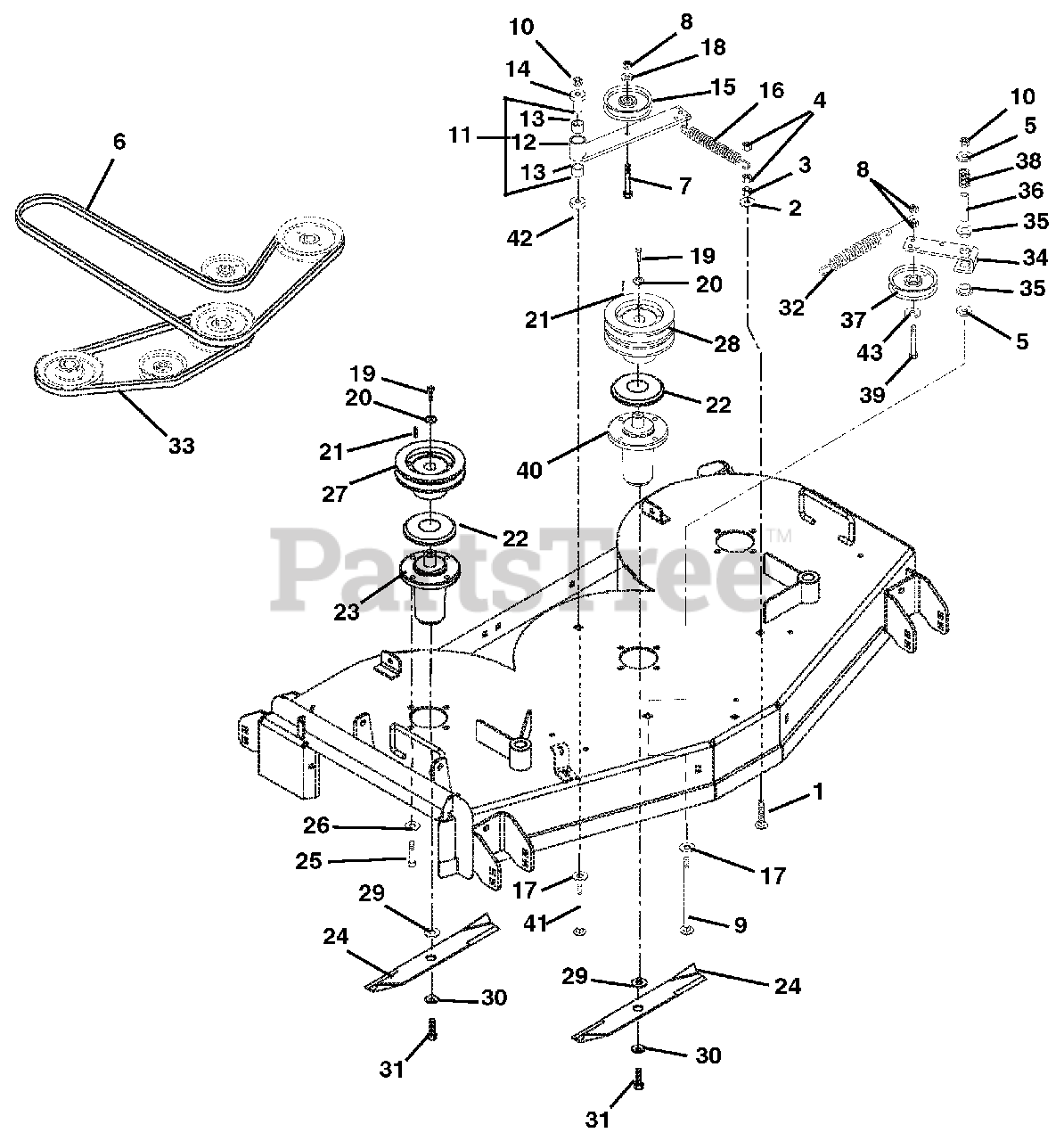

44", 48" And 52" Belts, Idlers And Blades Parts Diagram

  • Title

1

Gravely 06224200

BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$4.99

$

In Stock, Qty 20+

0

2

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 415543

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06441000)

$3.49

$

In Stock, Qty 11

0

6

Gravely 07240200

V-BELT, HB-WRAPPED

Note: (106, 107, 108)

$82.99

$

In Stock, Qty 7

0

Gravely 07240300

V-BELT, HB-WRAPPED

Note: (109, 113)

$104.99

$

Usually ships in 4-12 days

0

7

Gravely 06225400

BLT-RDHDSQNK .38-16X2.75 G5YZ
(Superseded to 06200316)

$4.99

$

In Stock, Qty 20+

0

8

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06225000

BLT-RDHDSQNK .50-13X3.50 G5YZ
(Superseded to 06200317)

$6.49

$

In Stock, Qty 20+

0

10

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

11

Gravely 09286500

ASSEMBLY - IDLER PIVOT ARM

Note: (Contains Items 12 & 13)

$167.99

$

Usually ships in 4-12 days

0

12

Gravely 09286451

WMT - IDLER PIVOT ARM

$174.99

$

In Stock, only 1 left!

0

13

Gravely 05435800

BRG, 1.00 X 1.12 X .75

$9.99

$

In Stock, Qty 20+

0

14

Gravely 07053100

BEARING, PEDESTAL
(Superseded to 07000031)

$84.99

$

In Stock, Qty 10

0

15

Gravely 07327800

IDLER-FLAT 4.00X.38 (2.00 W)

Note: (2.00 W)

$91.99

$

In Stock, Qty 18

0

16

Gravely 08336000

SPRING, EXTENSION
(Superseded to 08300728)

$28.99

$

In Stock, Qty 20+

0

17

Gravely 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, Qty 20+

0

18

Gravely 446470

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$2.99

$

In Stock, Qty 14

0

19

Gravely 05974500

BLT-HEX .38-16X1.00 YZ GR8
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

20

Gravely 00597000

WASHER, CUPPED SERRATED, .375
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

21

Gravely 06602200

KEY-SQ .25X1.0X.25 SAE 8630

$3.99

$

In Stock, Qty 13

0

22

Gravely 09238200

SLINGER, DUST

$17.99

$

In Stock, Qty 13

0

23

Gravely 59201000

ASM,MAINT FREE SPINDLE
(Superseded to 59114000)

$273.99

$

In Stock, Qty 14

0

24

Gravely 04919100

BLADE, MOWER (16.19")

Note: (106, 107, 108, 113)

$26.99

$

In Stock, Qty 20+

0

Gravely 04916400

BLADE, MOWER (18.00")

Note: (109)

$27.99

$

In Stock, Qty 19

0

Gravely 04920600

BLADE - MULCHING (16.25)
(Superseded to 05244100)

Note: (106, 107, 108, 113)

$27.99

$

In Stock, Qty 17

0

Gravely 04917900

BLADE - MULCHING (18.00")
(Superseded to 00273100)

Note: (109)

$26.99

$

In Stock, Qty 20+

0

25

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 09242500

WELDMENT, SPINDLE SHEAVE 5.00
(Superseded to 07331067)

$122.99

$

In Stock, Qty 5

0

28

Gravely 09253200

SHEAVE, DOUBLE (5.25")

Note: (5.25)

$64.99

$

In Stock, Qty 7

0

29

Gravely 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

$4.99

$

In Stock, Qty 20+

0

30

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

31

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.99

$

In Stock, Qty 20+

0

32

Gravely 08336100

SPRING, EXT
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

33

Gravely 07202900

V-BELT, 5L-RAW EDGE

Note: (106, 107, 108, 113)

$50.99

$

In Stock, Qty 6

0

Gravely 049028

V-BELT, HB-COGGED
(Superseded to 07222300)

Note: (109)

$63.99

$

In Stock, only 4 left!

0

34

Gravely 034120

ARM,IDLER PIVOT
(Superseded to 08905900)

$84.99

$

Usually ships in 4-12 days

0

35

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

$5.49

$

In Stock, Qty 15

0

36

Gravely 034119

SPACER .560X.750X2.437 ST
(Superseded to 08820500)

$19.99

$

In Stock, Qty 7

0

37

Gravely 07327600

V-IDLER, 4.00X.38

$39.99

$

In Stock, Qty 20+

0

38

Gravely 020444

SG-COMP .085X.80X1.00 WLD36
(Superseded to 08329100)

$14.99

$

In Stock, Qty 5

0

39

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

40

Gravely 59202600

ASM,MAINT FREE SPINDLE
(Superseded to 59225700)

Note: (Center)

$361.99

$

In Stock, Qty 20+

0

41

Gravely 06218600

BLT-RDHDSQNK .50-13X3.75 G5YZ

$8.49

$

In Stock, only 2 left!

0

42

Gravely 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.49

$

In Stock, Qty 20+

0

43

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0
