988107 (HE 1748 FL) - Gravely Pro-Hydro 48" Walk-Behind Mower, 17hp Kawasaki, Elect. Start (SN: 000101 - 001999) Frame And Handlebars Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, 17hp Kawasaki, Elect. Start

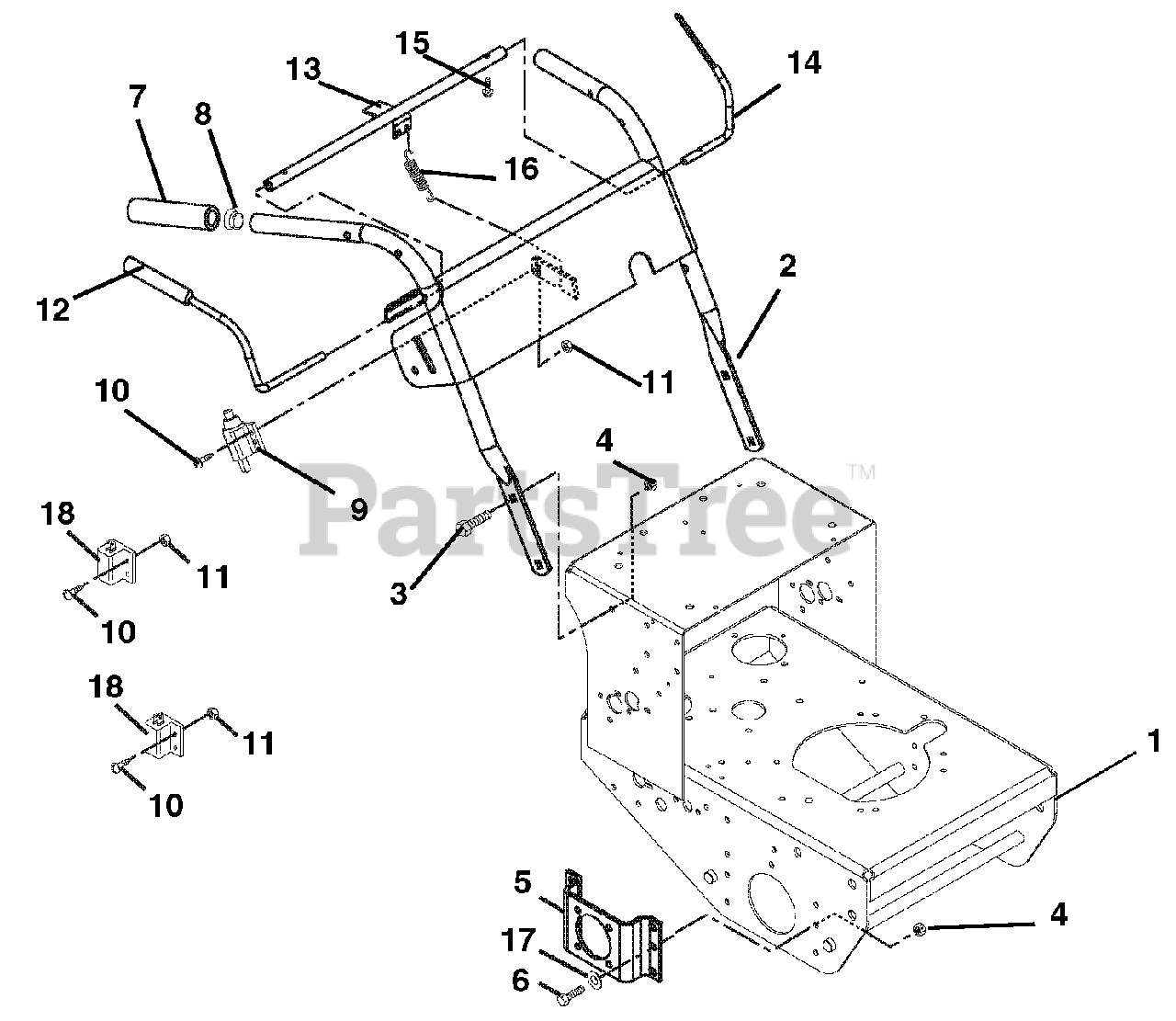

Frame And Handlebars Parts Diagram

  • Title

1

Gravely 58804200

KIT-FRAME W/DECALS

$

$

Not available

2

Gravely 58805600

KIT-HANDLEBAR W/DECALS HR15
(Superseded to 05356600)

Note: (105 - 107, 113, 312)

$

$

Not available

Gravely 58805700

KIT-HANDLEBAR W/DECALS HE17
(Superseded to 05356600)

Note: (108, 109)

$

$

Not available

3

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

5

Gravely 04926100

BRACKET, WHEEL MOTOR LH

Note: (105, 107, 108, 312)

$

$

Not available

Gravely 04931300

BRACKET, WHEEL MOTOR RH

Note: (105, 107, 108, 312)

$

$

Not available

Gravely 04929000

BRKT, WHEEL MOTOR LH

Note: (106, 109, 113)

$

$

Not available

Gravely 04929100

BRKT, WHEEL MOTOR RH

Note: (106, 109, 113)

$38.99

$

Usually ships in 4-12 days

0

6

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 04928800

GRIP, HANDLEBAR

$10.99

$

In Stock, only 4 left!

0

8

Gravely 07533300

CAPLUG, HANDLEBAR

$2.99

$

In Stock, only 1 left!

0

9

Gravely 03606600

SWITCH- DOUBLE POLE N.O./N.O.

Note: (105 - 109, 113, 312)

$17.99

$

In Stock, Qty 18

0

10

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

Note: (105 - 109, 113, 312)

$2.49

$

In Stock, Qty 11

0

11

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

Note: (105 - 109, 113, 312)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 04924100

LEVER, RH-OP
(Superseded to 78806400)

$237.99

$

Usually ships in 4-12 days

0

13

Gravely 04924000

WELDMENT, PIVOT TUBE
(Superseded to 78806400)

$237.99

$

Usually ships in 4-12 days

0

14

Gravely 04924200

LEVER, LH-OP
(Superseded to 78806400)

$237.99

$

Usually ships in 4-12 days

0

15

Gravely 07415600

SCR-TAP 8-32X.50 HWH TR YWZC

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 08337000

SPRING-EXT .047X.438X1.45

$6.49

$

In Stock, only 4 left!

0

17

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

Note: (105 - 109, 113, 312)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 03657100

SWITCH- SINGLE POLE N.O.

Note: (N.O.)

$9.99

$

In Stock, Qty 18

0
