988108 (HE 1748 FL) - Gravely Pro-Hydro 48" Walk-Behind Mower, 17hp Kawasaki, Elect. Start (SN: 000101 - 001999) 48" And 52" Floating Deck And Mower Frame Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, 17hp Kawasaki, Elect. Start

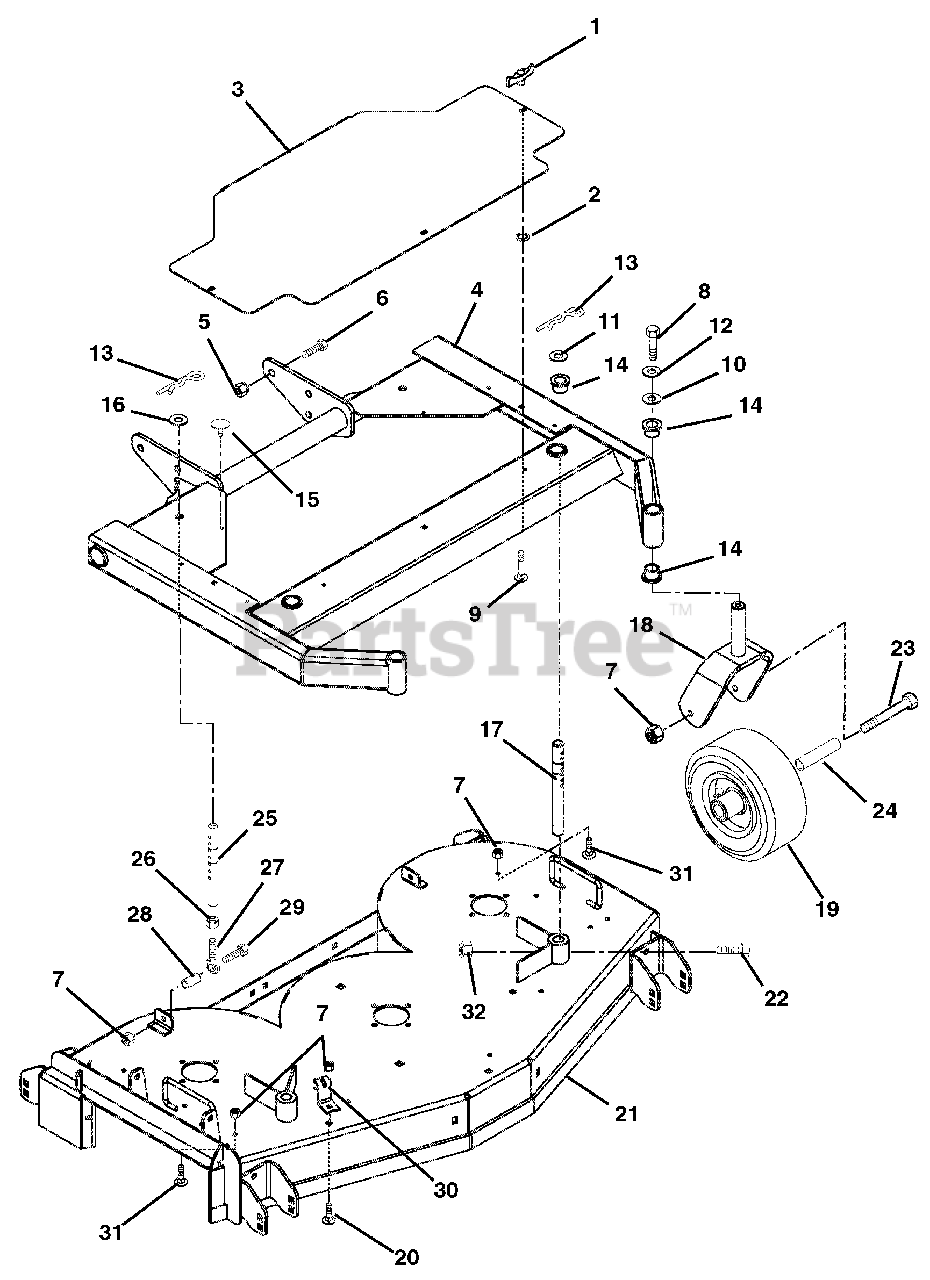

48" And 52" Floating Deck And Mower Frame Parts Diagram

  • Title

1

Gravely 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$4.99

$

In Stock, Qty 20+

0

2

Gravely 040380

NUT-PUSH .312
(Superseded to 06514900)

$1.49

$

In Stock, only 4 left!

0

3

Gravely 04921153

COVER- BELT PRO 48 FLOATING

$

$

Not available

4

Gravely 04921253

WMT-MOWER FRAME- 48" FLOAT

Note: (107, 108)

$

$

Not available

Gravely 04928353

WMT-MOWER FRAME 52" FLOATING

Note: (109)

$

$

Not available

5

Gravely 06540700

NUT-LK-NYL .625-11 YWZC

$5.49

$

In Stock, Qty 20+

0

6

Gravely 05968700

BLT-HEX .62-11X1.50 GR5 YWZC

$4.99

$

In Stock, Qty 9

0

7

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 06221800

BLT-RDHDSQNK .31-18X1.0 SHTYZ
(Superseded to 06200237)

$3.49

$

In Stock, only 2 left!

0

10

Gravely 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$4.99

$

In Stock, Qty 20+

0

11

Gravely 06444700

WSHR-FL-STL .890X1.500X.1196YZ
(Superseded to 06401207)

$5.49

$

In Stock, Qty 6

0

12

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06713300

PIN-HAIR-INT .17X.68X3.50 YWZC
(Superseded to 06700228)

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 05533600

BSHG-FLG 1.00X1.25X1.50X1.50EP
(Superseded to 05500934)

$8.49

$

In Stock, Qty 20+

0

15

Gravely 07503100

BUMPER GROMMET

$4.99

$

In Stock, Qty 14

0

16

Gravely 06442900

WSHR-FL-STL.688X1.75X.134 YWZ
(Superseded to 06401032)

$1.99

$

In Stock, Qty 12

0

17

Gravely 04920900

ROD- FRONT HEIGHT ADJUSTMENT

$90.99

$

Usually ships in 4-12 days

0

18

Gravely 04917053

WMT - CASTER FORK

$157.99

$

Usually ships in 4-12 days

0

19

Gravely 07157200

WHEEL 9 X 3.50 SEMI-PNEUMATIC
(Superseded to 07100931)

$158.99

$

In Stock, only 3 left!

0

20

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$2.49

$

In Stock, Qty 20+

0

21

Gravely 58804700

KIT-48" FL MOWER DECK W/DECALS

Note: (107, 108)

$

$

Not available

Gravely 58804800

KIT-52" FL MOWER DECK W/DECALS

Note: (109)

$

$

Not available

22

Gravely 05952700

BLT-HEX .25-20X2.25 GR8 YWZC
(Superseded to 05901638)

$4.99

$

In Stock, only 2 left!

0

23

Gravely 05925400

BLT-HEX .38-16X5.50 YWZC
(Superseded to 05982000)

$4.99

$

In Stock, only 1 left!

0

24

Gravely 04916900

BEARING .625 X .380 X 4.08

$76.99

$

Usually ships in 4-12 days

0

25

Gravely 04921000

ROD- REAR HEIGHT ADJUSTMENT

$

$

Not available

26

Gravely 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.99

$

In Stock, only 3 left!

0

27

Gravely 051425

ROD END, 3/8 RH
(Superseded to 08790600)

$63.99

$

Usually ships in 4-12 days

0

28

Gravely 05522100

BSHG-SLV .377X.624X.370

$5.99

$

Usually ships in 4-12 days

0

29

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$2.49

$

In Stock, Qty 13

0

30

Gravely 09245353

ANCHOR, SPRING (RED)

$44.99

$

Usually ships in 4-12 days

0

31

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$2.49

$

In Stock, Qty 20+

0

32

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.99

$

In Stock, Qty 20+

0
